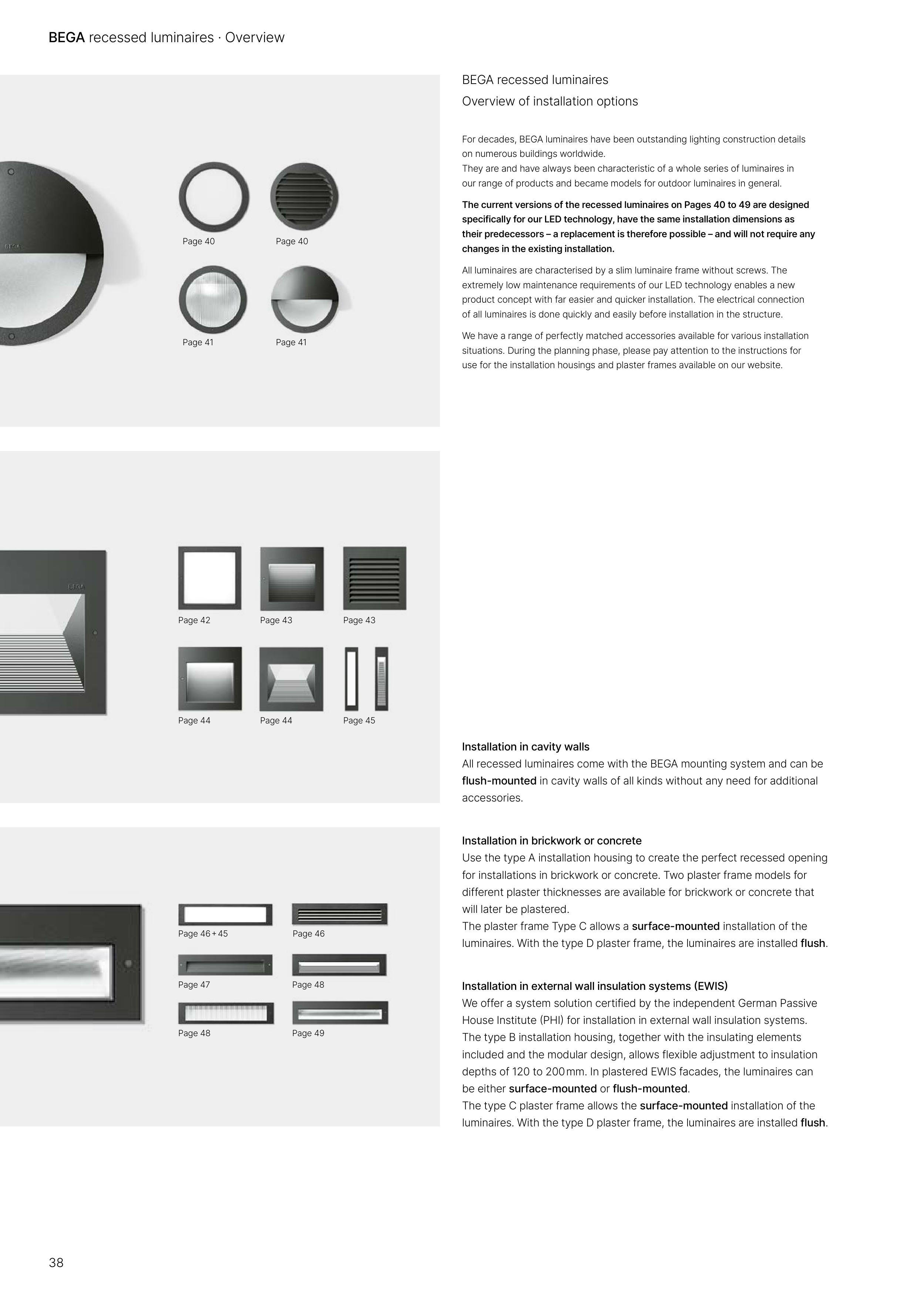

BEGA recessed luminaires
Overview of installation options
For decades, BEGA luminaires have been outstanding lighting construction details
on numerous buildings worldwide.
They are and have always been characteristic of a whole series of luminaires in
our range of products and became models for outdoor luminaires in general.
The current versions of the recessed luminaires on Pages 40 to 49 are designed
specifically for our LED technology, have the same installation dimensions as
their predecessors – a replacement is therefore possible – and will not require any
changes in the existing installation.
All luminaires are characterised by a slim luminaire frame without screws. The
extremely low maintenance requirements of our LED technology enables a new
product concept with far easier and quicker installation. The electrical connection
of all luminaires is done quickly and easily before installation in the structure.
We have a range of perfectly matched accessories available for various installation
situations. During the planning phase, please pay attention to the instructions for
use for the installation housings and plaster frames available on our website.
Installation in cavity walls
All recessed luminaires come with the BEGA mounting system and can be
flush-mounted in cavity walls of all kinds without any need for additional
accessories.
Installation in brickwork or concrete
Use the type A installation housing to create the perfect recessed opening
for installations in brickwork or concrete. Two plaster frame models for
different plaster thicknesses are available for brickwork or concrete that
will later be plastered.
The plaster frame Type C allows a surface-mounted installation of the
luminaires. With the type D plaster frame, the luminaires are installed flush.
Installation in external wall insulation systems (EWIS)
We offer a system solution certified by the independent German Passive
House Institute (PHI) for installation in external wall insulation systems.
The type B installation housing, together with the insulating elements
included and the modular design, allows flexible adjustment to insulation
depths of 120 to 200 mm. In plastered EWIS facades, the luminaires can
be either surface-mounted or flush-mounted.
The type C plaster frame allows the surface-mounted installation of the
luminaires. With the type D plaster frame, the luminaires are installed flush.
