A
B
Symmetrical narrow beam light distribution · BEGA Vortex Optics ®
Install. housing
Install. frame
LED
Controllable
β
A
B
24 300 18.3 W
1580 lm
DALI
34°
550 × 75
105
13 579
13 516
24 301 35.6 W
3255 lm
DALI
34°
1045 × 75
105
13 580
13 517
24 302 54.4 W
4790 lm
DALI
34°
1535 × 75
105
13 581
13 518
Symmetrical wide beam light distribution · BEGA Vortex Optics ®
Install. housing
Install. frame
LED
Controllable
β
A
B
24 303 18.3 W
2190 lm
DALI
55°
550 × 75
105
13 579
13 516
24 304 35.6 W
4380 lm
DALI
55°
1045 × 75
105
13 580
13 517
24 305 54.4 W
6955 lm
DALI
55°
1535 × 75
105
13 581
13 518
Asymmetrical light distribution · BEGA Vortex Optics ®
Install. housing
Install. frame
LED
Controllable
β
A
B
24 306 18.3 W
1980 lm
DALI
42/50°
550 × 75
105
13 579
13 516
24 307 35.6 W
4025 lm
DALI
42/50°
1045 × 75
105
13 580
13 517
24 308 54.4 W
6210 lm
DALI
42/50°
1535 × 75
105
13 581
13 518

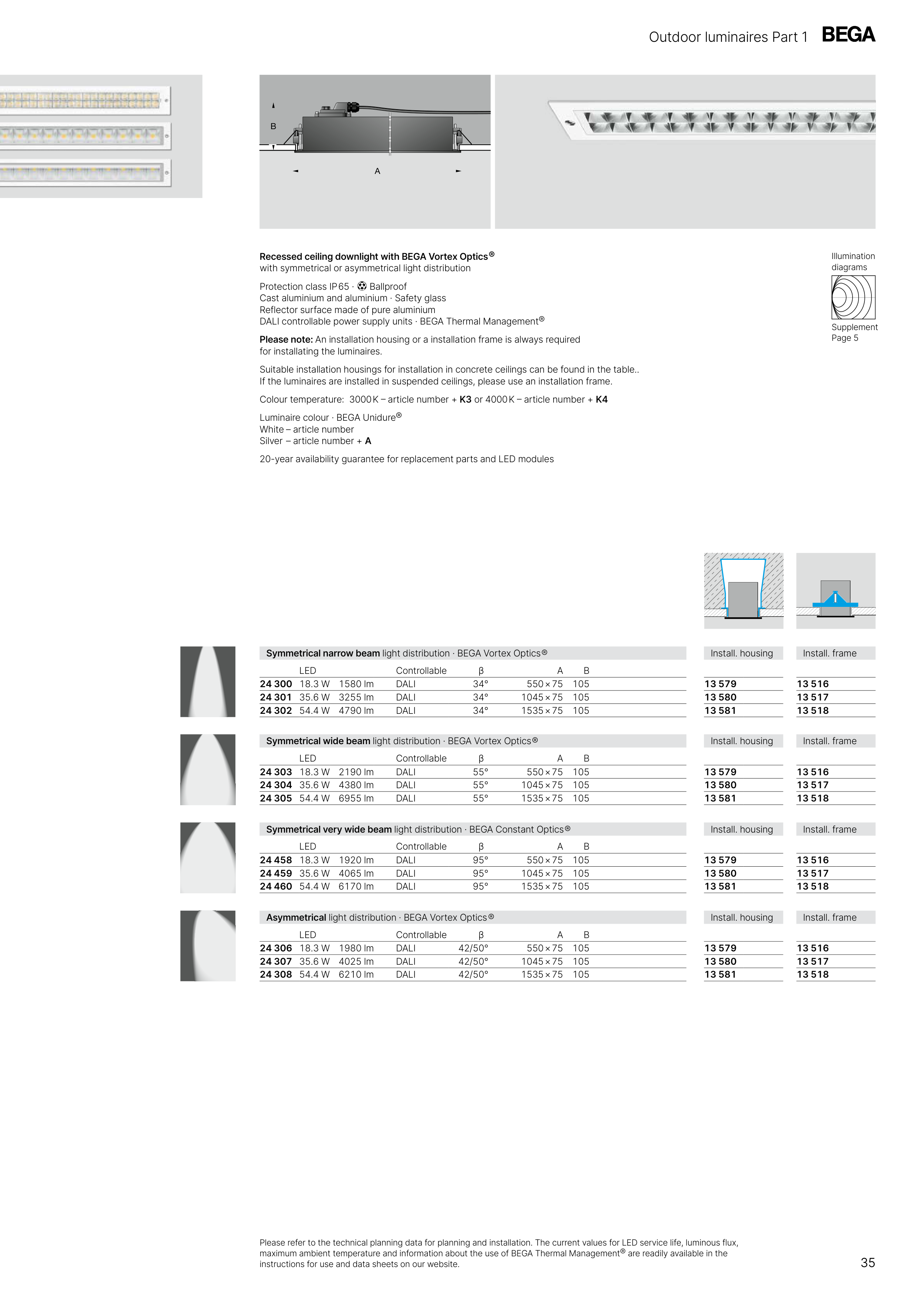

Recessed ceiling downlight with BEGA Vortex Optics ®
with symmetrical or asymmetrical light distribution
Protection class IP 65 · Ballproof
Cast aluminium and aluminium · Safety glass
Reflector surface made of pure aluminium
DALI controllable power supply units · BEGA Thermal Management®
Please note: An installation housing or a installation frame is always required
for installating the luminaires.
Suitable installation housings for installation in concrete ceilings can be found in the table..
If the luminaires are installed in suspended ceilings, please use an installation frame.
Colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
White – article number
Silver – article number + A
20-year availability guarantee for replacement parts and LED modules
Symmetrical very wide beam light distribution · BEGA Constant Optics ®
Install. housing
Install. frame
LED
Controllable
β
A
B
24 458 18.3 W
1920 lm
DALI
95°
550 × 75
105
13 579
13 516
24 459 35.6 W
4065 lm
DALI
95°
1045 × 75
105
13 580
13 517
24 460 54.4 W
6170 lm
DALI
95°
1535 × 75
105
13 581
13 518
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management® are readily available in the
instructions for use and data sheets on our website.
Outdoor luminaires Part 1
Supplement
Page 5
