A
B

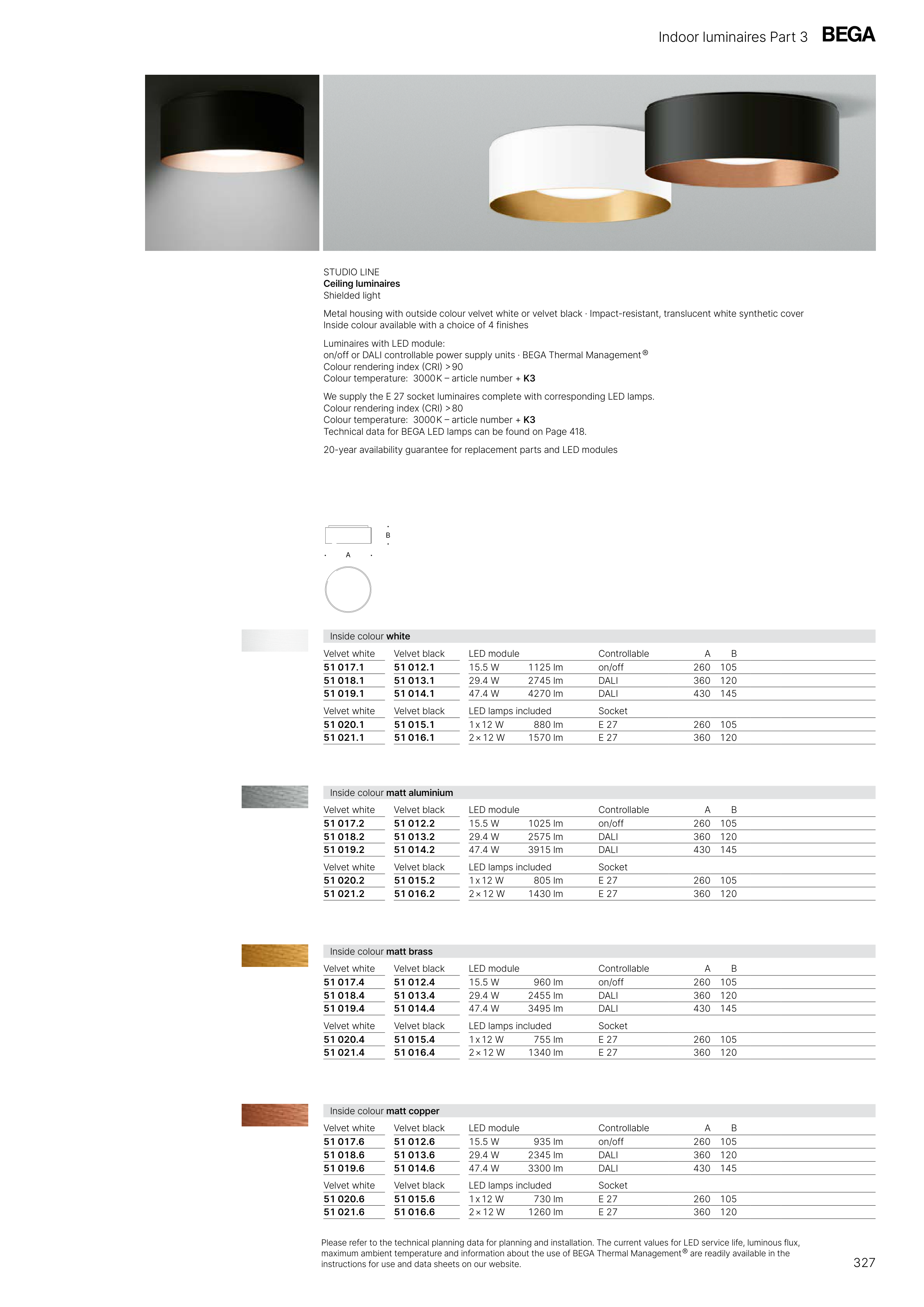

STUDIO LINE
Ceiling luminaires
Shielded light
Metal housing with outside colour velvet white or velvet black · Impact-resistant, translucent white synthetic cover
Inside colour available with a choice of 4 finishes
Luminaires with LED module:
on/off or DALI controllable power supply units · BEGA Thermal Management ®
Colour rendering index (CRI) > 90
Colour temperature: 3000 K – article number + K3
We supply the E 27 socket luminaires complete with corresponding LED lamps.
Colour rendering index (CRI) > 80
Colour temperature: 3000 K – article number + K3
Technical data for BEGA LED lamps can be found on Page 418.
20-year availability guarantee for replacement parts and LED modules
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management ® are readily available in the
instructions for use and data sheets on our website.
Indoor luminaires Part 3
Inside colour matt aluminium
Velvet white
Velvet black
LED module
Controllable
A
B
51 017.2
51 012.2
15.5 W
1025 lm
on/off
260
105
51 018.2
51 013.2
29.4 W
2575 lm
DALI
360
120
51 019.2
51 014.2
47.4 W
3915 lm
DALI
430
145
Velvet white
Velvet black
LED lamps included
Socket
51 020.2
51 015.2
1 x 12 W
805 lm
E 27
260
105
51 021.2
51 016.2
2 × 12 W
1430 lm
E 27
360
120
Inside colour matt brass
Velvet white
Velvet black
LED module
Controllable
A
B
51 017.4
51 012.4
15.5 W
960 lm
on/off
260
105
51 018.4
51 013.4
29.4 W
2455 lm
DALI
360
120
51 019.4
51 014.4
47.4 W
3495 lm
DALI
430
145
Velvet white
Velvet black
LED lamps included
Socket
51 020.4
51 015.4
1 x 12 W
755 lm
E 27
260
105
51 021.4
51 016.4
2 × 12 W
1340 lm
E 27
360
120
Inside colour matt copper
Velvet white
Velvet black
LED module
Controllable
A
B
51 017.6
51 012.6
15.5 W
935 lm
on/off
260
105
51 018.6
51 013.6
29.4 W
2345 lm
DALI
360
120
51 019.6
51 014.6
47.4 W
3300 lm
DALI
430
145
Velvet white
Velvet black
LED lamps included
Socket
51 020.6
51 015.6
1 x 12 W
730 lm
E 27
260
105
51 021.6
51 016.6
2 × 12 W
1260 lm
E 27
360
120
Inside colour white
Velvet white
Velvet black
LED module
Controllable
A
B
51 017.1
51 012.1
15.5 W
1125 lm
on/off
260
105
51 018.1
51 013.1
29.4 W
2745 lm
DALI
360
120
51 019.1
51 014.1
47.4 W
4270 lm
DALI
430
145
Velvet white
Velvet black
LED lamps included
Socket
51 020.1
51 015.1
1 x 12 W
880 lm
E 27
260
105
51 021.1
51 016.1
2 × 12 W
1570 lm
E 27
360
120
327
