B
A
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management ® are readily available in the
instructions for use and data sheets on our website.

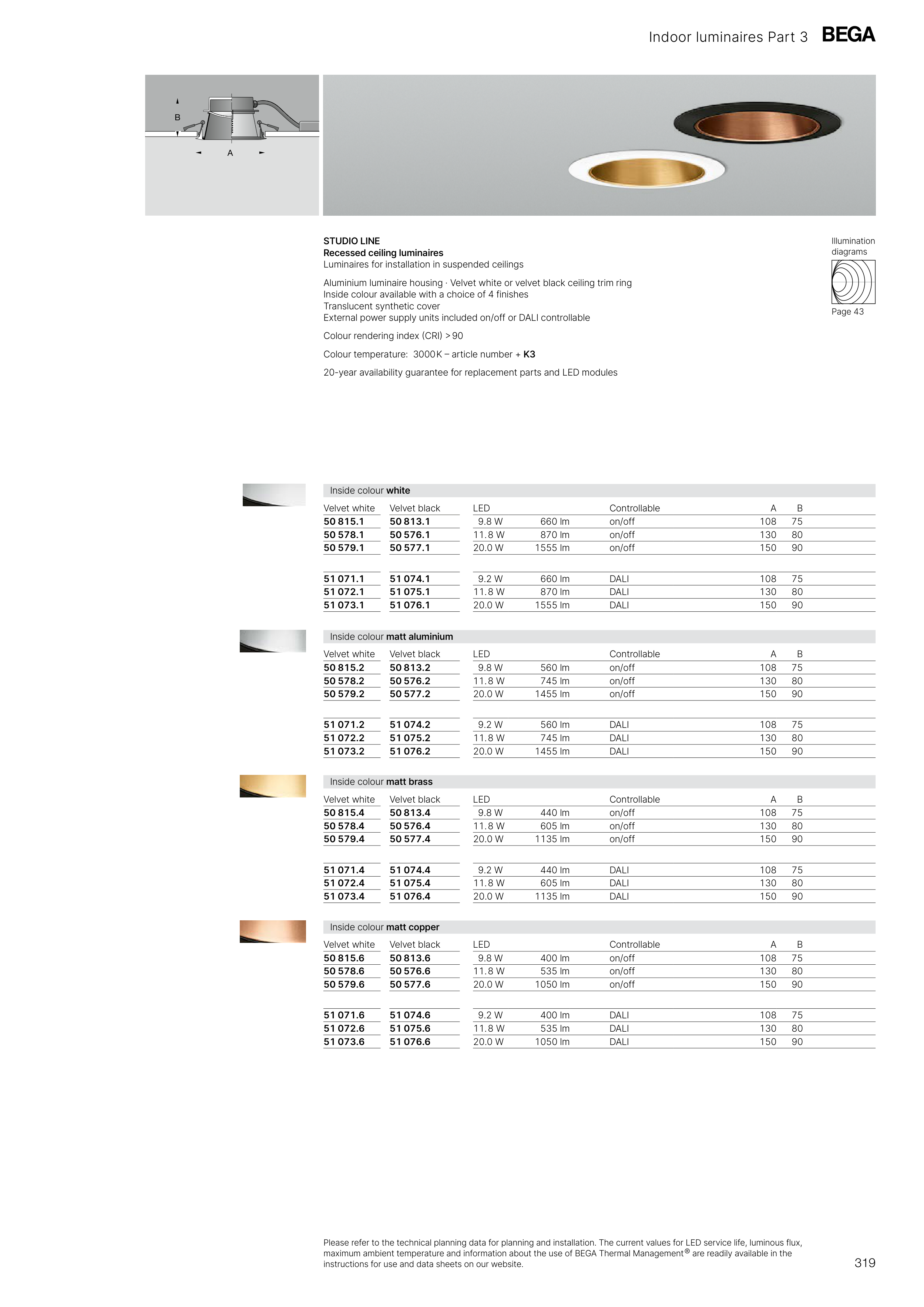

Indoor luminaires Part 3
STUDIO LINE
Recessed ceiling luminaires
Luminaires for installation in suspended ceilings
Aluminium luminaire housing · Velvet white or velvet black ceiling trim ring
Inside colour available with a choice of 4 finishes
Translucent synthetic cover
External power supply units included on/off or DALI controllable
Colour rendering index (CRI) > 90
Colour temperature: 3000 K – article number + K3
20-year availability guarantee for replacement parts and LED modules
Inside colour matt aluminium
Velvet white
Velvet black
LED
Controllable
A
B
50 815.2
50 813.2
9.8 W
560 lm
on/off
108
75
50 578.2
50 576.2
11.8 W
745 lm
on/off
130
80
50 579.2
50 577.2
20.0 W
1455 lm
on/off
150
90
51 071.2
51 074.2
9.2 W
560 lm
DALI
108
75
51 072.2
51 075.2
11.8 W
745 lm
DALI
130
80
51 073.2
51 076.2
20.0 W
1455 lm
DALI
150
90
Inside colour matt brass
Velvet white
Velvet black
LED
Controllable
A
B
50 815.4
50 813.4
9.8 W
440 lm
on/off
108
75
50 578.4
50 576.4
11.8 W
605 lm
on/off
130
80
50 579.4
50 577.4
20.0 W
1135 lm
on/off
150
90
51 071.4
51 074.4
9.2 W
440 lm
DALI
108
75
51 072.4
51 075.4
11.8 W
605 lm
DALI
130
80
51 073.4
51 076.4
20.0 W
1135 lm
DALI
150
90
Inside colour matt copper
Velvet white
Velvet black
LED
Controllable
A
B
50 815.6
50 813.6
9.8 W
400 lm
on/off
108
75
50 578.6
50 576.6
11.8 W
535 lm
on/off
130
80
50 579.6
50 577.6
20.0 W
1050 lm
on/off
150
90
51 071.6
51 074.6
9.2 W
400 lm
DALI
108
75
51 072.6
51 075.6
11.8 W
535 lm
DALI
130
80
51 073.6
51 076.6
20.0 W
1050 lm
DALI
150
90
Inside colour white
Velvet white
Velvet black
LED
Controllable
A
B
50 815.1
50 813.1
9.8 W
660 lm
on/off
108
75
50 578.1
50 576.1
11.8 W
870 lm
on/off
130
80
50 579.1
50 577.1
20.0 W
1555 lm
on/off
150
90
51 071.1
51 074.1
9.2 W
660 lm
DALI
108
75
51 072.1
51 075.1
11.8 W
870 lm
DALI
130
80
51 073.1
51 076.1
20.0 W
1555 lm
DALI
150
90
Page 43
Illumination
diagrams
319
