A
B
A
B
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management ® are readily available in the
instructions for use and data sheets on our website.

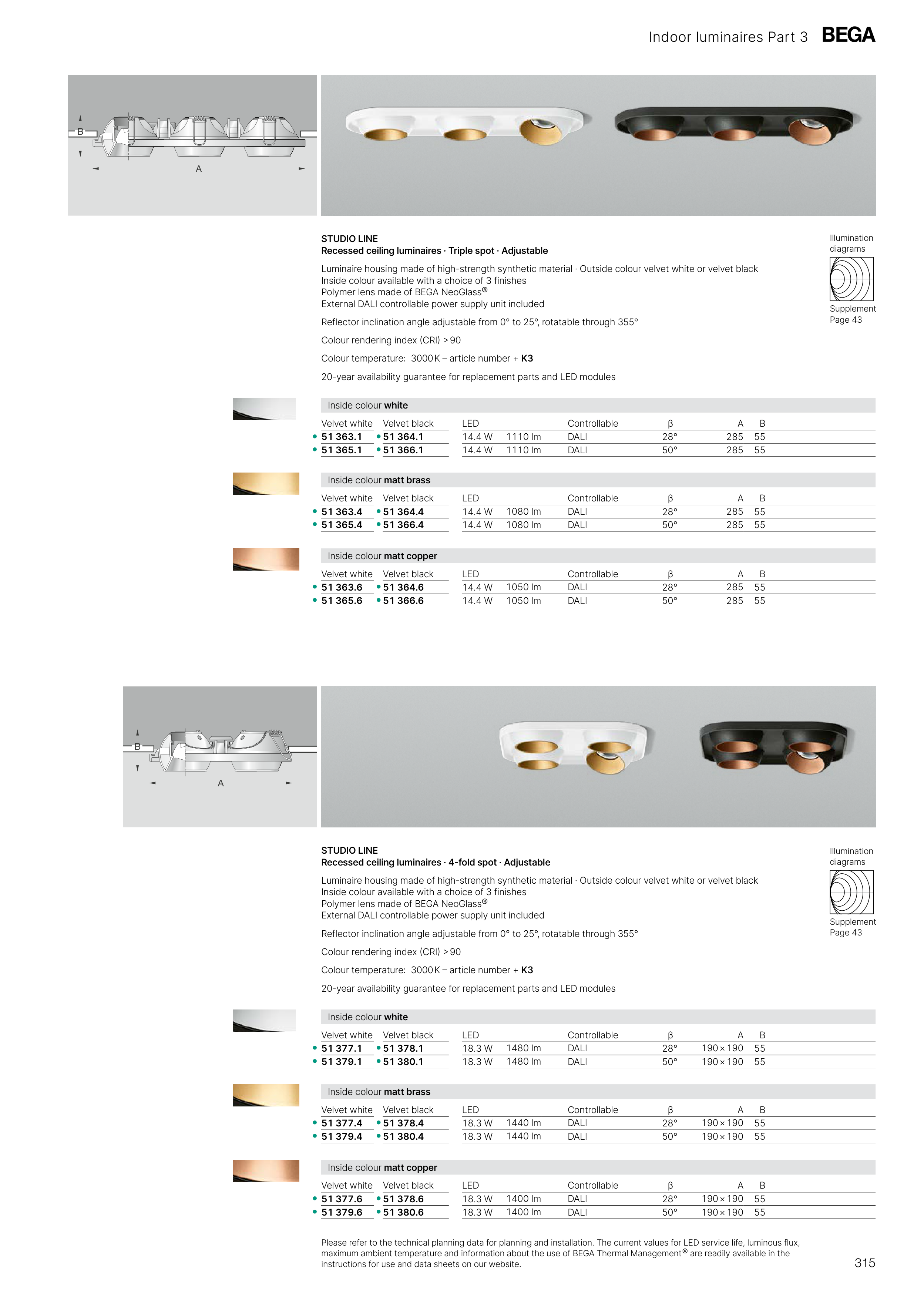

Indoor luminaires Part 3
STUDIO LINE
Recessed ceiling luminaires · Triple spot · Adjustable
Luminaire housing made of high-strength synthetic material · Outside colour velvet white or velvet black
Inside colour available with a choice of 3 finishes
Polymer lens made of BEGA NeoGlass®
External DALI controllable power supply unit included
Reflector inclination angle adjustable from 0° to 25°, rotatable through 355°
Colour rendering index (CRI) > 90
Colour temperature: 3000 K – article number + K3
20-year availability guarantee for replacement parts and LED modules
Inside colour matt brass
Velvet white
Velvet black
LED
Controllable
β
A
B
• 51 363.4
• 51 364.4
14.4 W
1080 lm
DALI
28°
285
55
• 51 365.4
• 51 366.4
14.4 W
1080 lm
DALI
50°
285
55
Inside colour white
Velvet white
Velvet black
LED
Controllable
β
A
B
• 51 363.1
• 51 364.1
14.4 W
1110 lm
DALI
28°
285
55
• 51 365.1
• 51 366.1
14.4 W
1110 lm
DALI
50°
285
55
Inside colour matt copper
Velvet white
Velvet black
LED
Controllable
β
A
B
• 51 363.6
• 51 364.6
14.4 W
1050 lm
DALI
28°
285
55
• 51 365.6
• 51 366.6
14.4 W
1050 lm
DALI
50°
285
55
STUDIO LINE
Recessed ceiling luminaires · 4-fold spot · Adjustable
Luminaire housing made of high-strength synthetic material · Outside colour velvet white or velvet black
Inside colour available with a choice of 3 finishes
Polymer lens made of BEGA NeoGlass®
External DALI controllable power supply unit included
Reflector inclination angle adjustable from 0° to 25°, rotatable through 355°
Colour rendering index (CRI) > 90
Colour temperature: 3000 K – article number + K3
20-year availability guarantee for replacement parts and LED modules
Inside colour matt brass
Velvet white
Velvet black
LED
Controllable
β
A
B
• 51 377.4
• 51 378.4
18.3 W
1440 lm
DALI
28°
190 × 190
55
• 51 379.4
• 51 380.4
18.3 W
1440 lm
DALI
50°
190 × 190
55
Inside colour white
Velvet white
Velvet black
LED
Controllable
β
A
B
• 51 377.1
• 51 378.1
18.3 W
1480 lm
DALI
28°
190 × 190
55
• 51 379.1
• 51 380.1
18.3 W
1480 lm
DALI
50°
190 × 190
55
Inside colour matt copper
Velvet white
Velvet black
LED
Controllable
β
A
B
• 51 377.6
• 51 378.6
18.3 W
1400 lm
DALI
28°
190 × 190
55
• 51 379.6
• 51 380.6
18.3 W
1400 lm
DALI
50°
190 × 190
55
Supplement
Page 43
Illumination
diagrams
Supplement
Page 43
Illumination
diagrams
315
