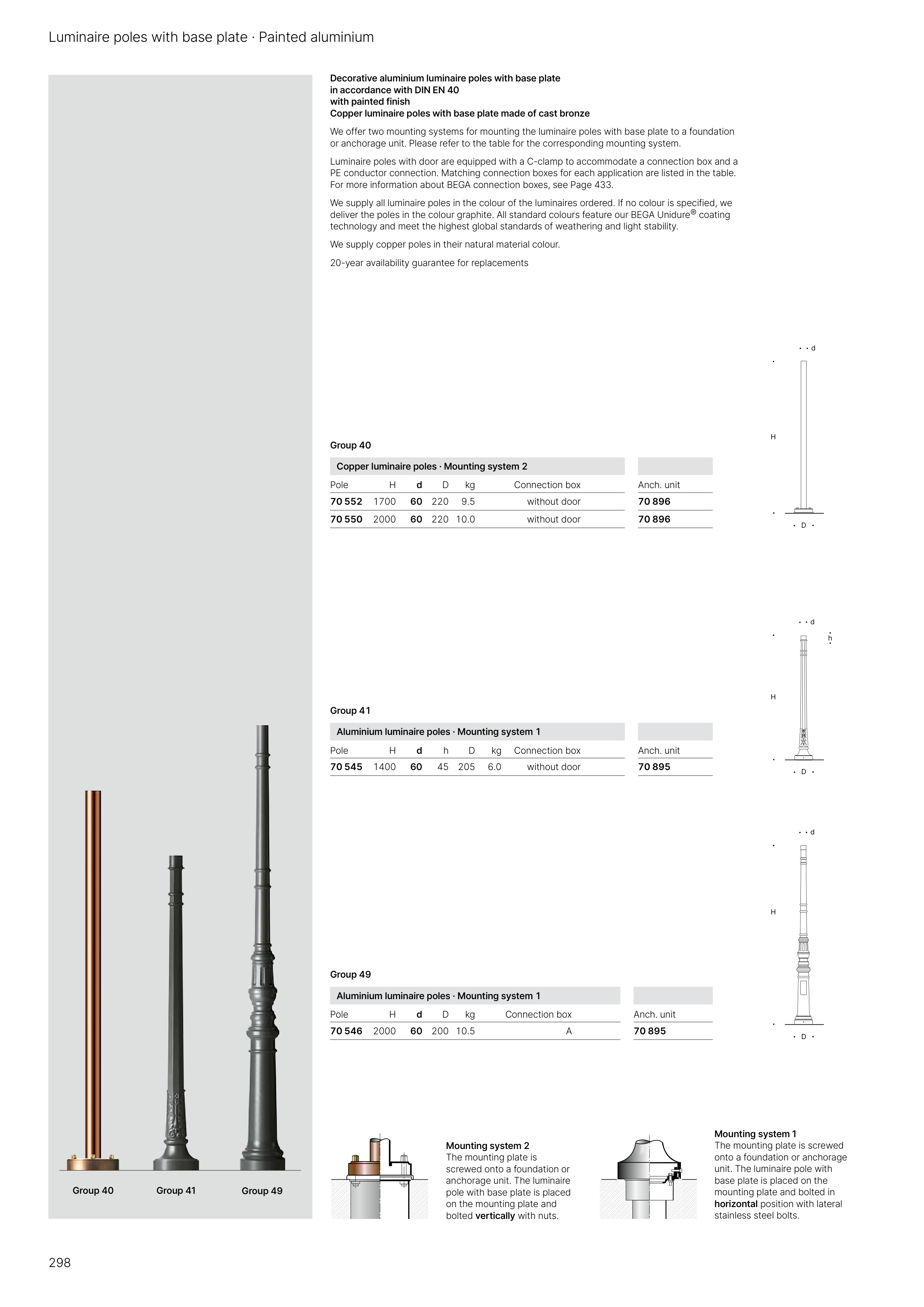

Luminaire poles with base plate · Painted aluminium
Group 40
Copper luminaire poles · Mounting system 2
Pole
H
d
D
kg
Connection box
Anch. unit
70 552
1700
60
220
9.5
without door
70 896
70 550
2000
60
220 10.0
without door
70 896
Group 41
Aluminium luminaire poles · Mounting system 1
Pole
H
d
h
D
kg
Connection box
Anch. unit
70 545
1400
60
45
205
6.0
without door
70 895
Decorative aluminium luminaire poles with base plate
in accordance with DIN EN 40
with painted finish
Copper luminaire poles with base plate made of cast bronze
We offer two mounting systems for mounting the luminaire poles with base plate to a foundation
or anchorage unit. Please refer to the table for the corresponding mounting system.
Luminaire poles with door are equipped with a C-clamp to accommodate a connection box and a
PE conductor connection. Matching connection boxes for each application are listed in the table.
For more information about BEGA connection boxes, see Page 433.
We supply all luminaire poles in the colour of the luminaires ordered. If no colour is specified, we
deliver the poles in the colour graphite. All standard colours feature our BEGA Unidure® coating
technology and meet the highest global standards of weathering and light stability.
We supply copper poles in their natural material colour.
20-year availability guarantee for replacements
Group 49
Group 49
Aluminium luminaire poles · Mounting system 1
Pole
H
d
D
kg
Connection box
Anch. unit
70 546
2000
60
200 10.5
A
70 895
Mounting system 2
The mounting plate is
screwed onto a foundation or
anchorage unit. The luminaire
pole with base plate is placed
on the mounting plate and
bolted vertically with nuts.
Mounting system 1
The mounting plate is screwed
onto a foundation or anchorage
unit. The luminaire pole with
base plate is placed on the
mounting plate and bolted in
horizontal position with lateral
stainless steel bolts.
Group 40
Group 41
