d
Ø
H
E
d
Ø
H
E
Group 63
Group 62
* Reinforced version
Group 62
Conical steel luminaire poles · Hot-dip galvanised
Pole
H
d
Ø
E
kg
Connection box
70 800
2500
60
115
800
25.0
A · B
70 801
3000
60
115
800
28.0
A · B
70 802
3500
60
115
800
35.0
A · B
70 803
4000
60
115
800
38.0
A · B
70 811
3000
76
115
800
31.0
A · B
70 815
3500
76
115
800
36.0
A · B
70 804
4000
76
135
800
42.0
B · C
70 817
4500
76
135
800
46.0
B · C
70 805
5000
76
135
800
52.0
B · C
70 814* 5000
76
135
800
56.0
B · C
70 806
6000
76
140
1000
68.0
B · C
70 816* 6000
76
140
1000
70.0
B · C
70 807
7000
76
160
1200
96.0
B · C
70 808
8000
76
170
1200
119.0
B · C
70 809
9000
76
195
1500
151.0
B · C
Group 63
Cylindrical steel luminaire poles, stepped pole base · Hot-dip galvanised
Pole
H
d
Ø
E
kg
Connection box
71 201
4000
76
135
800
38.0
B · C
71 203
5000
76
135
800
46.0
B · C
71 205
6000
76
135
1000
60.0
B · C

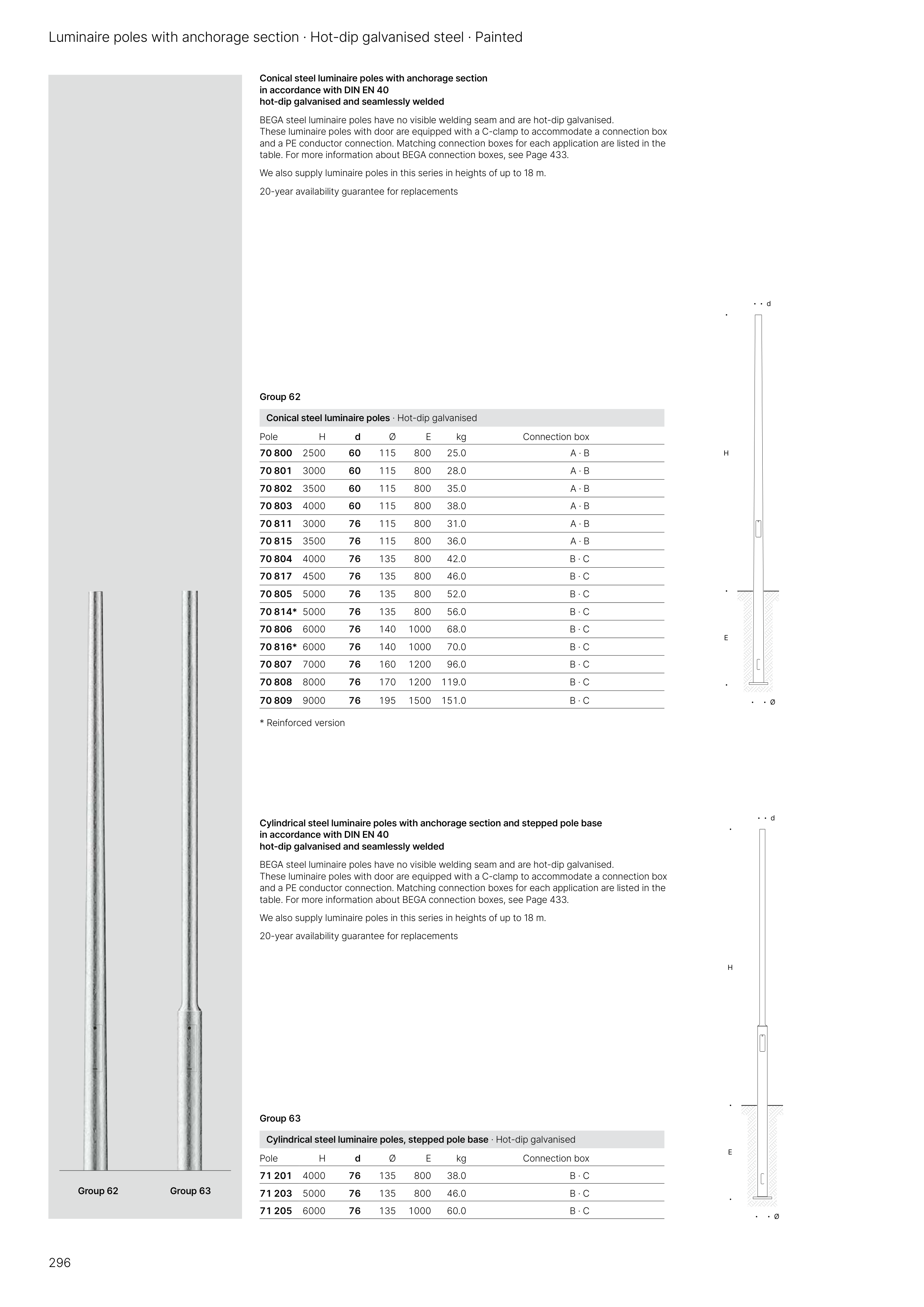

Luminaire poles with anchorage section · Hot-dip galvanised steel · Painted
Conical steel luminaire poles with anchorage section
in accordance with DIN EN 40
hot-dip galvanised and seamlessly welded
BEGA steel luminaire poles have no visible welding seam and are hot-dip galvanised.
These luminaire poles with door are equipped with a C-clamp to accommodate a connection box
and a PE conductor connection. Matching connection boxes for each application are listed in the
table. For more information about BEGA connection boxes, see Page 433.
We also supply luminaire poles in this series in heights of up to 18 m.
20-year availability guarantee for replacements
Cylindrical steel luminaire poles with anchorage section and stepped pole base
in accordance with DIN EN 40
hot-dip galvanised and seamlessly welded
BEGA steel luminaire poles have no visible welding seam and are hot-dip galvanised.
These luminaire poles with door are equipped with a C-clamp to accommodate a connection box
and a PE conductor connection. Matching connection boxes for each application are listed in the
table. For more information about BEGA connection boxes, see Page 433.
We also supply luminaire poles in this series in heights of up to 18 m.
20-year availability guarantee for replacements
296
