H
h
d
Ø
D
H
d
Ø
D
Group 17
Group 16
Group 16
Cylindrical wooden luminaire poles · Mounting system 2
Pole
H
d
h
Ø
D
kg
Connection box
Anch. unit
71 196
4000
76
70
135
340 32.0
B · C
70 899
71 197
5000
76
70
135
340 38.0
B · C
70 899
71 198
6000
76
70
135
340 50.0
B · C
70 899
Group 17
Conical wooden luminaire poles · Mounting system 2
Pole
H
d
Ø
D
kg
Connection box
Anch. unit
71 193
4000
76
135
340 26.0
B · C
70 899
71 194
5000
76
135
340 31.0
B · C
70 899
71 195
6000
76
135
340 37.0
B · C
70 899

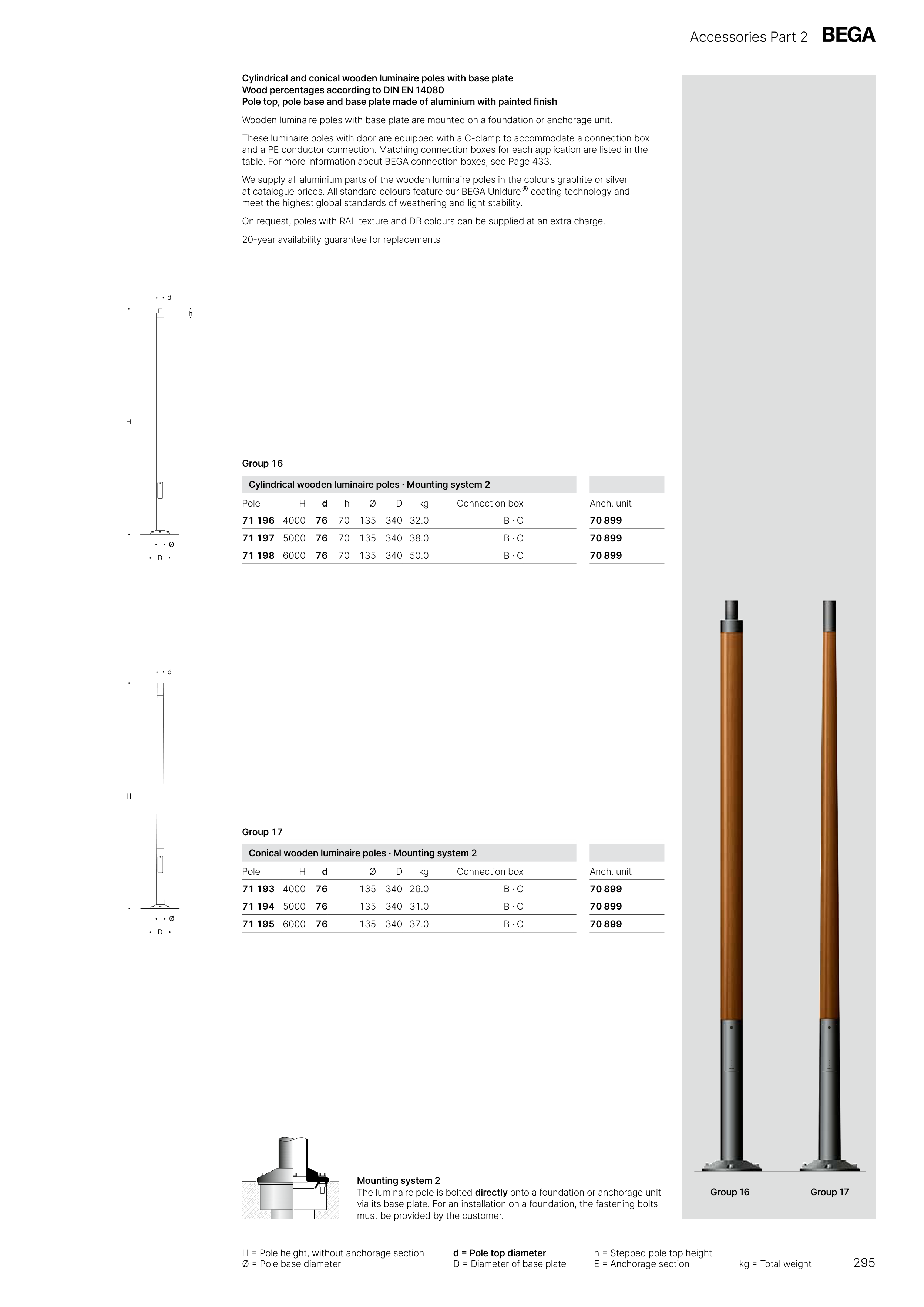

Cylindrical and conical wooden luminaire poles with base plate
Wood percentages according to DIN EN 14080
Pole top, pole base and base plate made of aluminium with painted finish
Wooden luminaire poles with base plate are mounted on a foundation or anchorage unit.
These luminaire poles with door are equipped with a C-clamp to accommodate a connection box
and a PE conductor connection. Matching connection boxes for each application are listed in the
table. For more information about BEGA connection boxes, see Page 433.
We supply all aluminium parts of the wooden luminaire poles in the colours graphite or silver
at catalogue prices. All standard colours feature our BEGA Unidure ® coating technology and
meet the highest global standards of weathering and light stability.
On request, poles with RAL texture and DB colours can be supplied at an extra charge.
20-year availability guarantee for replacements
Mounting system 2
The luminaire pole is bolted directly onto a foundation or anchorage unit
via its base plate. For an installation on a foundation, the fastening bolts
must be provided by the customer.
Accessories Part 2
H = Pole height, without anchorage section
d = Pole top diameter
h = Stepped pole top height
Ø = Pole base diameter
D = Diameter of base plate
E = Anchorage section
kg = Total weight
295
