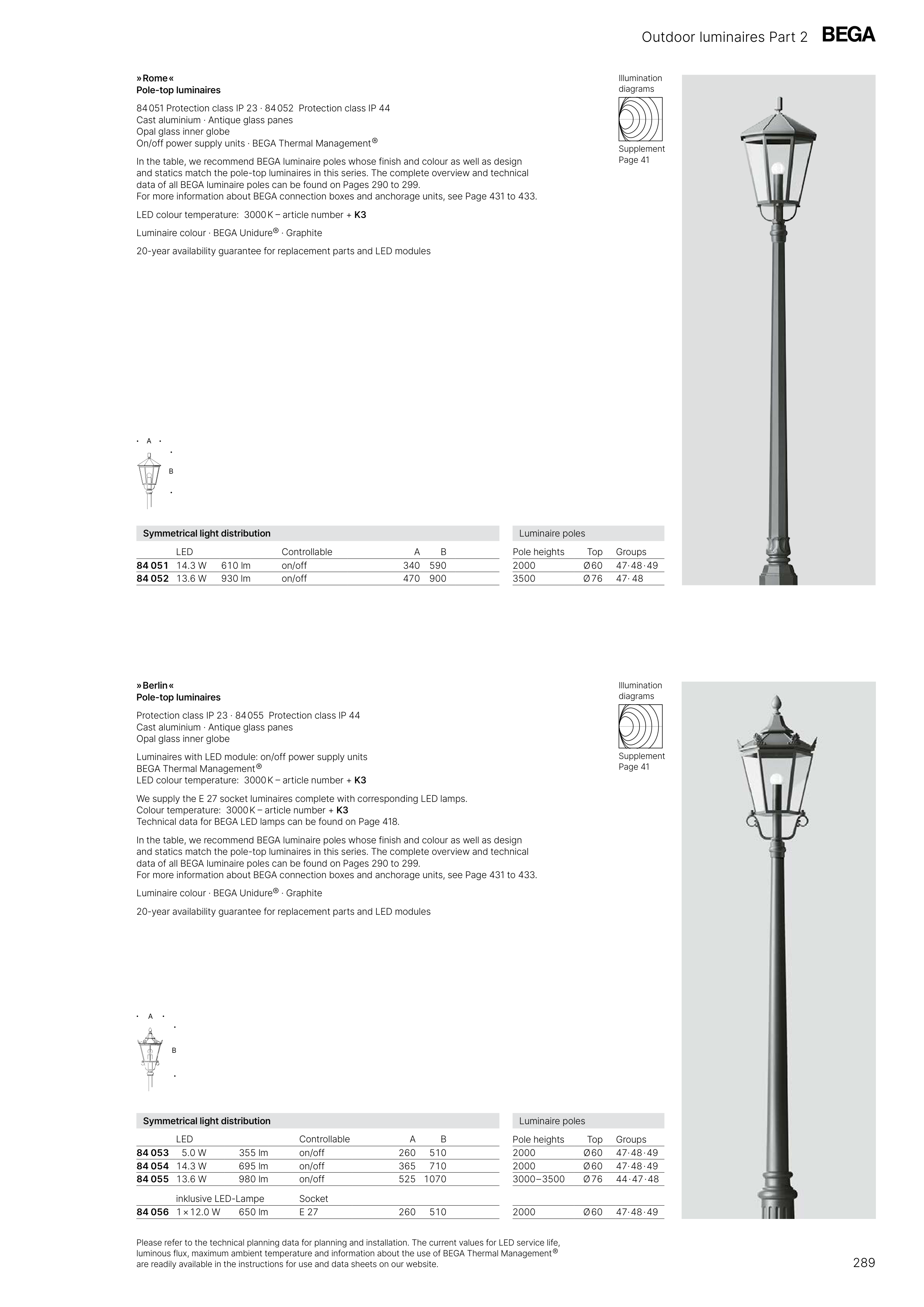

» Rome «
Pole-top luminaires
84 051 Protection class IP 23 · 84 052 Protection class IP 44
Cast aluminium · Antique glass panes
Opal glass inner globe
On/off power supply units · BEGA Thermal Management ®
In the table, we recommend BEGA luminaire poles whose finish and colour as well as design
and statics match the pole-top luminaires in this series. The complete overview and technical
data of all BEGA luminaire poles can be found on Pages 290 to 299.
For more information about BEGA connection boxes and anchorage units, see Page 431 to 433.
LED colour temperature: 3000 K – article number + K3
Luminaire colour · BEGA Unidure® · Graphite
20-year availability guarantee for replacement parts and LED modules
Symmetrical light distribution
Luminaire poles
LED
Controllable
A
B
Pole heights
Top
Groups
84 051 14.3 W
610 lm
on/off
340
590
2000
Ø 60
47· 48 · 49
84 052 13.6 W
930 lm
on/off
470
900
3500
Ø 76
47· 48
Symmetrical light distribution
Luminaire poles
LED
Controllable
A
B
Pole heights
Top
Groups
84 053 5.0 W
355 lm
on/off
260
510
2000
Ø 60
47· 48 · 49
84 054 14.3 W
695 lm
on/off
365
710
2000
Ø 60
47· 48 · 49
84 055 13.6 W
980 lm
on/off
525
1070
3000 – 3500
Ø 76
44 · 47 · 48
inklusive LED-Lampe
Socket
84 056 1 × 12.0 W
650 lm
E 27
260
510
2000
Ø 60
47· 48 · 49
Please refer to the technical planning data for planning and installation. The current values for LED service life,
luminous flux, maximum ambient temperature and information about the use of BEGA Thermal Management ®
are readily available in the instructions for use and data sheets on our website.
» Berlin «
Pole-top luminaires
Protection class IP 23 · 84 055 Protection class IP 44
Cast aluminium · Antique glass panes
Opal glass inner globe
Luminaires with LED module: on/off power supply units
BEGA Thermal Management ®
LED colour temperature: 3000 K – article number + K3
We supply the E 27 socket luminaires complete with corresponding LED lamps.
Colour temperature: 3000 K – article number + K3
Technical data for BEGA LED lamps can be found on Page 418.
In the table, we recommend BEGA luminaire poles whose finish and colour as well as design
and statics match the pole-top luminaires in this series. The complete overview and technical
data of all BEGA luminaire poles can be found on Pages 290 to 299.
For more information about BEGA connection boxes and anchorage units, see Page 431 to 433.
Luminaire colour · BEGA Unidure® · Graphite
20-year availability guarantee for replacement parts and LED modules
Outdoor luminaires Part 2
Supplement
Page 41
Illumination
diagrams
Supplement
Page 41
Illumination
diagrams
289
