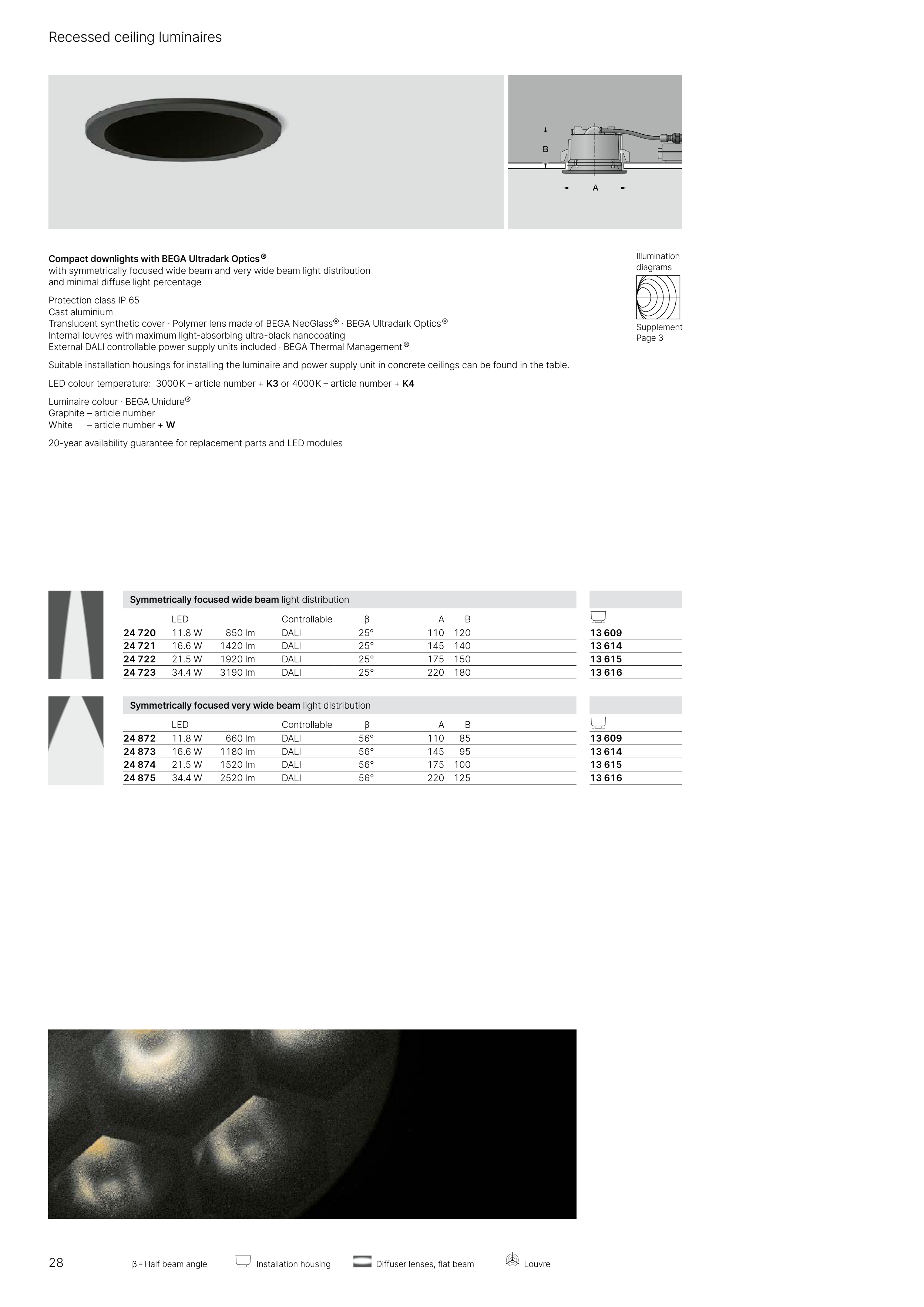

Recessed ceiling luminaires
Compact downlights with BEGA Ultradark Optics ®
with symmetrically focused wide beam and very wide beam light distribution
and minimal diffuse light percentage
Protection class IP 65
Cast aluminium
Translucent synthetic cover · Polymer lens made of BEGA NeoGlass® · BEGA Ultradark Optics ®
Internal louvres with maximum light-absorbing ultra-black nanocoating
External DALI controllable power supply units included · BEGA Thermal Management ®
Suitable installation housings for installing the luminaire and power supply unit in concrete ceilings can be found in the table.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
White
– article number + W
20-year availability guarantee for replacement parts and LED modules
Symmetrically focused wide beam light distribution
LED
Controllable
β
A
B
24 720
11.8 W
850 lm
DALI
25°
110
120
13 609
24 721
16.6 W
1420 lm
DALI
25°
145
140
13 614
24 722
21.5 W
1920 lm
DALI
25°
175
150
13 615
24 723
34.4 W
3190 lm
DALI
25°
220
180
13 616
β = Half beam angle
Installation housing
Diffuser lenses, flat beam
Louvre
Symmetrically focused very wide beam light distribution
LED
Controllable
β
A
B
24 872
11.8 W
660 lm
DALI
56°
110
85
13 609
24 873
16.6 W
1180 lm
DALI
56°
145
95
13 614
24 874
21.5 W
1520 lm
DALI
56°
175
100
13 615
24 875
34.4 W
2520 lm
DALI
56°
220
125
13 616
Supplement
Page 3
Illumination
diagrams
