DarkSky
C
C
B
B
A
A
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management ® are readily available in the
instructions for use and data sheets on our website.
Outdoor luminaires Part 2
Symmetrical light distribution
Luminaire poles
LED
Controllable
A
B
C
For pole heights
Top
Groups
99 401 18.5 W
1970 lm
DALI
Single
300
100
405
4000 – 5000
Ø 76
34 · 14 · 17 · 33 · 13
99 403 37.0 W
3940 lm
DALI
Double
300
100
720
4000 – 5000
Ø 76
34 · 14 · 17 · 33 · 13
Asymmetrical flat beam light distribution
Luminaire poles
LED
Controllable
A
B
C
For pole heights
Top
Groups
99 402 18.3 W
1940 lm
DALI
Single
300
100
405
4000 – 5000
Ø 76
34 · 14 · 17 · 33 · 13
99 407 26.4 W
3275 lm
DALI
Single
470
75
610
4000 – 6000
Ø 76
34 · 14 · 17 · 33 · 13
99 462 36.6 W
3880 lm
DALI
Double
300
100
720
4000 – 5000
Ø 76
34 · 14 · 17 · 33 · 13
99 408 52.8 W
6550 lm
DALI
Double
470
75 1125
4000 – 6000
Ø 76
34 · 14 · 17 · 33 · 13

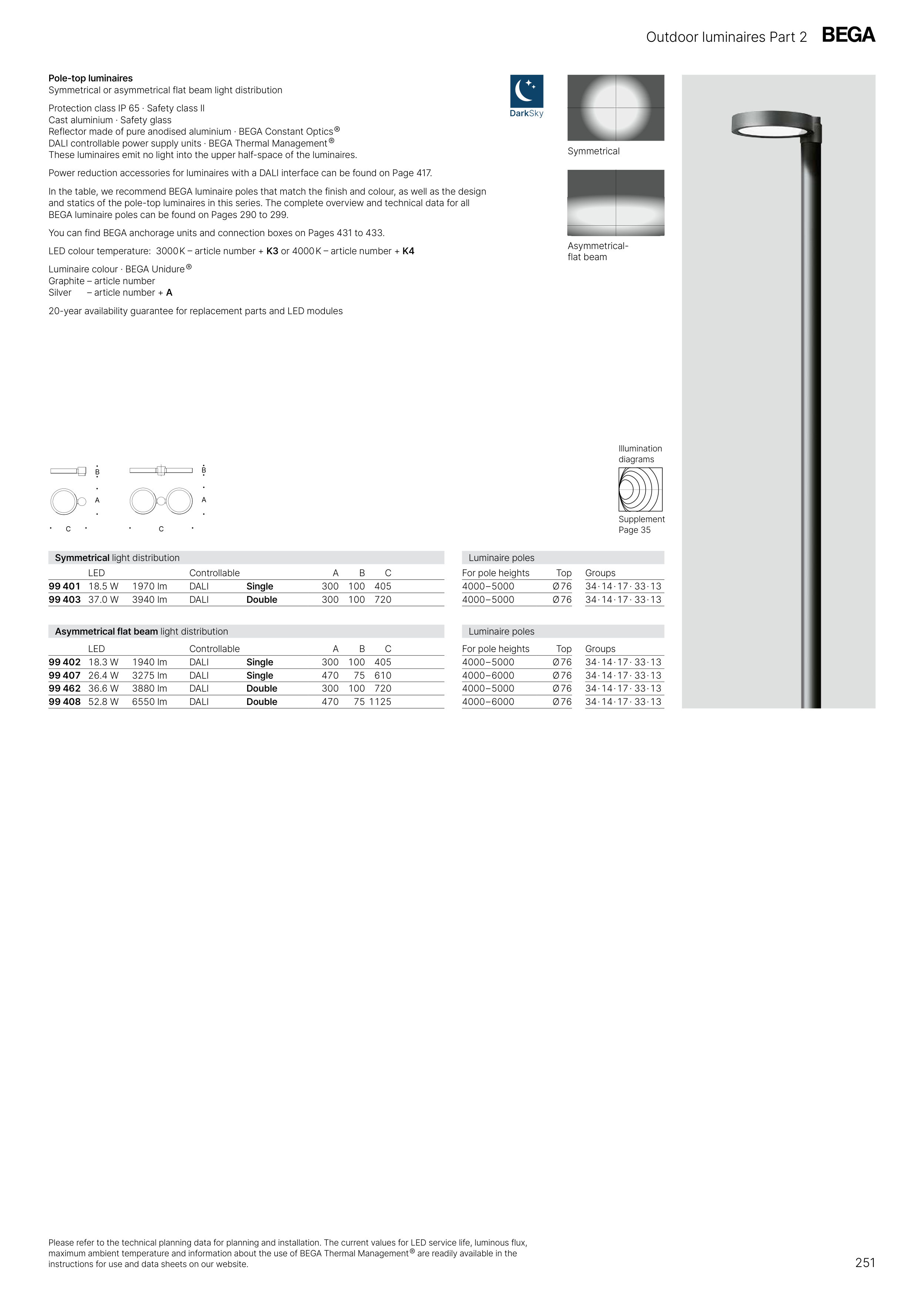

Pole-top luminaires
Symmetrical or asymmetrical flat beam light distribution
Protection class IP 65 · Safety class II
Cast aluminium · Safety glass
Reflector made of pure anodised aluminium · BEGA Constant Optics ®
DALI controllable power supply units · BEGA Thermal Management ®
These luminaires emit no light into the upper half-space of the luminaires.
Power reduction accessories for luminaires with a DALI interface can be found on Page 417.
In the table, we recommend BEGA luminaire poles that match the finish and colour, as well as the design
and statics of the pole-top luminaires in this series. The complete overview and technical data for all
BEGA luminaire poles can be found on Pages 290 to 299.
You can find BEGA anchorage units and connection boxes on Pages 431 to 433.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure ®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Symmetrical
Asymmetrical-
flat beam
Supplement
Page 35
Illumination
diagrams
251
