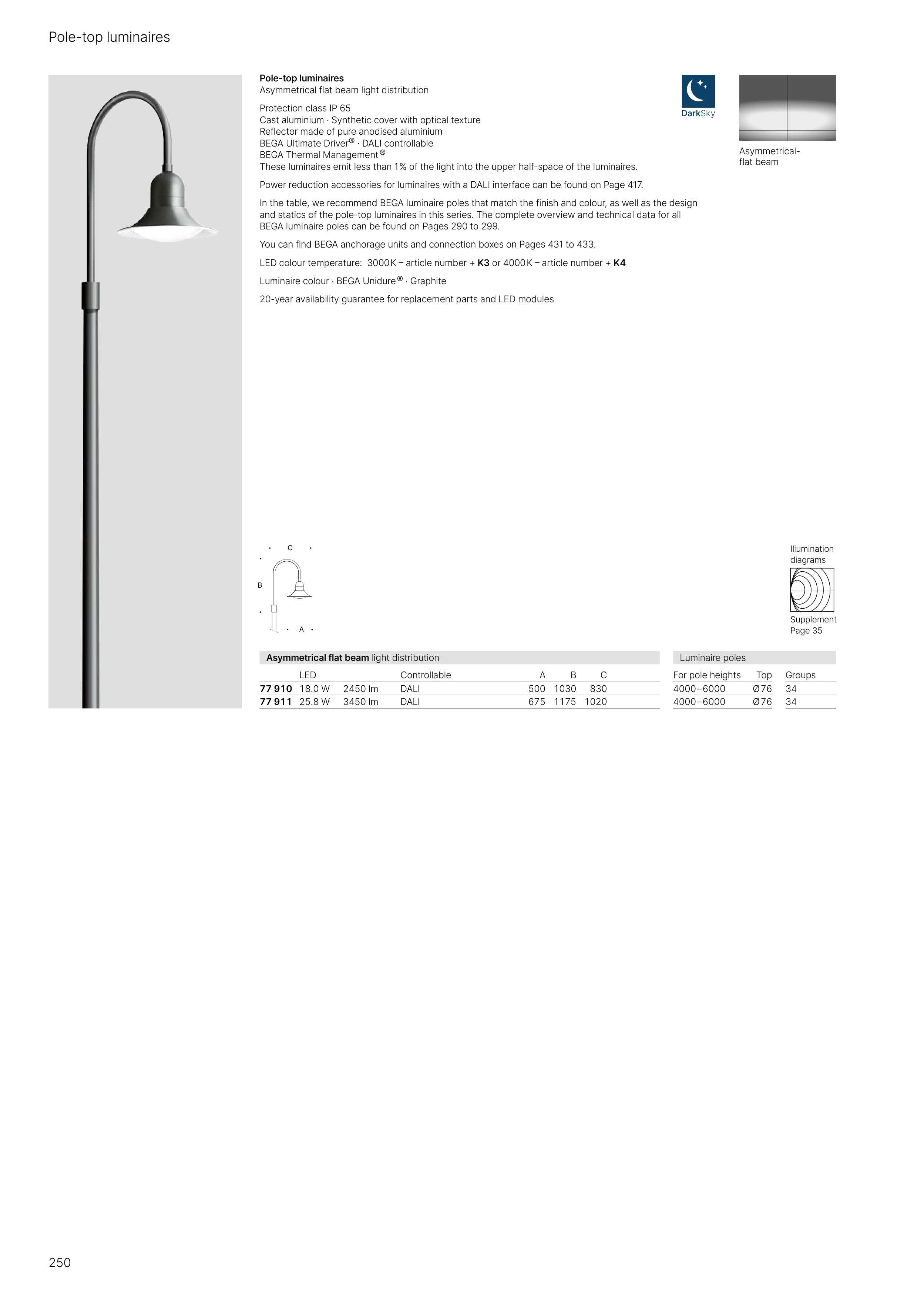

Pole-top luminaires
Pole-top luminaires
Asymmetrical flat beam light distribution
Protection class IP 65
Cast aluminium · Synthetic cover with optical texture
Reflector made of pure anodised aluminium
BEGA Ultimate Driver® · DALI controllable
BEGA Thermal Management ®
These luminaires emit less than 1 % of the light into the upper half-space of the luminaires.
Power reduction accessories for luminaires with a DALI interface can be found on Page 417.
In the table, we recommend BEGA luminaire poles that match the finish and colour, as well as the design
and statics of the pole-top luminaires in this series. The complete overview and technical data for all
BEGA luminaire poles can be found on Pages 290 to 299.
You can find BEGA anchorage units and connection boxes on Pages 431 to 433.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure ® · Graphite
20-year availability guarantee for replacement parts and LED modules
Asymmetrical flat beam light distribution
Luminaire poles
LED
Controllable
A
B
C
For pole heights
Top
Groups
77 910 18.0 W
2450 lm
DALI
500
1030
830
4000 – 6000
Ø 76
34
77 911 25.8 W
3450 lm
DALI
675
1175
1020
4000 – 6000
Ø 76
34
Asymmetrical-
flat beam
Supplement
Page 35
Illumination
diagrams
250
