Outdoor luminaires Part 2
Light building element tubes for system light building elements w. charging unit for electric vehicles
H
D
Anch. unit
Connection box
for charging unit
85 027 with base plate
Alu. with charging unit for electric vehicle · single · max. 22 kW
3900
340
70 899
71 306
85 044 with anch. section Alu. with charging unit for electric vehicle · single · max. 22 kW
3900 1000
—
71 306
Light building element tubes for system light building elements w. charging unit for electric vehicles
H
D
Anch. unit
Connection box
for charging unit
85 028 with base plate
Alu. with charging unit for electric vehicle · single · max. 22 kW
4300
420
71 219
71 306
85 045 with anch. section Alu. with charging unit for electric vehicle · single · max. 22 kW
4300 1000
—
71 306
85 072 with base plate
Alu. with charging unit for electric vehicle · double · max. 2 x 22 kW
4300
420
71 219
71 306
85 073 with anch. section Alu. with charging unit for electric vehicle · double · max. 2 x 22 kW
4300 1000
—
71 306
Ø 170
D
Ø 220
D
Light building element tubes for system light building elements
H
D
Anch. unit Euro
84 709 with base plate
Aluminium without components
3500
340
70 899
84 708 with anch. section Aluminium without components
3500
800
—
84 711 with base plate
Laminated wood + aluminium without components
3500
340
70 899
84 710 with anch. section Laminated wood + aluminium without components
3500
800
—
Accessories
Light building element tubes for system light building elements
H
D
Anch. unit
84 713 with base plate
Aluminium without components
3900
340
70 899
—
—
84 712 with anch. section Aluminium without components
3900
800
—
—
—
84 719 with base plate
Laminated wood + aluminium without components
3900
340
70 899
—
—
84 718 with anch. section Laminated wood + aluminium without components
3900
800
—
—
—
84 715 with base plate
Aluminium with one floodlight 13.8 W · 1565 lm · β = 22°
3900
340
70 899
10 014
71 215
84 714 with anch. section Aluminium with one floodlight 13.8 W · 1565 lm · β = 22°
3900
800
—
10 014
71 215
84 717 with base plate
Aluminium with two floodlights each 13.8 W · 1565 lm · β = 22°
3900
340
70 899
10 014
71 215
84 716 with anch. section Aluminium with two floodlights each 13.8 W · 1565 lm · β = 22°
3900
800
—
10 014
71 215
Accessories
Light building element tubes for system light building elements
H
D
Anch. unit
84 721 with base plate
Aluminium without components
4300
420
71 219
—
—
84 720 with anch. section Aluminium without components
4300 1000
—
—
—
84 731 with base plate
Laminated wood + aluminium without components
4300
420
71 219
—
—
84 730 with anch. section Laminated wood + aluminium without components
4300 1000
—
—
—
84 723 with base plate
Aluminium with one floodlight 23.0 W · 2585 lm · β = 18°
4300
420
71 219
10 016
71 119
84 722 with anch. section Aluminium with one floodlight 23.0 W · 2585 lm · β = 18°
4300 1000
—
10 016
71 119
84 725 with base plate
Aluminium with two floodlights each 23.0 W · 2585 lm · β = 18°
4300
420
71 219
10 016
71 119
84 724 with anch. section Aluminium with two floodlights each 23.0 W · 2585 lm · β = 18°
4300 1000
—
10 016
71 119
Ø 135
A
Ø 170
A
B
C
Ø 220
A
B
C

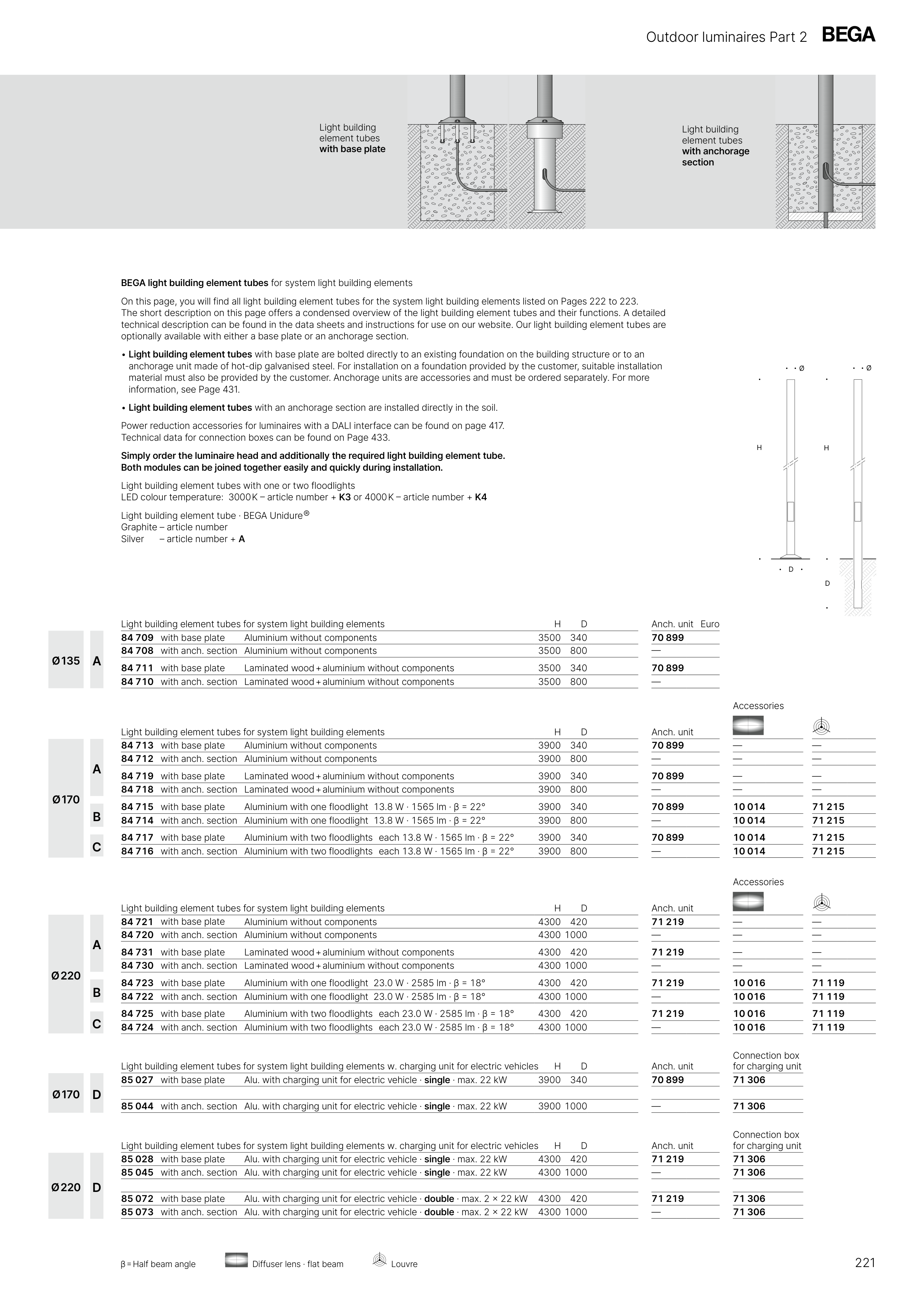

BEGA light building element tubes for system light building elements
On this page, you will find all light building element tubes for the system light building elements listed on Pages 222 to 223.
The short description on this page offers a condensed overview of the light building element tubes and their functions. A detailed
technical description can be found in the data sheets and instructions for use on our website. Our light building element tubes are
optionally available with either a base plate or an anchorage section.
• Light building element tubes with base plate are bolted directly to an existing foundation on the building structure or to an
anchorage unit made of hot-dip galvanised steel. For installation on a foundation provided by the customer, suitable installation
material must also be provided by the customer. Anchorage units are accessories and must be ordered separately. For more
information, see Page 431.
• Light building element tubes with an anchorage section are installed directly in the soil.
Power reduction accessories for luminaires with a DALI interface can be found on page 417.
Technical data for connection boxes can be found on Page 433.
Simply order the luminaire head and additionally the required light building element tube.
Both modules can be joined together easily and quickly during installation.
Light building element tubes with one or two floodlights
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Light building element tube · BEGA Unidure ®
Graphite – article number
Silver
– article number + A
