H
Ø
D
H
E
Ø

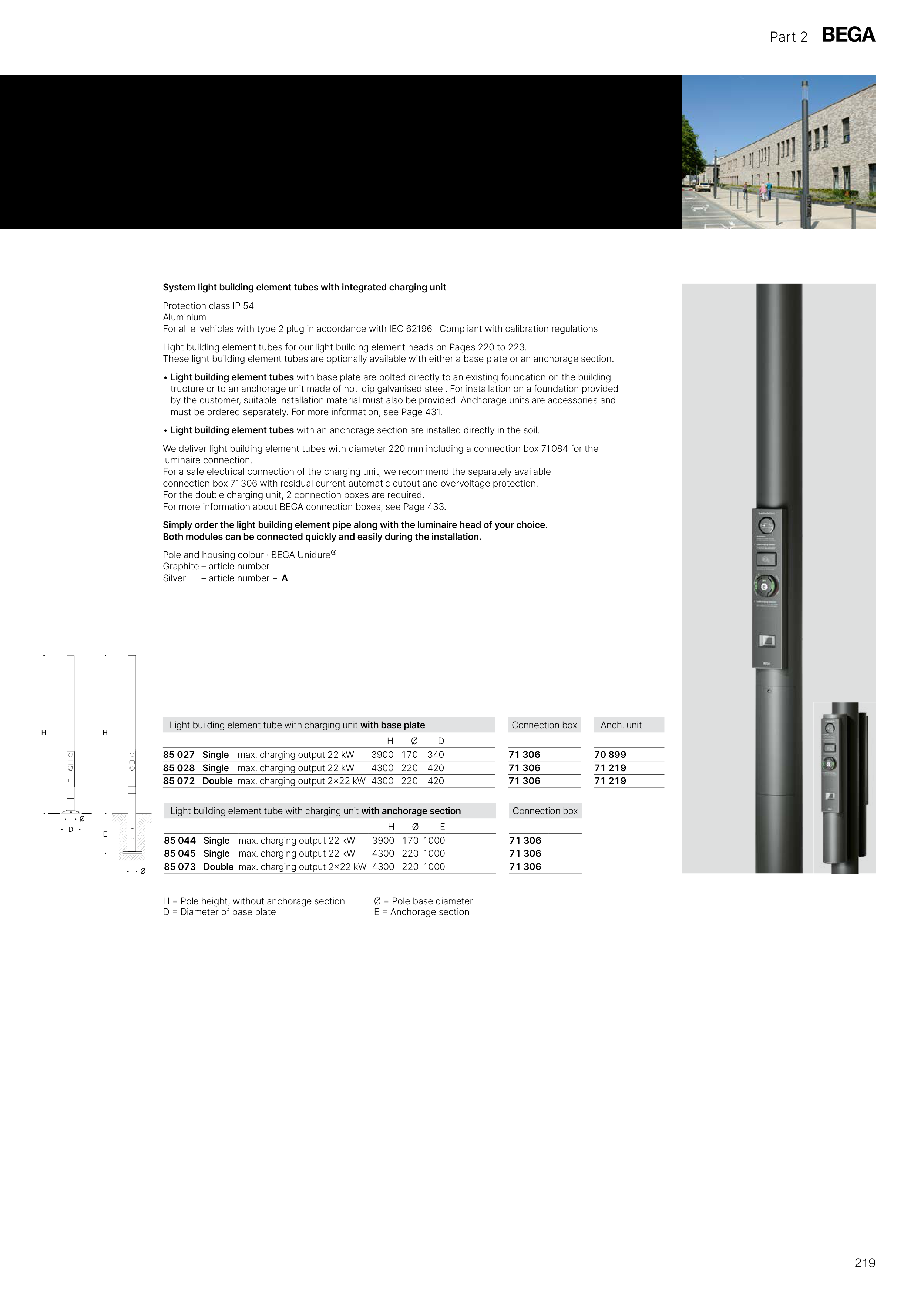

System light building element tubes with integrated charging unit
Protection class IP 54
Aluminium
For all e-vehicles with type 2 plug in accordance with IEC 62196 · Compliant with calibration regulations
Light building element tubes for our light building element heads on Pages 220 to 223.
These light building element tubes are optionally available with either a base plate or an anchorage section.
• Light building element tubes with base plate are bolted directly to an existing foundation on the building
tructure or to an anchorage unit made of hot-dip galvanised steel. For installation on a foundation provided
by the customer, suitable installation material must also be provided. Anchorage units are accessories and
must be ordered separately. For more information, see Page 431.
• Light building element tubes with an anchorage section are installed directly in the soil.
We deliver light building element tubes with diameter 220 mm including a connection box 71 084 for the
luminaire connection.
For a safe electrical connection of the charging unit, we recommend the separately available
connection box 71 306 with residual current automatic cutout and overvoltage protection.
For the double charging unit, 2 connection boxes are required.
For more information about BEGA connection boxes, see Page 433.
Simply order the light building element pipe along with the luminaire head of your choice.
Both modules can be connected quickly and easily during the installation.
Pole and housing colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
Part 2
Light building element tube with charging unit with base plate
Connection box
Anch. unit
H
Ø
D
85 027 Single
max. charging output 22 kW
3900 170
340
71 306
70 899
85 028 Single
max. charging output 22 kW
4300 220
420
71 306
71 219
85 072 Double max. charging output 2x22 kW 4300 220
420
71 306
71 219
Light building element tube with charging unit with anchorage section
Connection box
H
Ø
E
85 044 Single
max. charging output 22 kW
3900 170 1000
71 306
85 045 Single
max. charging output 22 kW
4300 220 1000
71 306
85 073 Double max. charging output 2x22 kW 4300 220 1000
71 306
H = Pole height, without anchorage section
Ø = Pole base diameter
D = Diameter of base plate
E = Anchorage section
