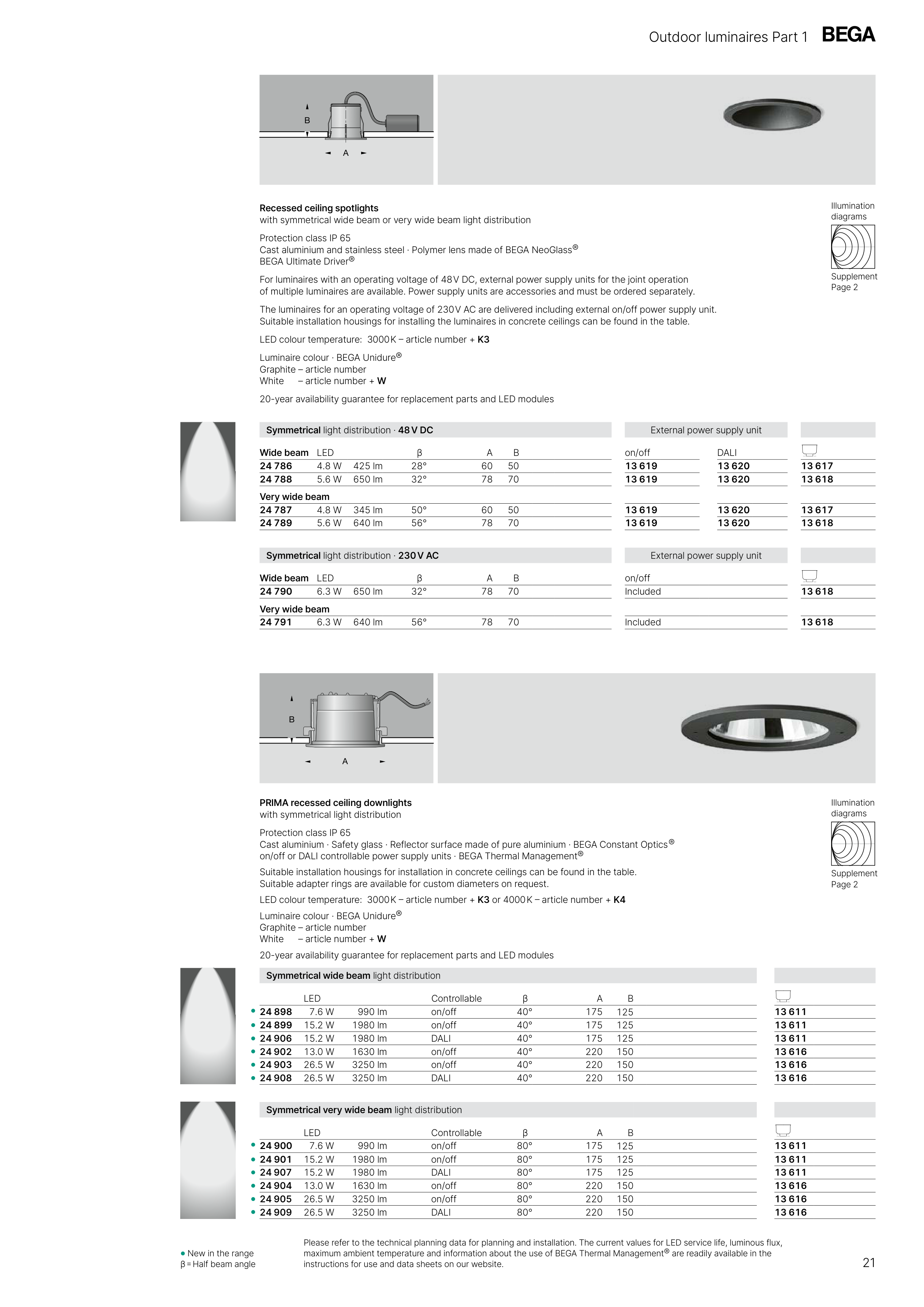

Outdoor luminaires Part 1
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management® are readily available in the
instructions for use and data sheets on our website.
Recessed ceiling spotlights
with symmetrical wide beam or very wide beam light distribution
Protection class IP 65
Cast aluminium and stainless steel · Polymer lens made of BEGA NeoGlass®
BEGA Ultimate Driver®
For luminaires with an operating voltage of 48 V DC, external power supply units for the joint operation
of multiple luminaires are available. Power supply units are accessories and must be ordered separately.
The luminaires for an operating voltage of 230 V AC are delivered including external on/off power supply unit.
Suitable installation housings for installing the luminaires in concrete ceilings can be found in the table.
LED colour temperature: 3000 K – article number + K3
Luminaire colour · BEGA Unidure®
Graphite – article number
White
– article number + W
20-year availability guarantee for replacement parts and LED modules
Symmetrical light distribution · 48 V DC
External power supply unit
Wide beam
LED
β
A
B
on/off
DALI
24 786
4.8 W
425 lm
28°
60
50
13 619
13 620
13 617
24 788
5.6 W
650 lm
32°
78
70
13 619
13 620
13 618
Very wide beam
24 787
4.8 W
345 lm
50°
60
50
13 619
13 620
13 617
24 789
5.6 W
640 lm
56°
78
70
13 619
13 620
13 618
Symmetrical light distribution · 230 V AC
External power supply unit
Wide beam
LED
β
A
B
on/off
24 790
6.3 W
650 lm
32°
78
70
Included
13 618
Very wide beam
24 791
6.3 W
640 lm
56°
78
70
Included
13 618
• New in the range
β = Half beam angle
Symmetrical wide beam light distribution
LED
Controllable
β
A
B
• 24 898
7.6 W
990 lm
on/off
40°
175
125
13 611
• 24 899
15.2 W
1980 lm
on/off
40°
175
125
13 611
• 24 906
15.2 W
1980 lm
DALI
40°
175
125
13 611
• 24 902
13.0 W
1630 lm
on/off
40°
220
150
13 616
• 24 903
26.5 W
3250 lm
on/off
40°
220
150
13 616
• 24 908
26.5 W
3250 lm
DALI
40°
220
150
13 616
Symmetrical very wide beam light distribution
LED
Controllable
β
A
B
• 24 900
7.6 W
990 lm
on/off
80°
175
125
13 611
• 24 901
15.2 W
1980 lm
on/off
80°
175
125
13 611
• 24 907
15.2 W
1980 lm
DALI
80°
175
125
13 611
• 24 904
13.0 W
1630 lm
on/off
80°
220
150
13 616
• 24 905
26.5 W
3250 lm
on/off
80°
220
150
13 616
• 24 909
26.5 W
3250 lm
DALI
80°
220
150
13 616
PRIMA recessed ceiling downlights
with symmetrical light distribution
Protection class IP 65
Cast aluminium · Safety glass · Reflector surface made of pure aluminium · BEGA Constant Optics ®
on/off or DALI controllable power supply units · BEGA Thermal Management®
Suitable installation housings for installation in concrete ceilings can be found in the table.
Suitable adapter rings are available for custom diameters on request.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
White
– article number + W
20-year availability guarantee for replacement parts and LED modules
Supplement
Page 2
Illumination
diagrams
Supplement
Page 2
Illumination
diagrams
