BEGA UniLink® Play · Garden luminaires for private use
BEGA UniLink ® Play · Garden lighting made easy
BEGA UniLink ® Play includes small-format floodlights and pathway luminaires – including matching extension
leads. A BEGA UniLink ® Play power supply unit will be required, which facilitates the safe 48-volt operating voltage.
Integration into BEGA Smart using BEGA Smart Link allows individual control and automation of these luminaires.
BEGA UniLink ® Play can extend an existing BEGA UniLink ® installation or can be used as a stand-alone system.
BEGA UniLink ® Play
LUMINAIRE
BEGA UniLink ® Play
SMART LINK
All luminaires connected
with the Smart Link can be
controlled simultaneously.
CONNECTING CABLE
Each luminaire is
equipped with a
two-metre-long
connecting cable.
BEGA UniLink ® Play
POWER SUPPLY UNIT
For the operation of BEGA
UniLink ® Play luminaires
BEGA UniLink ® Play
T DISTRIBUTION BOX
BEGA UniLink ® Play
FIVE-WAY
DISTRIBUTION BOX

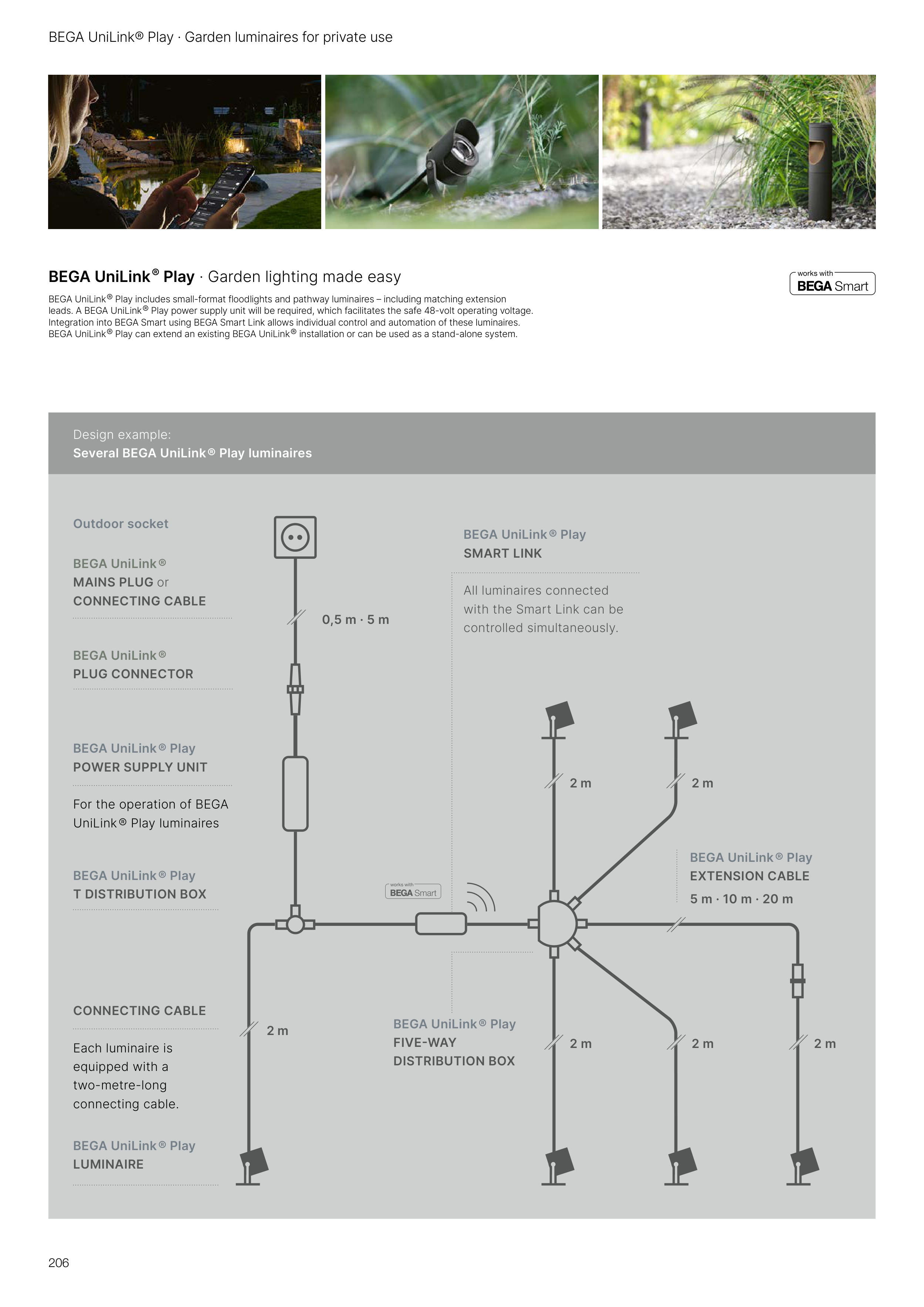

Design example:
Several BEGA UniLink ® Play luminaires
BEGA UniLink ® Play
EXTENSION CABLE
Outdoor socket
BEGA UniLink ®
MAINS PLUG or
CONNECTING CABLE
BEGA UniLink ®
PLUG CONNECTOR
2 m
2 m
2 m
2 m
2 m
2 m
5 m · 10 m · 20 m
0,5 m · 5 m
206
