A
C
B
D
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management ® are readily available in the
instructions for use and data sheets on our website.
Unshielded light on one side
Anchorage unit
LED
Controllable
Connection
A
B
C
D
99 326 14.0 W
815 lm
DALI
Terminals 5 × 4□
120
1000
80
160
70 895
Unshielded light on two sides
Anchorage unit
LED
Controllable
Connection
A
B
C
D
99 330 27.0 W 1645 lm
DALI
Terminals 5 × 4□
120
1000
80
160
70 895

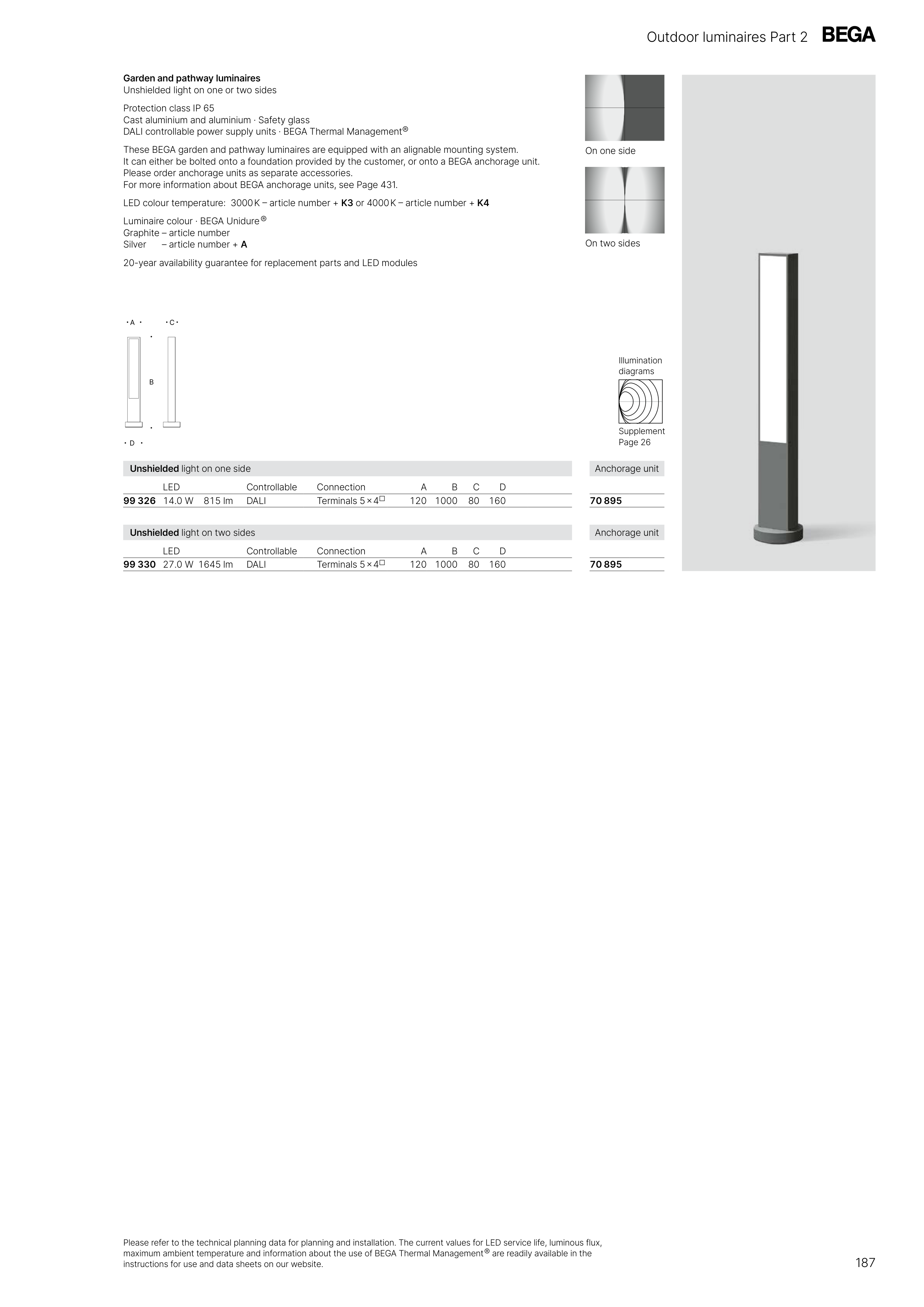

Garden and pathway luminaires
Unshielded light on one or two sides
Protection class IP 65
Cast aluminium and aluminium · Safety glass
DALI controllable power supply units · BEGA Thermal Management®
These BEGA garden and pathway luminaires are equipped with an alignable mounting system.
It can either be bolted onto a foundation provided by the customer, or onto a BEGA anchorage unit.
Please order anchorage units as separate accessories.
For more information about BEGA anchorage units, see Page 431.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure ®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
On one side
On two sides
Outdoor luminaires Part 2
Supplement
Page 26
Illumination
diagrams
187
