550
160
160
990
615
220
220
1115
500
160
160
940
565
220
220
1070
H
H
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management ® are readily available in the
instructions for use and data sheets on our website.
□ 160
□ 220
□ 160
□ 220

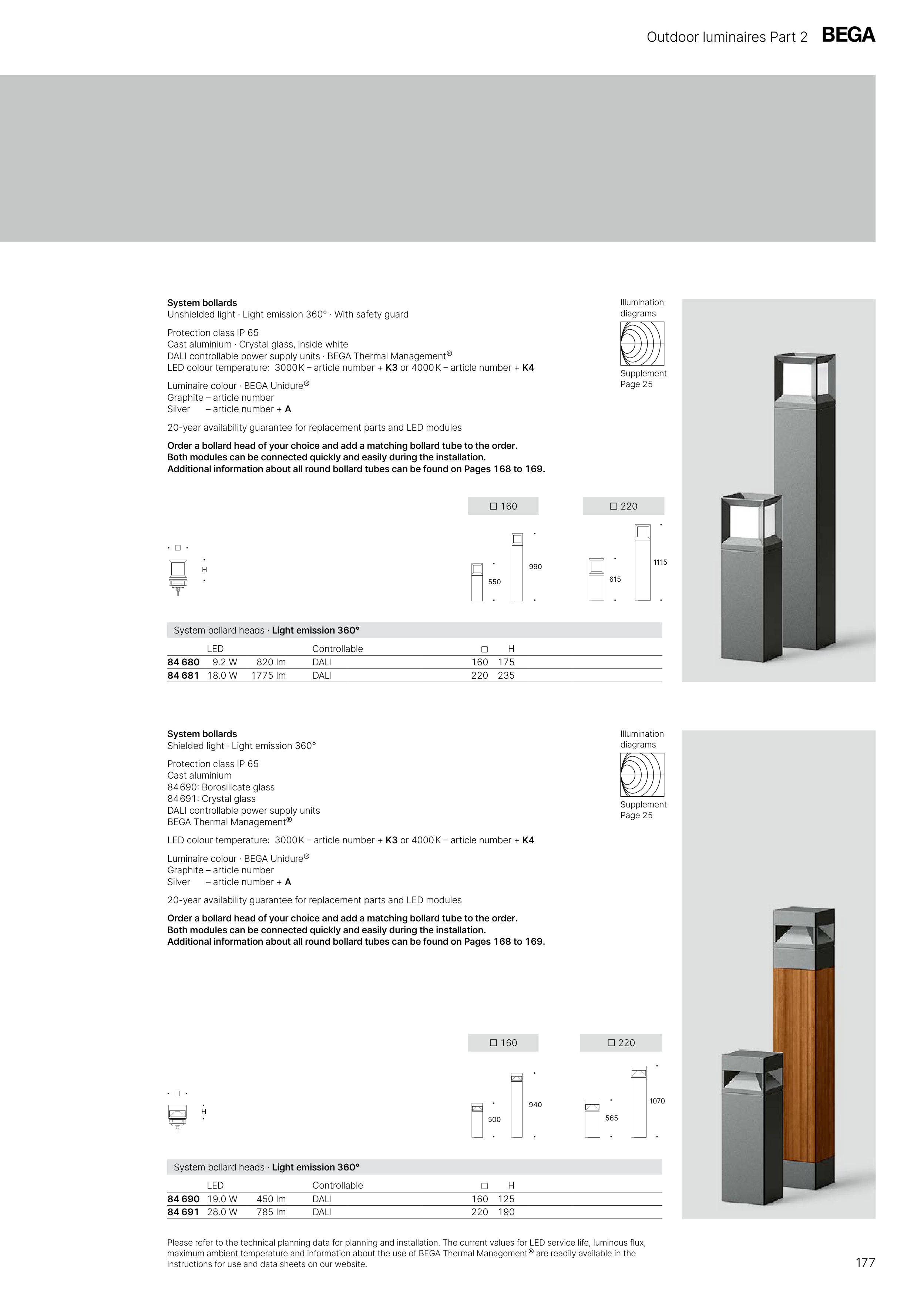

System bollards
Unshielded light · Light emission 360° · With safety guard
Protection class IP 65
Cast aluminium · Crystal glass, inside white
DALI controllable power supply units · BEGA Thermal Management®
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Order a bollard head of your choice and add a matching bollard tube to the order.
Both modules can be connected quickly and easily during the installation.
Additional information about all round bollard tubes can be found on Pages 168 to 169.
System bollards
Shielded light · Light emission 360°
Protection class IP 65
Cast aluminium
84 690: Borosilicate glass
84 691: Crystal glass
DALI controllable power supply units
BEGA Thermal Management®
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Order a bollard head of your choice and add a matching bollard tube to the order.
Both modules can be connected quickly and easily during the installation.
Additional information about all round bollard tubes can be found on Pages 168 to 169.
System bollard heads · Light emission 360°
LED
Controllable
H
84 680 9.2 W
820 lm
DALI
160
175
84 681 18.0 W
1775 lm
DALI
220
235
System bollard heads · Light emission 360°
LED
Controllable
H
84 690 19.0 W
450 lm
DALI
160
125
84 691 28.0 W
785 lm
DALI
220
190
Outdoor luminaires Part 2
Supplement
Page 25
Illumination
diagrams
Supplement
Page 25
Illumination
diagrams
177
