H
Ø
H
Ø
425
190
190
875
455
265
265
955
1230
405
140
140
710
425
190
190
875
455
265
265
955
1230
405
140
140
710
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management ® are readily available in the
instructions for use and data sheets on our website.

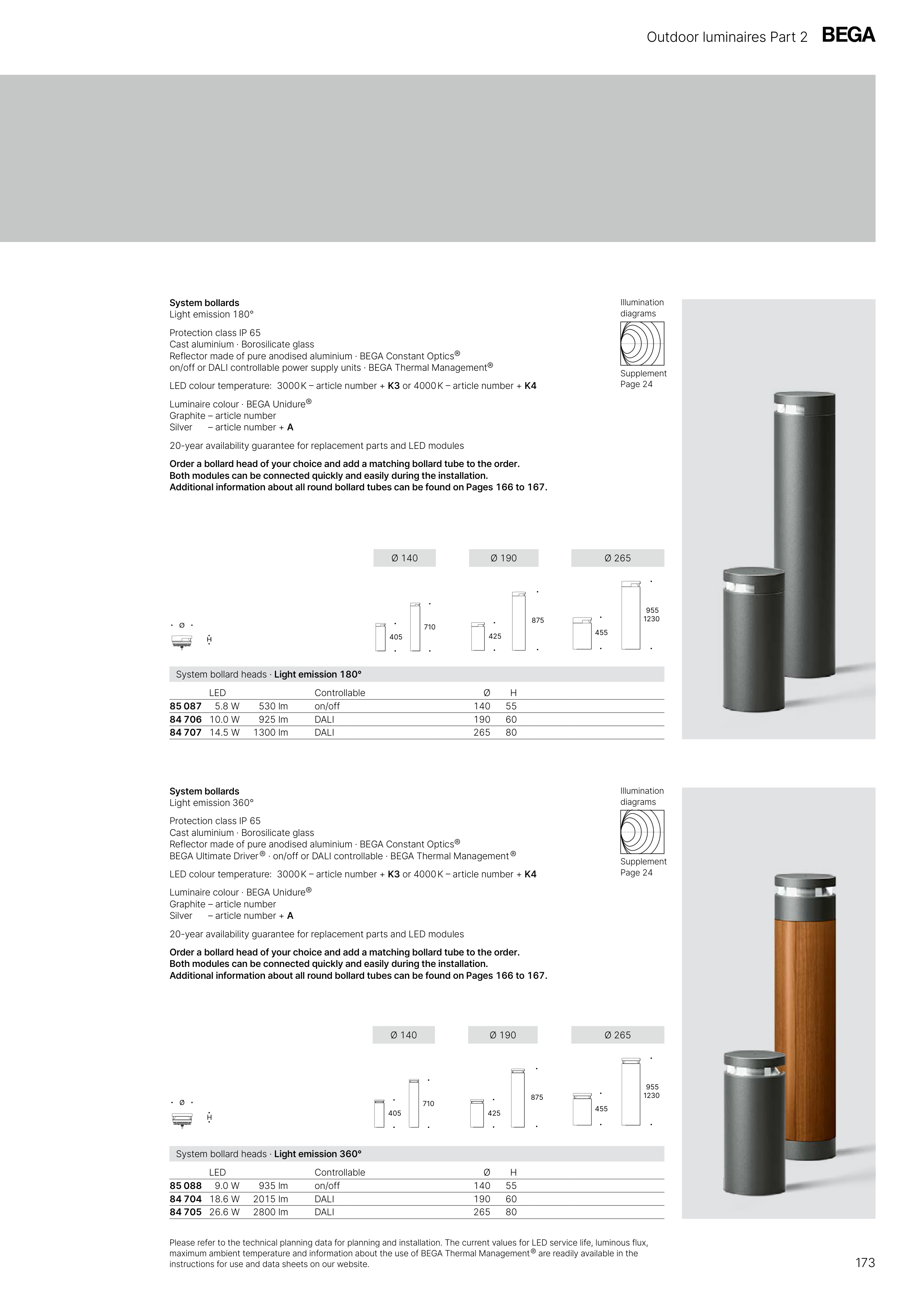

Outdoor luminaires Part 2
System bollards
Light emission 180°
Protection class IP 65
Cast aluminium · Borosilicate glass
Reflector made of pure anodised aluminium · BEGA Constant Optics®
on/off or DALI controllable power supply units · BEGA Thermal Management®
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Order a bollard head of your choice and add a matching bollard tube to the order.
Both modules can be connected quickly and easily during the installation.
Additional information about all round bollard tubes can be found on Pages 166 to 167.
System bollard heads · Light emission 360°
LED
Controllable
Ø
H
85 088 9.0 W
935 lm
on/off
140
55
84 704 18.6 W
2015 lm
DALI
190
60
84 705 26.6 W
2800 lm
DALI
265
80
System bollard heads · Light emission 180°
LED
Controllable
Ø
H
85 087 5.8 W
530 lm
on/off
140
55
84 706 10.0 W
925 lm
DALI
190
60
84 707 14.5 W
1300 lm
DALI
265
80
Ø 190
Ø 265
System bollards
Light emission 360°
Protection class IP 65
Cast aluminium · Borosilicate glass
Reflector made of pure anodised aluminium · BEGA Constant Optics®
BEGA Ultimate Driver ® · on/off or DALI controllable · BEGA Thermal Management ®
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Order a bollard head of your choice and add a matching bollard tube to the order.
Both modules can be connected quickly and easily during the installation.
Additional information about all round bollard tubes can be found on Pages 166 to 167.
Ø 190
Ø 265
Ø 140
Ø 140
Supplement
Page 24
Illumination
diagrams
Supplement
Page 24
Illumination
diagrams
173
