A
B
A
B
1t
In-ground and on-ground luminaires
Cast aluminium and stainless steel · Borosilicate glass
Reflector made of pure anodised aluminium · BEGA Constant Optics®
BEGA Thermal Management® · Integrated water stop and connecting cable
A separate 24 V DC power supply unit is required to operate the luminaires 77 069 and 77 070.
Additional information can be found on Page 420.
We offer a connection housing as an accessory to meet any requirements at the installation site.
The luminaires can therefore be installed on unpaved substrates. We recommend using BEGA distribution
box 70 730 if through-wiring to another luminaire is required. The distribution box is suitable for installation
in the connection housing. For more information about connection housings and distribution boxes,
see Page 430.
LED colour temperature: 2700 K – article number + K27 or 3000 K – article number + K3
Luminaire colour · BEGA Tricoat® · Graphite
20-year availability guarantee for replacement parts and LED modules
1 light sector · 180°
Accessories
LED
PSU
A
B
Connection
housing
77 069
1.3 W
20 lm
without*
160
40
71 246
77 089 7.0 W
175 lm
on/off
270
55
71 246
1 light sector · 360°
Accessories
LED
PSU
A
B
Connection
housing
77 070 2.6 W
30 lm
without*
160
40
71 246
77 090 13.6 W 265 lm
on/off
270
55
71 246
Pressure load
1000 kg
Material
Stainless steel · Cast aluminium
Protection class
IP 67
Size Ø
160 · 270 mm

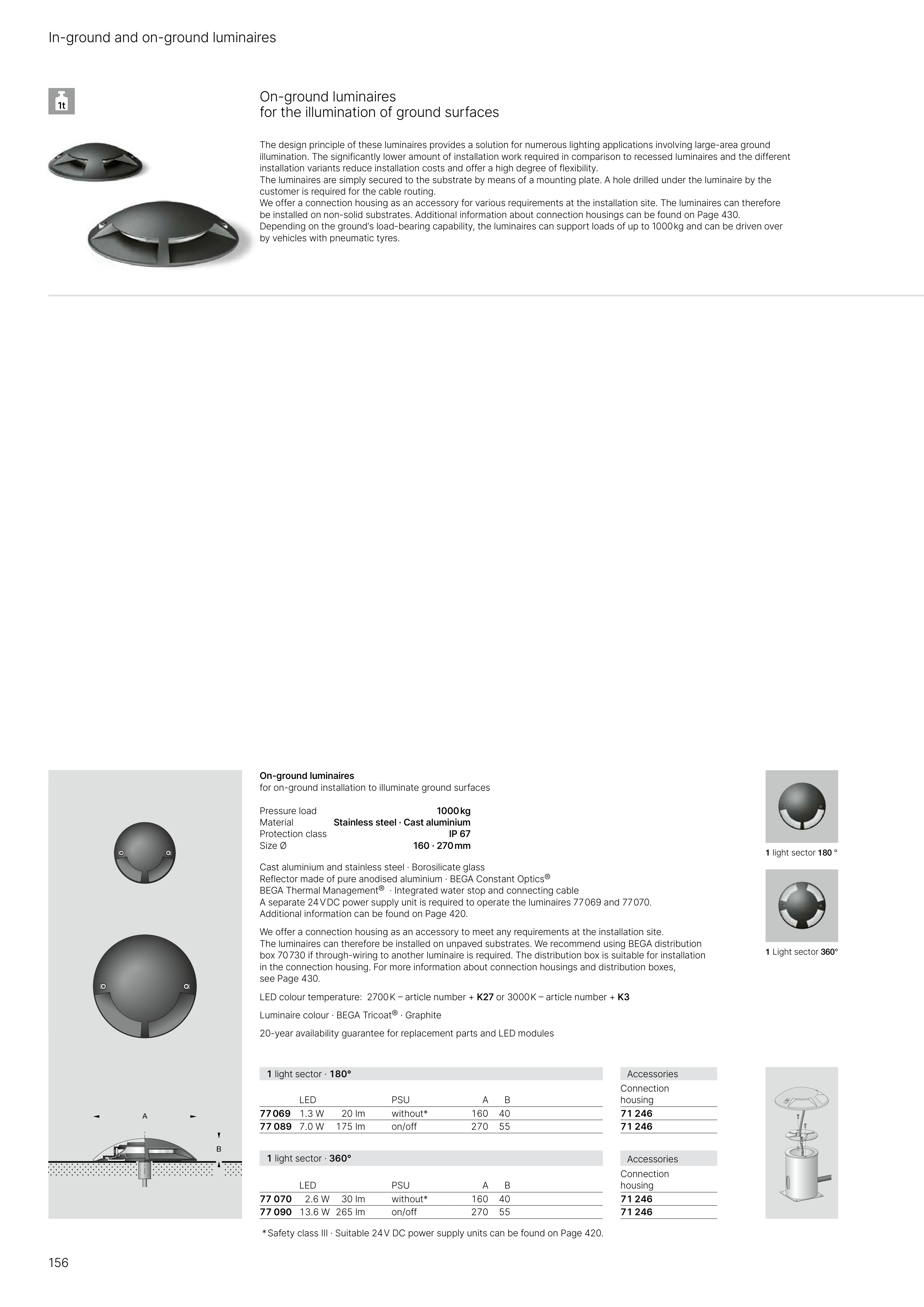

On-ground luminaires
for on-ground installation to illuminate ground surfaces
* Safety class III · Suitable 24 V DC power supply units can be found on Page 420.
1 light sector 180 °
1 Light sector 360°
The design principle of these luminaires provides a solution for numerous lighting applications involving large-area ground
illumination. The significantly lower amount of installation work required in comparison to recessed luminaires and the different
installation variants reduce installation costs and offer a high degree of flexibility.
The luminaires are simply secured to the substrate by means of a mounting plate. A hole drilled under the luminaire by the
customer is required for the cable routing.
We offer a connection housing as an accessory for various requirements at the installation site. The luminaires can therefore
be installed on non-solid substrates. Additional information about connection housings can be found on Page 430.
Depending on the ground‘s load-bearing capability, the luminaires can support loads of up to 1000 kg and can be driven over
by vehicles with pneumatic tyres.
On-ground luminaires
for the illumination of ground surfaces
156
