C
A
B
C
A
B
1t
Location luminaires
LED
Controllable
A
B
C
84 156
18.3 W
1005 lm
DALI
535 x 82
78
130
84 157
35.6 W
2030 lm
DALI
1025 x 82
78
130
84 158
53.0 W
3235 lm
DALI
1520 x 82
78
130
Floodlights · Symmetrical light distribution
Narrow beam
LED
Controllable
β
A
B
C
84 159
18.3 W
1220 lm
DALI
34°
535 x 82
78
130
84 160
35.6 W
2175 lm
DALI
34°
1025 x 82
78
130
84 161
53.0 W
3405 lm
DALI
34°
1520 x 82
78
130
Wide beam
84 165
18.3 W
1880 lm
DALI
55°
535 x 82
78
130
84 166
35.6 W
3655 lm
DALI
55°
1025 x 82
78
130
84 167
53.0 W
5720 lm
DALI
55°
1520 x 82
78
130
Floodlights · Asymmetrical light distribution
LED
Controllable
β
A
B
C
84 162
18.3 W
1610 lm
DALI
46/53°
535 x 82
78
130
84 163
35.6 W
3235 lm
DALI
46/53°
1025 x 82
78
130
84 164
53.0 W
4905 lm
DALI
46/53°
1520 x 82
78
130
Pressure load
1000 kg
Material
Stainless steel · Aluminium
Protection class
IP 67
Installation depth
130 mm
Length
535 · 1025 · 1520 mm
Cover frame made of stainless steel · Luminaire housing and recessed housing made of aluminium
Safety glass · Floodlight: Reflector surface made of pure aluminium
BEGA Vortex Optics® (European Patent EP 3098504)
BEGA Thermal Management®
Integrated water stop and connecting cable
LED colour temperature: 2700 K – article number + K27 or 3000 K – article number + K3
20-year availability guarantee for replacement parts and LED modules
Stainless steel in-ground luminaires
for installation in paved surfaces
for installation situations with high pressure loads
for installation situations with shallow installation depths
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management® are readily available in the
instructions for use and data sheets on our website.
Location luminaires
Floodlights
Narrow beam
Floodlights
Wide beam
Floodlights
Asymmetrical

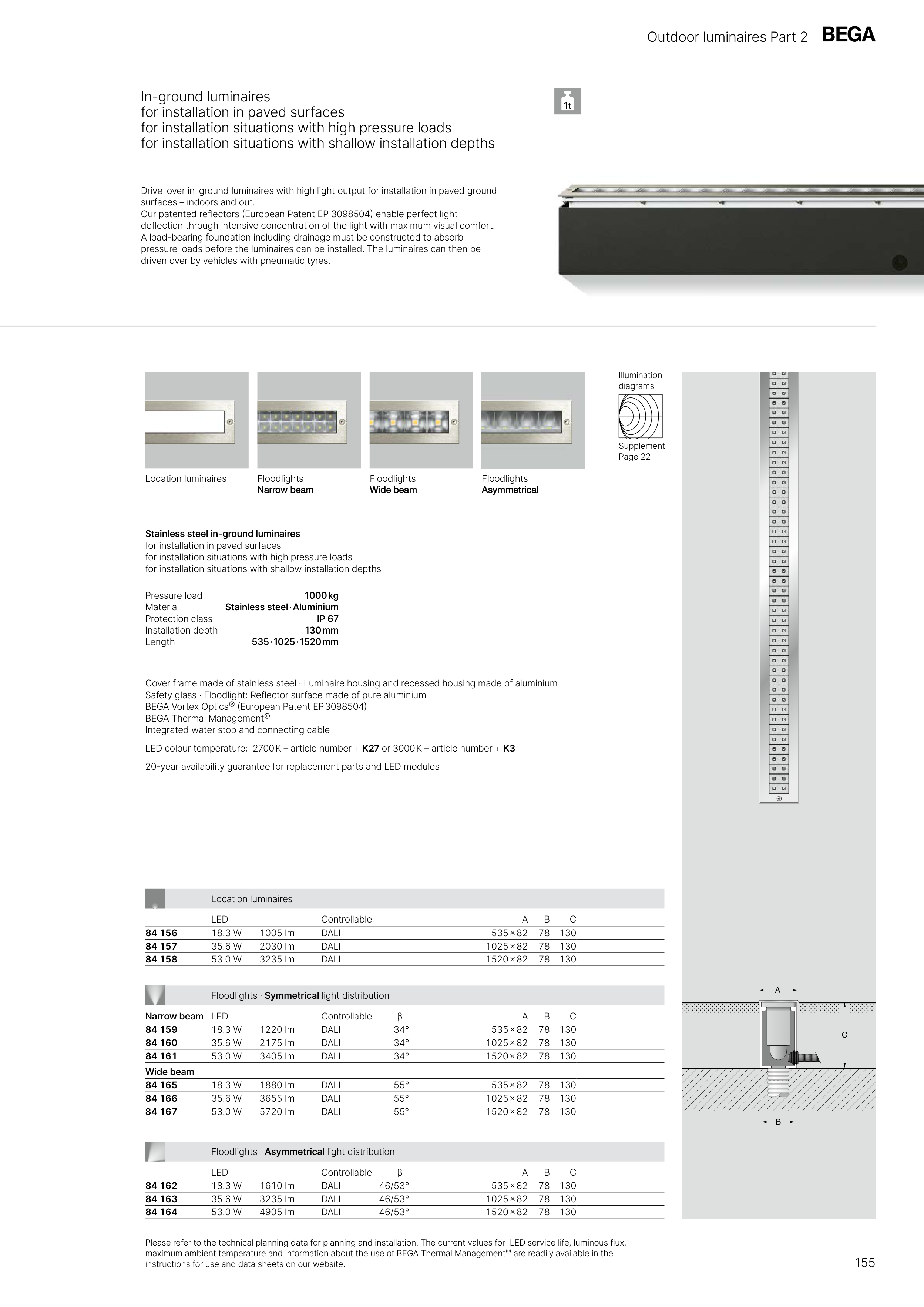

Outdoor luminaires Part 2
In-ground luminaires
for installation in paved surfaces
for installation situations with high pressure loads
for installation situations with shallow installation depths
Drive-over in-ground luminaires with high light output for installation in paved ground
surfaces – indoors and out.
Our patented reflectors (European Patent EP 3098504) enable perfect light
deflection through intensive concentration of the light with maximum visual comfort.
A load-bearing foundation including drainage must be constructed to absorb
pressure loads before the luminaires can be installed. The luminaires can then be
driven over by vehicles with pneumatic tyres.
Supplement
Page 22
Illumination
diagrams
155
