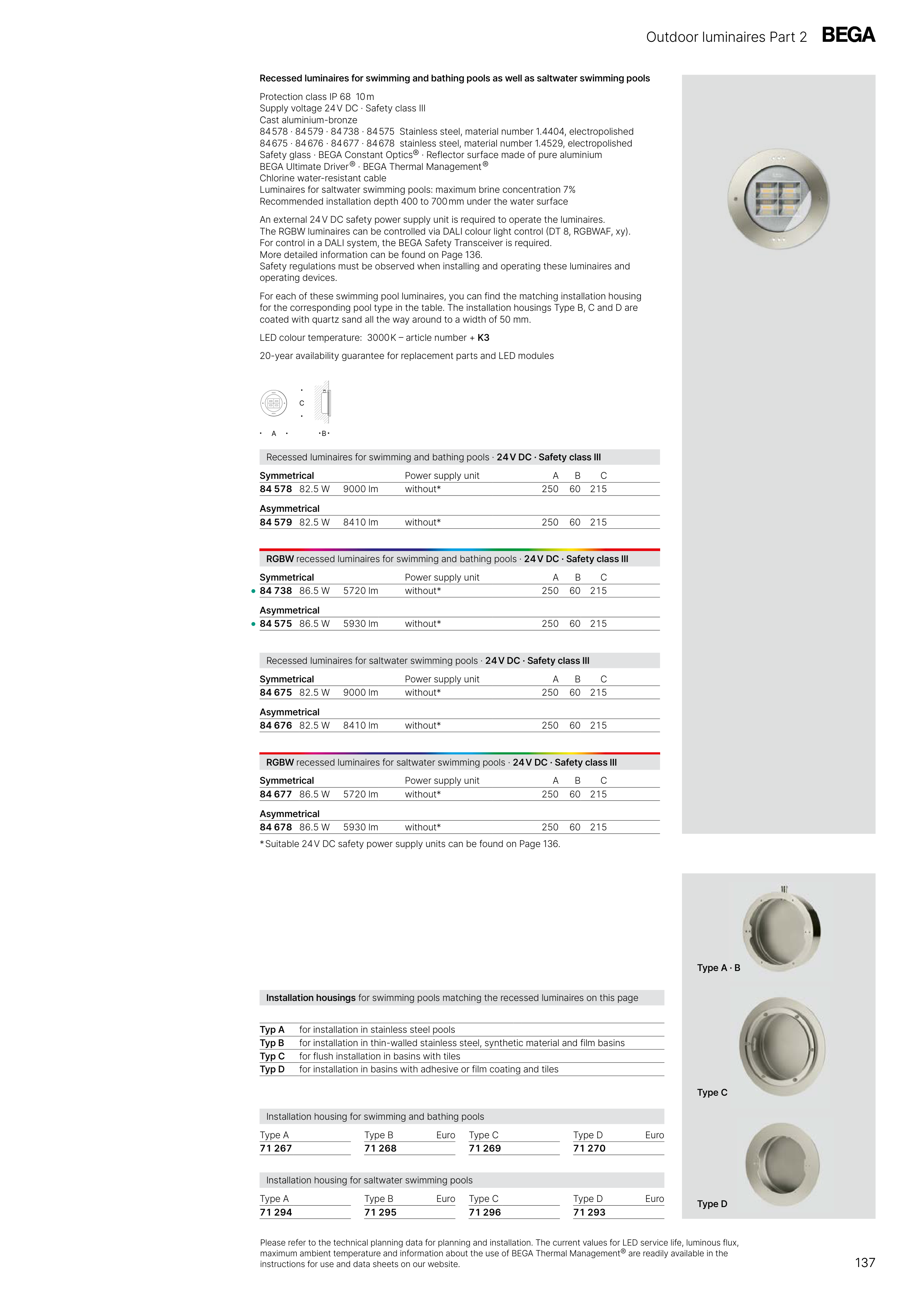

Outdoor luminaires Part 2
Recessed luminaires for swimming and bathing pools as well as saltwater swimming pools
Protection class IP 68 10 m
Supply voltage 24 V DC · Safety class III
Cast aluminium-bronze
84 578 · 84 579 · 84 738 · 84 575 Stainless steel, material number 1.4404, electropolished
84 675 · 84 676 · 84 677 · 84 678 stainless steel, material number 1.4529, electropolished
Safety glass · BEGA Constant Optics® · Reflector surface made of pure aluminium
BEGA Ultimate Driver ® · BEGA Thermal Management ®
Chlorine water-resistant cable
Luminaires for saltwater swimming pools: maximum brine concentration 7%
Recommended installation depth 400 to 700 mm under the water surface
An external 24 V DC safety power supply unit is required to operate the luminaires.
The RGBW luminaires can be controlled via DALI colour light control (DT 8, RGBWAF, xy).
For control in a DALI system, the BEGA Safety Transceiver is required.
More detailed information can be found on Page 136.
Safety regulations must be observed when installing and operating these luminaires and
operating devices.
For each of these swimming pool luminaires, you can find the matching installation housing
for the corresponding pool type in the table. The installation housings Type B, C and D are
coated with quartz sand all the way around to a width of 50 mm.
LED colour temperature: 3000 K – article number + K3
20-year availability guarantee for replacement parts and LED modules
Recessed luminaires for swimming and bathing pools · 24 V DC · Safety class III
Symmetrical
Power supply unit
A
B
C
84 578 82.5 W
9000 lm
without*
250
60
215
Asymmetrical
84 579 82.5 W
8410 lm
without*
250
60
215
* Suitable 24 V DC safety power supply units can be found on Page 136.
Recessed luminaires for saltwater swimming pools · 24 V DC · Safety class III
Symmetrical
Power supply unit
A
B
C
84 675 82.5 W
9000 lm
without*
250
60
215
Asymmetrical
84 676 82.5 W
8410 lm
without*
250
60
215
Installation housings for swimming pools matching the recessed luminaires on this page
Typ A
for installation in stainless steel pools
Typ B
for installation in thin-walled stainless steel, synthetic material and film basins
Typ C
for flush installation in basins with tiles
Typ D
for installation in basins with adhesive or film coating and tiles
RGBW recessed luminaires for saltwater swimming pools · 24 V DC · Safety class III
Symmetrical
Power supply unit
A
B
C
84 677 86.5 W
5720 lm
without*
250
60
215
Asymmetrical
84 678 86.5 W
5930 lm
without*
250
60
215
RGBW recessed luminaires for swimming and bathing pools · 24 V DC · Safety class III
Symmetrical
Power supply unit
A
B
C
• 84 738 86.5 W
5720 lm
without*
250
60
215
Asymmetrical
• 84 575 86.5 W
5930 lm
without*
250
60
215
Installation housing for swimming and bathing pools
Type A
Type B
Euro
Type C
Type D
Euro
71 267
71 268
71 269
71 270
Installation housing for saltwater swimming pools
Type A
Type B
Euro
Type C
Type D
Euro
71 294
71 295
71 296
71 293
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management® are readily available in the
instructions for use and data sheets on our website.
Type A · B
Type C
Type D
