B
A
A
B
A
B
C
254
247
90
98
18
56

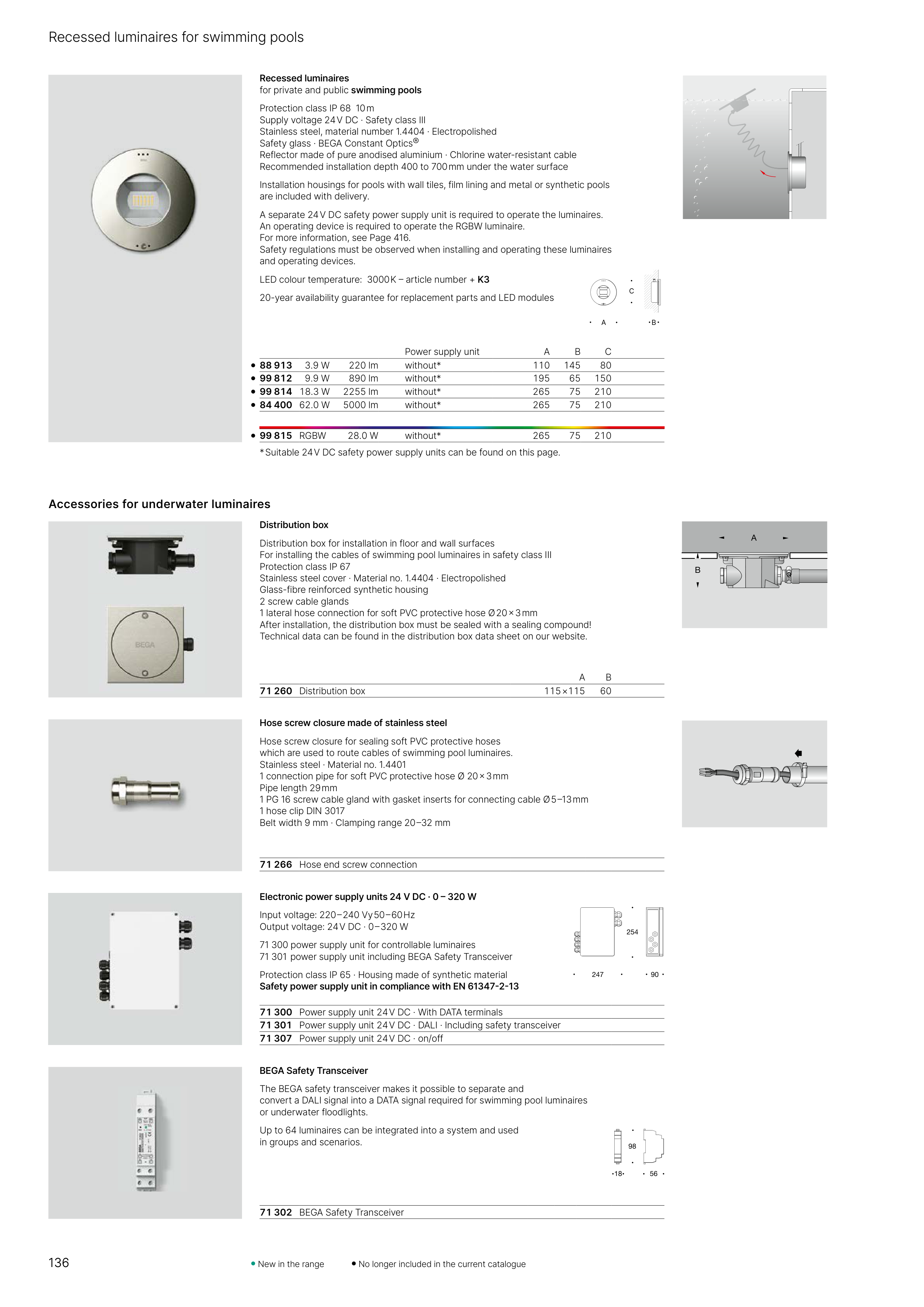

Recessed luminaires
for private and public swimming pools
Protection class IP 68 10 m
Supply voltage 24 V DC · Safety class III
Stainless steel, material number 1.4404 · Electropolished
Safety glass · BEGA Constant Optics®
Reflector made of pure anodised aluminium · Chlorine water-resistant cable
Recommended installation depth 400 to 700 mm under the water surface
Installation housings for pools with wall tiles, film lining and metal or synthetic pools
are included with delivery.
A separate 24 V DC safety power supply unit is required to operate the luminaires.
An operating device is required to operate the RGBW luminaire.
For more information, see Page 416.
Safety regulations must be observed when installing and operating these luminaires
and operating devices.
LED colour temperature: 3000 K – article number + K3
20-year availability guarantee for replacement parts and LED modules
* Suitable 24 V DC safety power supply units can be found on this page.
A
B
71 260 Distribution box
115 ×115
60
Distribution box
Distribution box for installation in floor and wall surfaces
For installing the cables of swimming pool luminaires in safety class III
Protection class IP 67
Stainless steel cover · Material no. 1.4404 · Electropolished
Glass-fibre reinforced synthetic housing
2 screw cable glands
1 lateral hose connection for soft PVC protective hose Ø 20 × 3 mm
After installation, the distribution box must be sealed with a sealing compound!
Technical data can be found in the distribution box data sheet on our website.
Power supply unit
A
B
C
• 88 913 3.9 W
220 lm
without*
110
145
80
• 99 812 9.9 W
890 lm
without*
195
65
150
• 99 814 18.3 W
2255 lm
without*
265
75
210
• 84 400 62.0 W
5000 lm
without*
265
75
210
• 99 815 RGBW
28.0 W
without*
265
75
210
Recessed luminaires for swimming pools
Hose screw closure made of stainless steel
Hose screw closure for sealing soft PVC protective hoses
which are used to route cables of swimming pool luminaires.
Stainless steel · Material no. 1.4401
1 connection pipe for soft PVC protective hose Ø 20 × 3 mm
Pipe length 29 mm
1 PG 16 screw cable gland with gasket inserts for connecting cable Ø 5 –13 mm
1 hose clip DIN 3017
Belt width 9 mm · Clamping range 20 –32 mm
71 266 Hose end screw connection
• New in the range • No longer included in the current catalogue
Accessories for underwater luminaires
71 300 Power supply unit 24 V DC · With DATA terminals
71 301 Power supply unit 24 V DC · DALI · Including safety transceiver
71 307 Power supply unit 24 V DC · on/off
71 302 BEGA Safety Transceiver
Electronic power supply units 24 V DC · 0 – 320 W
Input voltage: 220 – 240 Vy 50 – 60 Hz
Output voltage: 24 V DC · 0 – 320 W
71 300 power supply unit for controllable luminaires
71 301 power supply unit including BEGA Safety Transceiver
Protection class IP 65 · Housing made of synthetic material
Safety power supply unit in compliance with EN 61347-2-13
BEGA Safety Transceiver
The BEGA safety transceiver makes it possible to separate and
convert a DALI signal into a DATA signal required for swimming pool luminaires
or underwater floodlights.
Up to 64 luminaires can be integrated into a system and used
in groups and scenarios.
136
136
