Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management® are readily available in the
instructions for use and data sheets on our website.

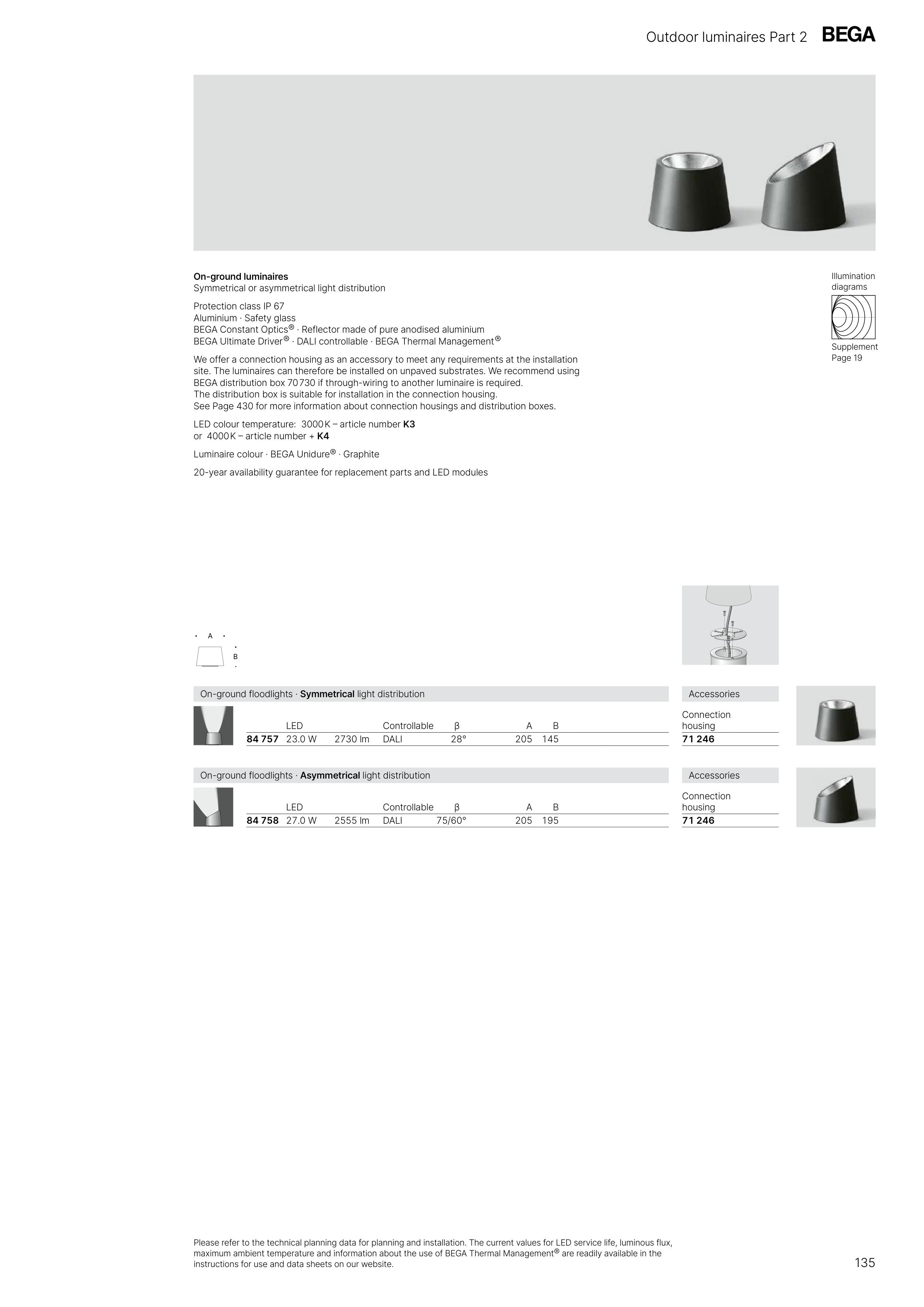

Outdoor luminaires Part 2
On-ground luminaires
Symmetrical or asymmetrical light distribution
Protection class IP 67
Aluminium · Safety glass
BEGA Constant Optics® · Reflector made of pure anodised aluminium
BEGA Ultimate Driver ® · DALI controllable · BEGA Thermal Management ®
We offer a connection housing as an accessory to meet any requirements at the installation
site. The luminaires can therefore be installed on unpaved substrates. We recommend using
BEGA distribution box 70 730 if through-wiring to another luminaire is required.
The distribution box is suitable for installation in the connection housing.
See Page 430 for more information about connection housings and distribution boxes.
LED colour temperature: 3000 K – article number K3
or 4000 K – article number + K4
Luminaire colour · BEGA Unidure® · Graphite
20-year availability guarantee for replacement parts and LED modules
On-ground floodlights · Symmetrical light distribution
Accessories
LED
Controllable
β
A
B
Connection
housing
84 757 23.0 W
2730 lm
DALI
28°
205
145
71 246
On-ground floodlights · Asymmetrical light distribution
Accessories
LED
Controllable
β
A
B
Connection
housing
84 758 27.0 W
2555 lm
DALI
75/60°
205
195
71 246
Supplement
Page 19
Illumination
diagrams
135
