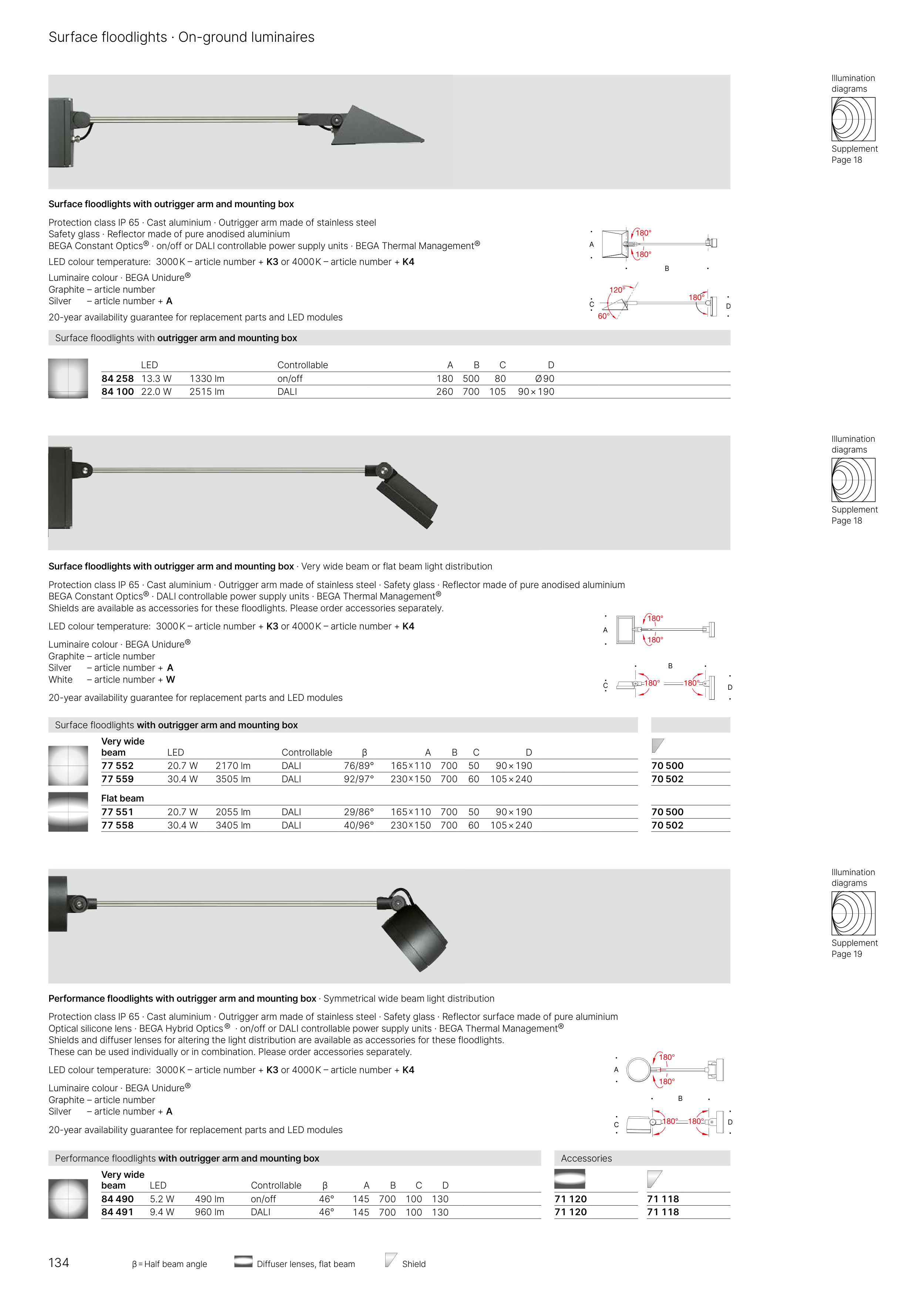

Surface floodlights · On-ground luminaires
β = Half beam angle
Diffuser lenses, flat beam
Shield
Surface floodlights with outrigger arm and mounting box
Protection class IP 65 · Cast aluminium · Outrigger arm made of stainless steel
Safety glass · Reflector made of pure anodised aluminium
BEGA Constant Optics® · on/off or DALI controllable power supply units · BEGA Thermal Management®
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Surface floodlights with outrigger arm and mounting box · Very wide beam or flat beam light distribution
Protection class IP 65 · Cast aluminium · Outrigger arm made of stainless steel · Safety glass · Reflector made of pure anodised aluminium
BEGA Constant Optics® · DALI controllable power supply units · BEGA Thermal Management®
Shields are available as accessories for these floodlights. Please order accessories separately.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
White
– article number + W
20-year availability guarantee for replacement parts and LED modules
Surface floodlights with outrigger arm and mounting box
Very wide
beam
LED
Controllable
β
A
B
C
D
77 552
20.7 W
2170 lm
DALI
76/89°
165 x 110
700
50
90 × 190
70 500
77 559
30.4 W
3505 lm
DALI
92/97°
230 x 150
700
60
105 × 240
70 502
Flat beam
77 551
20.7 W
2055 lm
DALI
29/86°
165 x 110
700
50
90 × 190
70 500
77 558
30.4 W
3405 lm
DALI
40/96°
230 x 150
700
60
105 × 240
70 502
Performance floodlights with outrigger arm and mounting box
Accessories
Very wide
beam
LED
Controllable
β
A
B
C
D
84 490
5.2 W
490 lm
on/off
46°
145
700
100
130
71 120
71 118
84 491
9.4 W
960 lm
DALI
46°
145
700
100
130
71 120
71 118
Performance floodlights with outrigger arm and mounting box · Symmetrical wide beam light distribution
Protection class IP 65 · Cast aluminium · Outrigger arm made of stainless steel · Safety glass · Reflector surface made of pure aluminium
Optical silicone lens · BEGA Hybrid Optics ® · on/off or DALI controllable power supply units · BEGA Thermal Management®
Shields and diffuser lenses for altering the light distribution are available as accessories for these floodlights.
These can be used individually or in combination. Please order accessories separately.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Surface floodlights with outrigger arm and mounting box
LED
Controllable
A
B
C
D
84 258 13.3 W
1330 lm
on/off
180
500
80
Ø 90
84 100 22.0 W
2515 lm
DALI
260
700
105
90 × 190
Supplement
Page 18
Illumination
diagrams
Supplement
Page 18
Illumination
diagrams
Supplement
Page 19
Illumination
diagrams
134
