B
A
C
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management® are readily available in the
instructions for use and data sheets on our website.

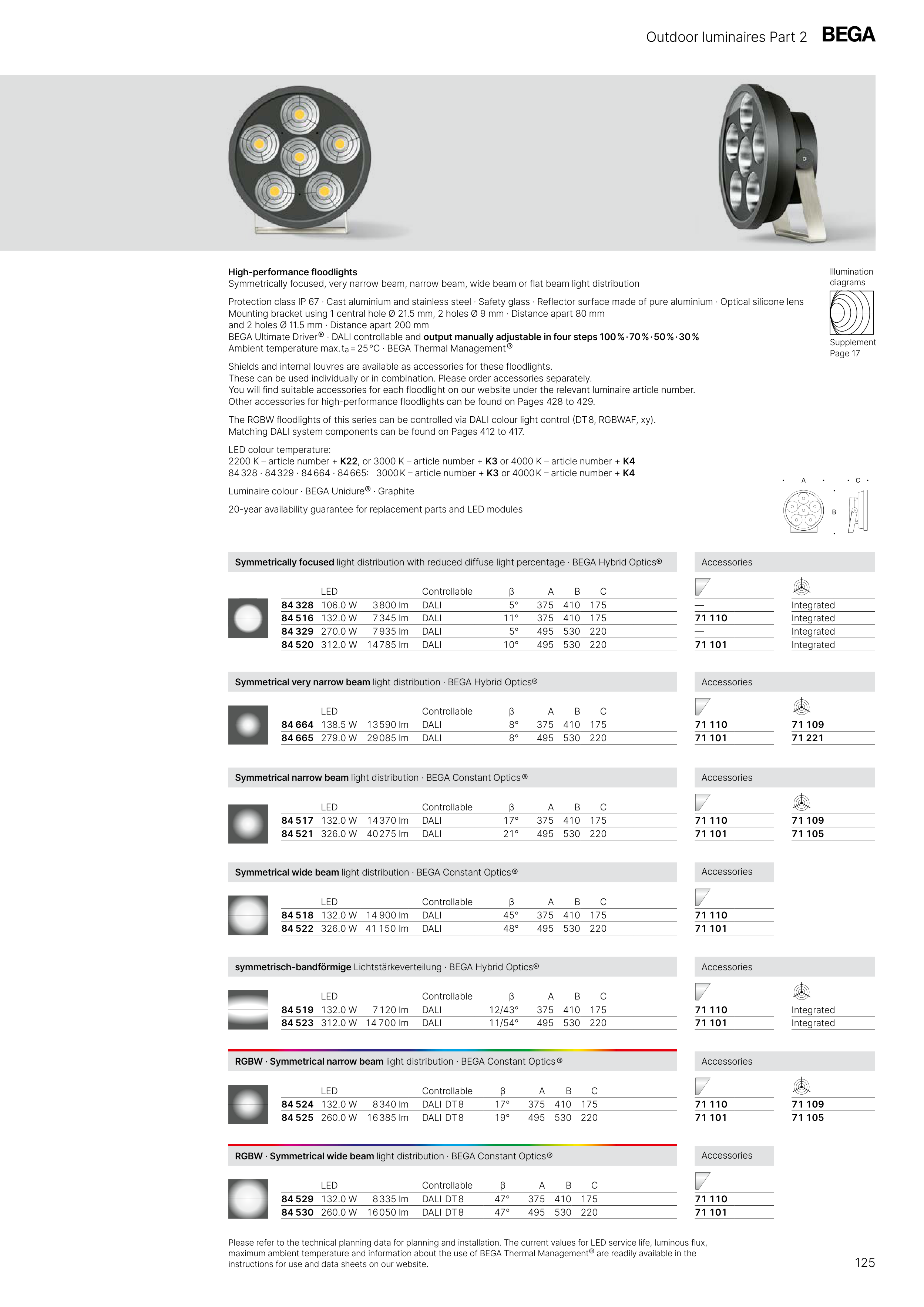

High-performance floodlights
Symmetrically focused, very narrow beam, narrow beam, wide beam or flat beam light distribution
Protection class IP 67 · Cast aluminium and stainless steel · Safety glass · Reflector surface made of pure aluminium · Optical silicone lens
Mounting bracket using 1 central hole Ø 21.5 mm, 2 holes Ø 9 mm · Distance apart 80 mm
and 2 holes Ø 11.5 mm · Distance apart 200 mm
BEGA Ultimate Driver ® · DALI controllable and output manually adjustable in four steps 100 % · 70 % · 50 % · 30 %
Ambient temperature max. ta = 25 °C · BEGA Thermal Management ®
Shields and internal louvres are available as accessories for these floodlights.
These can be used individually or in combination. Please order accessories separately.
You will find suitable accessories for each floodlight on our website under the relevant luminaire article number.
Other accessories for high-performance floodlights can be found on Pages 428 to 429.
The RGBW floodlights of this series can be controlled via DALI colour light control (DT 8, RGBWAF, xy).
Matching DALI system components can be found on Pages 412 to 417.
LED colour temperature:
2200 K – article number + K22, or 3000 K – article number + K3 or 4000 K – article number + K4
84 328 · 84 329 · 84 664 · 84 665: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure® · Graphite
20-year availability guarantee for replacement parts and LED modules
Symmetrically focused light distribution with reduced diffuse light percentage · BEGA Hybrid Optics®
Accessories
LED
Controllable
β
A
B
C
84 328 106.0 W
3 800 lm
DALI
5°
375
410
175
—
Integrated
84 516 132.0 W
7 345 lm
DALI
11°
375
410
175
71 110
Integrated
84 329 270.0 W
7 935 lm
DALI
5°
495
530
220
—
Integrated
84 520 312.0 W
14 785 lm
DALI
10°
495
530
220
71 101
Integrated
Symmetrical narrow beam light distribution · BEGA Constant Optics ®
Accessories
LED
Controllable
β
A
B
C
84 517 132.0 W
14 370 lm
DALI
17°
375
410
175
71 110
71 109
84 521 326.0 W
40 275 lm
DALI
21°
495
530
220
71 101
71 105
Symmetrical wide beam light distribution · BEGA Constant Optics ®
Accessories
LED
Controllable
β
A
B
C
84 518 132.0 W
14 900 lm
DALI
45°
375
410
175
71 110
84 522 326.0 W
41 150 lm
DALI
48°
495
530
220
71 101
symmetrisch-bandförmige Lichtstärkeverteilung · BEGA Hybrid Optics®
Accessories
LED
Controllable
β
A
B
C
84 519 132.0 W
7 120 lm
DALI
12/43°
375
410
175
71 110
Integrated
84 523 312.0 W
14 700 lm
DALI
11/54°
495
530
220
71 101
Integrated
RGBW · Symmetrical narrow beam light distribution · BEGA Constant Optics ®
Accessories
LED
Controllable
β
A
B
C
84 524 132.0 W
8 340 lm
DALI DT 8
17°
375
410
175
71 110
71 109
84 525 260.0 W
16 385 lm
DALI DT 8
19°
495
530
220
71 101
71 105
RGBW · Symmetrical wide beam light distribution · BEGA Constant Optics ®
Accessories
LED
Controllable
β
A
B
C
84 529 132.0 W
8 335 lm
DALI DT 8
47°
375
410
175
71 110
84 530 260.0 W
16 050 lm
DALI DT 8
47°
495
530
220
71 101
Symmetrical very narrow beam light distribution · BEGA Hybrid Optics®
Accessories
LED
Controllable
β
A
B
C
84 664 138.5 W
13 590 lm
DALI
8°
375
410
175
71 110
71 109
84 665 279.0 W
29 085 lm
DALI
8°
495
530
220
71 101
71 221
Outdoor luminaires Part 2
Supplement
Page 17
Illumination
diagrams
125
