B
A
C
1,0 m
B
A
C
D
Gobo floodlights with G ½ threaded connection
LED
Controllable
β
A
B
C
84 975
24.0 W
DALI
10 – 14°
145
210
305
84 976
24.0 W
DALI
14 – 30°
145
210
305
84 977
43.5 W
DALI
14 – 18°
175
240
370
84 978
43.5 W
DALI
20 – 28°
175
240
370
RGBW gobo floodlights with G ½ threaded connection
LED
Controllable
β
A
B
C
84 979
18.0 W
DALI DT 8
10 – 14°
145
210
305
84 980
18.0 W
DALI DT 8
14 – 30°
145
210
305
84 981
39.0 W
DALI DT 8
14 – 18°
175
240
370
84 982
39.0 W
DALI DT 8
20 – 28°
175
240
370
Gobo floodlights with mounting box
LED
Controllable
β
A
B
C
D
84 967
24.0 W
DALI
10 – 14°
145
225
305
100
84 968
24.0 W
DALI
14 – 30°
145
225
305
100
84 969
43.5 W
DALI
14 – 18°
175
255
370
100
84 970
43.5 W
DALI
20 – 28°
175
255
370
100
RGBW gobo floodlights with mounting box
LED
Controllable
β
A
B
C
D
84 971
18.0 W
DALI DT 8
10 – 14°
145
225
305
100
84 972
18.0 W
DALI DT 8
14 – 30°
145
225
305
100
84 973
39.0 W
DALI DT 8
14 – 18°
175
255
370
100
84 974
39.0 W
DALI DT 8
20 – 28°
175
255
370
100

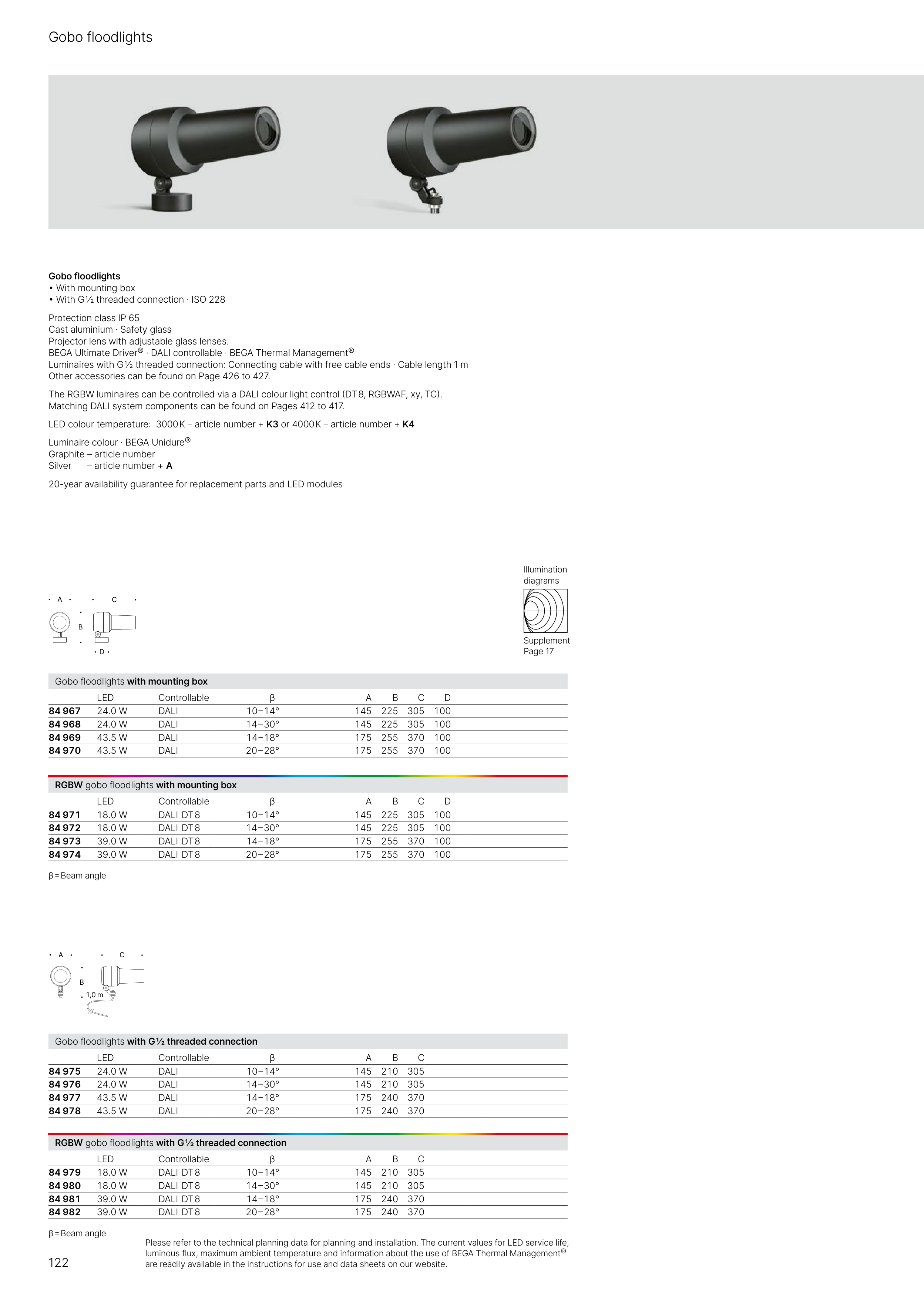

Gobo floodlights
• With mounting box
• With G ½ threaded connection · ISO 228
Protection class IP 65
Cast aluminium · Safety glass
Projector lens with adjustable glass lenses.
BEGA Ultimate Driver® · DALI controllable · BEGA Thermal Management®
Luminaires with G ½ threaded connection: Connecting cable with free cable ends · Cable length 1 m
Other accessories can be found on Page 426 to 427.
The RGBW luminaires can be controlled via a DALI colour light control (DT 8, RGBWAF, xy, TC).
Matching DALI system components can be found on Pages 412 to 417.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Gobo floodlights
β = Beam angle
Please refer to the technical planning data for planning and installation. The current values for LED service life,
luminous flux, maximum ambient temperature and information about the use of BEGA Thermal Management®
are readily available in the instructions for use and data sheets on our website.
β = Beam angle
Supplement
Page 17
Illumination
diagrams
122
