175
145
115
95
250
B
A
C
1,0 m
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management® are readily available in the
instructions for use and data sheets on our website.

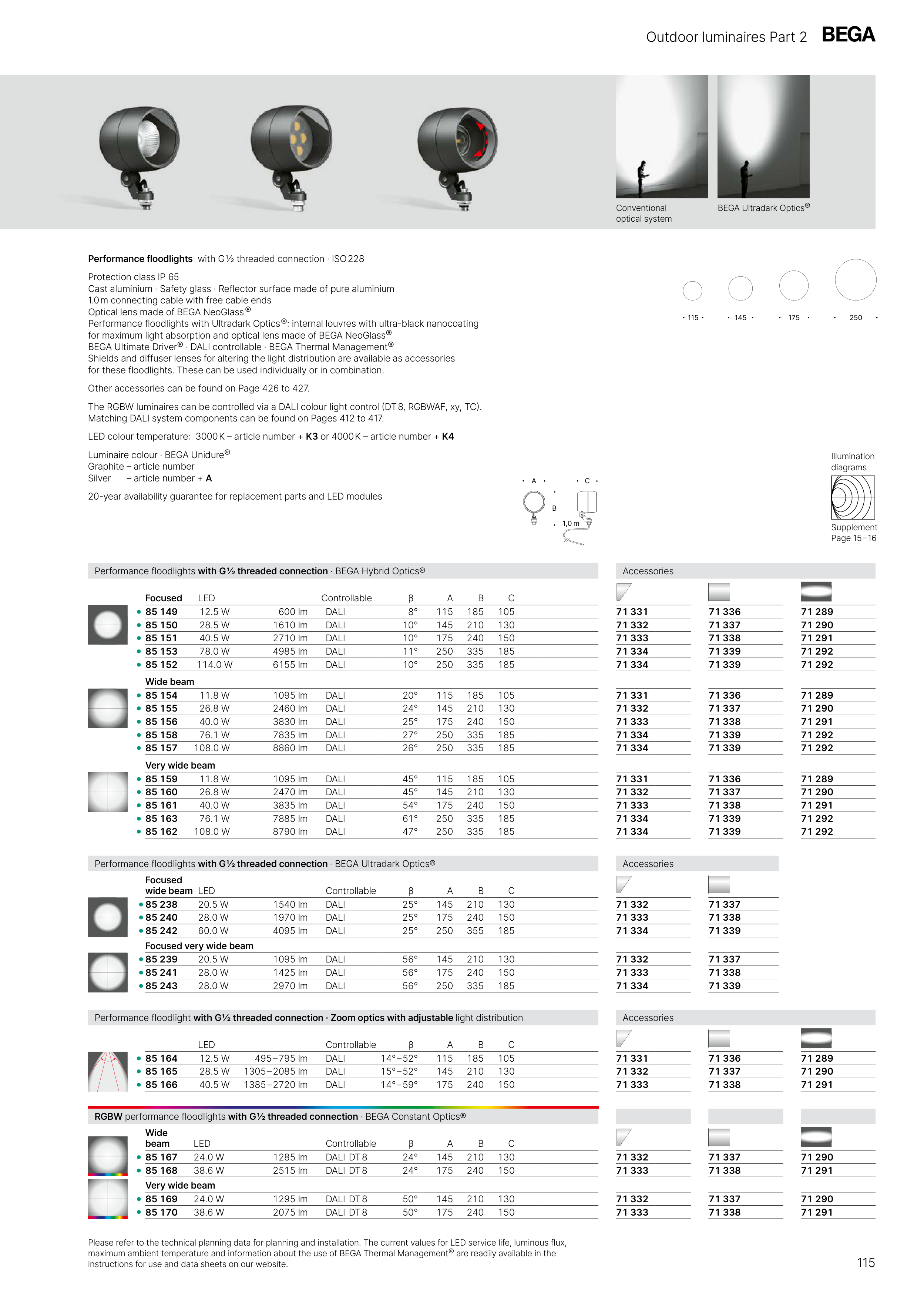

Outdoor luminaires Part 2
RGBW performance floodlights with G ½ threaded connection · BEGA Constant Optics®
Wide
beam
LED
Controllable
β
A
B
C
• 85 167
24.0 W
1285 lm
DALI DT 8
24°
145
210
130
71 332
71 337
71 290
• 85 168
38.6 W
2515 lm
DALI DT 8
24°
175
240
150
71 333
71 338
71 291
Very wide beam
• 85 169
24.0 W
1295 lm
DALI DT 8
50°
145
210
130
71 332
71 337
71 290
• 85 170
38.6 W
2075 lm
DALI DT 8
50°
175
240
150
71 333
71 338
71 291
Performance floodlights with G ½ threaded connection · BEGA Hybrid Optics®
Accessories
Focused
LED
Controllable
β
A
B
C
• 85 149
12.5 W
600 lm
DALI
8°
115
185
105
71 331
71 336
71 289
• 85 150
28.5 W
1610 lm
DALI
10°
145
210
130
71 332
71 337
71 290
• 85 151
40.5 W
2710 lm
DALI
10°
175
240
150
71 333
71 338
71 291
• 85 153
78.0 W
4985 lm
DALI
11°
250
335
185
71 334
71 339
71 292
• 85 152
114.0 W
6155 lm
DALI
10°
250
335
185
71 334
71 339
71 292
Wide beam
• 85 154
11.8 W
1095 lm
DALI
20°
115
185
105
71 331
71 336
71 289
• 85 155
26.8 W
2460 lm
DALI
24°
145
210
130
71 332
71 337
71 290
• 85 156
40.0 W
3830 lm
DALI
25°
175
240
150
71 333
71 338
71 291
• 85 158
76.1 W
7835 lm
DALI
27°
250
335
185
71 334
71 339
71 292
• 85 157
108.0 W
8860 lm
DALI
26°
250
335
185
71 334
71 339
71 292
Very wide beam
• 85 159
11.8 W
1095 lm
DALI
45°
115
185
105
71 331
71 336
71 289
• 85 160
26.8 W
2470 lm
DALI
45°
145
210
130
71 332
71 337
71 290
• 85 161
40.0 W
3835 lm
DALI
54°
175
240
150
71 333
71 338
71 291
• 85 163
76.1 W
7885 lm
DALI
61°
250
335
185
71 334
71 339
71 292
• 85 162
108.0 W
8790 lm
DALI
47°
250
335
185
71 334
71 339
71 292
BEGA Ultradark Optics®
Conventional
optical system
Performance floodlights with G ½ threaded connection · ISO 228
Protection class IP 65
Cast aluminium · Safety glass · Reflector surface made of pure aluminium
1.0 m connecting cable with free cable ends
Optical lens made of BEGA NeoGlass ®
Performance floodlights with Ultradark Optics ®: internal louvres with ultra-black nanocoating
for maximum light absorption and optical lens made of BEGA NeoGlass®
BEGA Ultimate Driver® · DALI controllable · BEGA Thermal Management®
Shields and diffuser lenses for altering the light distribution are available as accessories
for these floodlights. These can be used individually or in combination.
Other accessories can be found on Page 426 to 427.
The RGBW luminaires can be controlled via a DALI colour light control (DT 8, RGBWAF, xy, TC).
Matching DALI system components can be found on Pages 412 to 417.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Performance floodlight with G ½ threaded connection · Zoom optics with adjustable light distribution
Accessories
LED
Controllable
β
A
B
C
• 85 164
12.5 W
495 – 795 lm
DALI
14° – 52°
115
185
105
71 331
71 336
71 289
• 85 165
28.5 W
1305 – 2085 lm
DALI
15° – 52°
145
210
130
71 332
71 337
71 290
• 85 166
40.5 W
1385 – 2720 lm
DALI
14° – 59°
175
240
150
71 333
71 338
71 291
Performance floodlights with G ½ threaded connection · BEGA Ultradark Optics®
Accessories
Focused
wide beam LED
Controllable
β
A
B
C
• 85 238
20.5 W
1540 lm
DALI
25°
145
210
130
71 332
71 337
• 85 240
28.0 W
1970 lm
DALI
25°
175
240
150
71 333
71 338
• 85 242
60.0 W
4095 lm
DALI
25°
250
355
185
71 334
71 339
Focused very wide beam
• 85 239
20.5 W
1095 lm
DALI
56°
145
210
130
71 332
71 337
• 85 241
28.0 W
1425 lm
DALI
56°
175
240
150
71 333
71 338
• 85 243
28.0 W
2970 lm
DALI
56°
250
335
185
71 334
71 339
Supplement
Page 15 – 16
Illumination
diagrams
115
