B
A
C
B
A
C
5,0 m
5,0 m
B
A
C
5,0 m
B
A
C
5,0 m
0,5 m
0,5 m
180
150
120
100
255

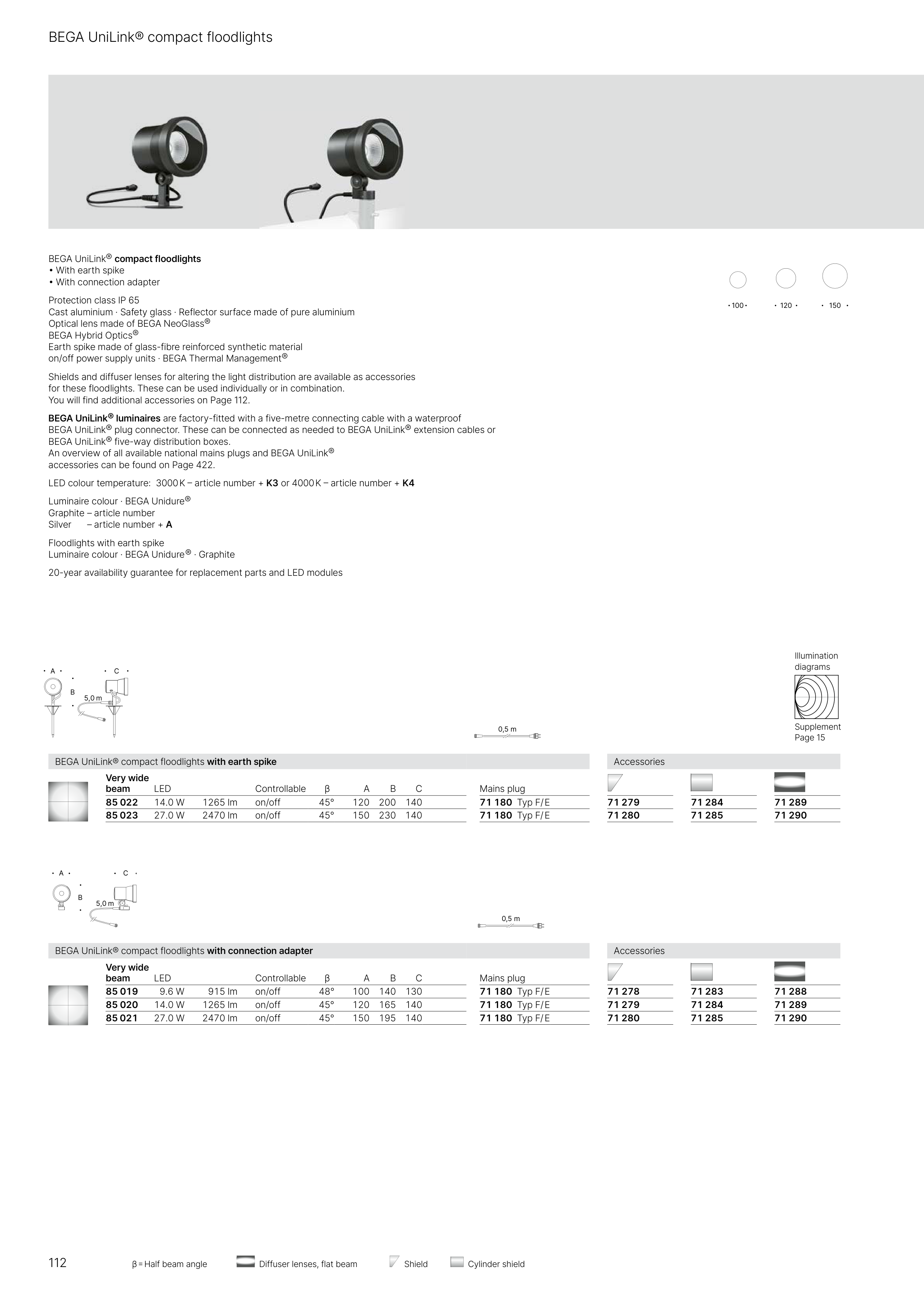

BEGA UniLink® compact floodlights
β = Half beam angle
Diffuser lenses, flat beam
Shield
Cylinder shield
BEGA UniLink® compact floodlights
• With earth spike
• With connection adapter
Protection class IP 65
Cast aluminium · Safety glass · Reflector surface made of pure aluminium
Optical lens made of BEGA NeoGlass®
BEGA Hybrid Optics®
Earth spike made of glass-fibre reinforced synthetic material
on/off power supply units · BEGA Thermal Management®
Shields and diffuser lenses for altering the light distribution are available as accessories
for these floodlights. These can be used individually or in combination.
You will find additional accessories on Page 112.
BEGA UniLink® luminaires are factory-fitted with a five-metre connecting cable with a waterproof
BEGA UniLink® plug connector. These can be connected as needed to BEGA UniLink® extension cables or
BEGA UniLink® five-way distribution boxes.
An overview of all available national mains plugs and BEGA UniLink®
accessories can be found on Page 422.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
Floodlights with earth spike
Luminaire colour · BEGA Unidure ® · Graphite
20-year availability guarantee for replacement parts and LED modules
BEGA UniLink® compact floodlights with earth spike
Accessories
Very wide
beam
LED
Controllable
β
A
B
C
Mains plug
85 022
14.0 W
1265 lm
on/off
45°
120
200
140
71 180 Typ F/ E
71 279
71 284
71 289
85 023
27.0 W
2470 lm
on/off
45°
150
230
140
71 180 Typ F/ E
71 280
71 285
71 290
BEGA UniLink® compact floodlights with connection adapter
Accessories
Very wide
beam
LED
Controllable
β
A
B
C
Mains plug
85 019
9.6 W
915 lm
on/off
48°
100
140
130
71 180 Typ F/ E
71 278
71 283
71 288
85 020
14.0 W
1265 lm
on/off
45°
120
165
140
71 180 Typ F/ E
71 279
71 284
71 289
85 021
27.0 W
2470 lm
on/off
45°
150
195
140
71 180 Typ F/ E
71 280
71 285
71 290
Supplement
Page 15
Illumination
diagrams
112
