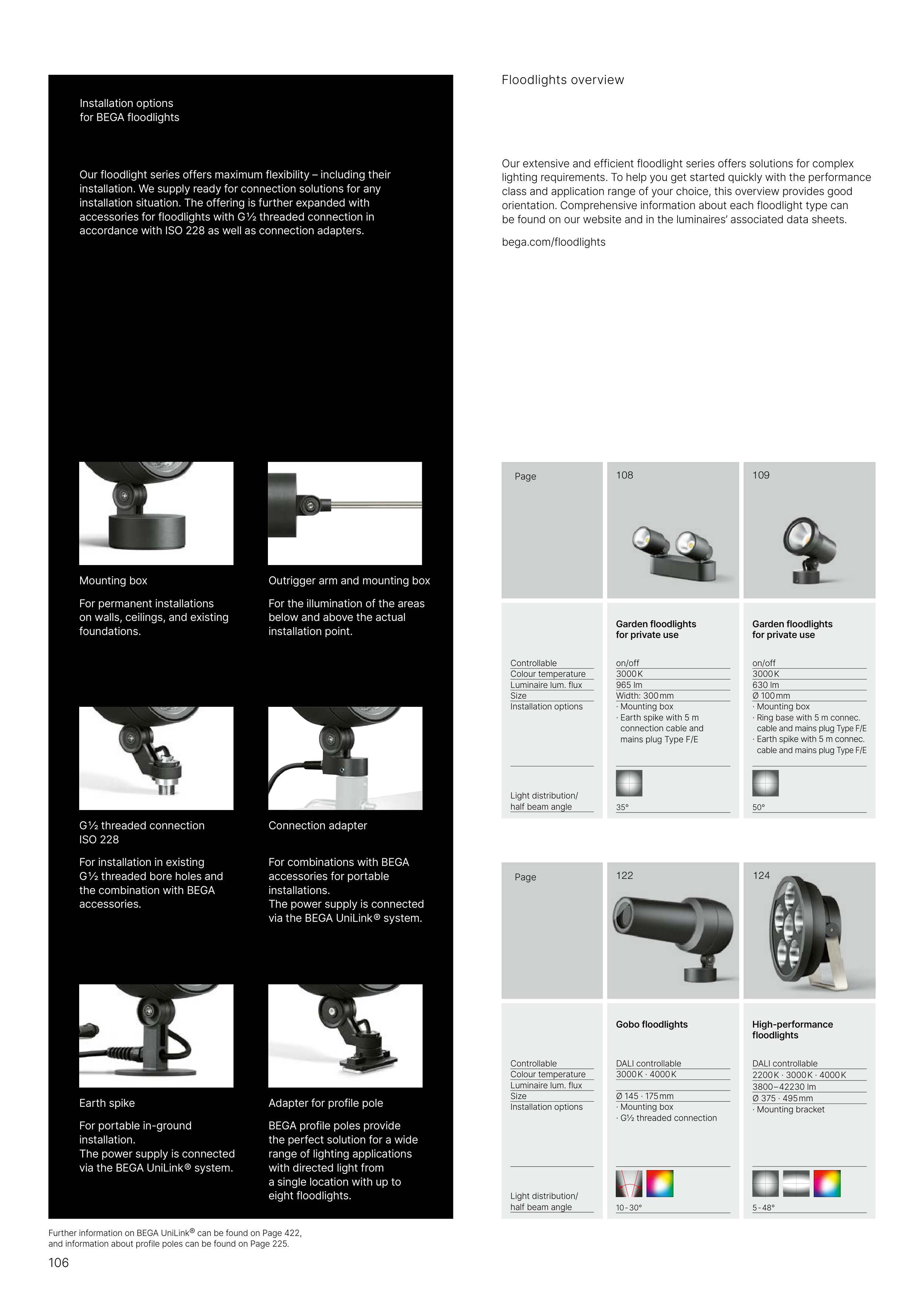

Floodlights overview
Our extensive and efficient floodlight series offers solutions for complex
lighting requirements. To help you get started quickly with the performance
class and application range of your choice, this overview provides good
orientation. Comprehensive information about each floodlight type can
be found on our website and in the luminaires’ associated data sheets.
bega.com/floodlights
Controllable
Colour temperature
Luminaire lum. flux
Size
Installation options
Light distribution/
half beam angle
Garden floodlights
for private use
on/off
3000 K
630 lm
Ø 100 mm
· Mounting box
· Ring base with 5 m connec.
cable and mains plug Type F/E
· Earth spike with 5 m connec.
cable and mains plug Type F/E
50°
Garden floodlights
for private use
on/off
3000 K
965 lm
Width: 300 mm
· Mounting box
· Earth spike with 5 m
connection cable and
mains plug Type F/E
35°
Controllable
Colour temperature
Luminaire lum. flux
Size
Installation options
Light distribution/
half beam angle
High-performance
floodlights
DALI controllable
2200 K · 3000 K · 4000 K
3800 – 42230 lm
Ø 375 · 495 mm
· Mounting bracket
5 - 48°
Further information on BEGA UniLink® can be found on Page 422,
and information about profile poles can be found on Page 225.
Installation options
for BEGA floodlights
Our floodlight series offers maximum flexibility – including their
installation. We supply ready for connection solutions for any
installation situation. The offering is further expanded with
accessories for floodlights with G ½ threaded connection in
accordance with ISO 228 as well as connection adapters.
Mounting box
For permanent installations
on walls, ceilings, and existing
foundations.
Outrigger arm and mounting box
For the illumination of the areas
below and above the actual
installation point.
G ½ threaded connection
ISO 228
For installation in existing
G ½ threaded bore holes and
the combination with BEGA
accessories.
Connection adapter
For combinations with BEGA
accessories for portable
installations.
The power supply is connected
via the BEGA UniLink ® system.
Earth spike
For portable in-ground
installation.
The power supply is connected
via the BEGA UniLink ® system.
Adapter for profile pole
BEGA profile poles provide
the perfect solution for a wide
range of lighting applications
with directed light from
a single location with up to
eight floodlights.
Page
Page
Gobo floodlights
DALI controllable
3000 K · 4000 K
Ø 145 · 175 mm
· Mounting box
· G½ threaded connection
10 - 30°
109
108
124
122
106
