DarkSky
BugSaver
®
DarkSky
BugSaver
®
C
B
A
D
D

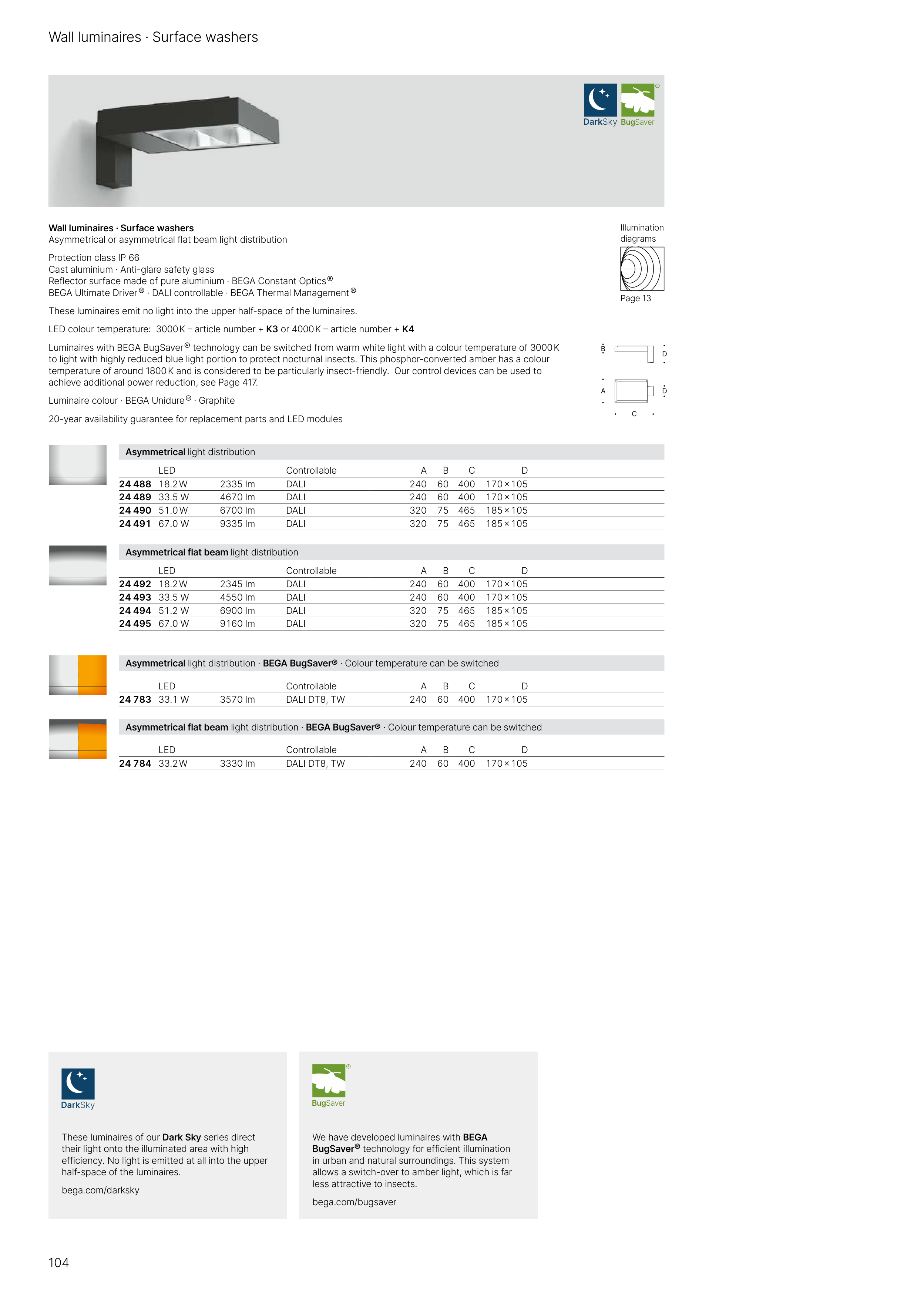

Wall luminaires · Surface washers
Wall luminaires · Surface washers
Asymmetrical or asymmetrical flat beam light distribution
Protection class IP 66
Cast aluminium · Anti-glare safety glass
Reflector surface made of pure aluminium · BEGA Constant Optics ®
BEGA Ultimate Driver ® · DALI controllable · BEGA Thermal Management ®
These luminaires emit no light into the upper half-space of the luminaires.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaires with BEGA BugSaver ® technology can be switched from warm white light with a colour temperature of 3000 K
to light with highly reduced blue light portion to protect nocturnal insects. This phosphor-converted amber has a colour
temperature of around 1800 K and is considered to be particularly insect-friendly. Our control devices can be used to
achieve additional power reduction, see Page 417.
Luminaire colour · BEGA Unidure ® · Graphite
20-year availability guarantee for replacement parts and LED modules
These luminaires of our Dark Sky series direct
their light onto the illuminated area with high
efficiency. No light is emitted at all into the upper
half-space of the luminaires.
bega.com/darksky
We have developed luminaires with BEGA
BugSaver® technology for efficient illumination
in urban and natural surroundings. This system
allows a switch-over to amber light, which is far
less attractive to insects.
bega.com/bugsaver
Asymmetrical light distribution
LED
Controllable
A
B
C
D
24 488 18.2 W
2335 lm
DALI
240
60
400
170 × 105
24 489 33.5 W
4670 lm
DALI
240
60
400
170 × 105
24 490 51.0 W
6700 lm
DALI
320
75
465
185 × 105
24 491 67.0 W
9335 lm
DALI
320
75
465
185 × 105
Asymmetrical flat beam light distribution
LED
Controllable
A
B
C
D
24 492 18.2 W
2345 lm
DALI
240
60
400
170 × 105
24 493 33.5 W
4550 lm
DALI
240
60
400
170 × 105
24 494 51.2 W
6900 lm
DALI
320
75
465
185 × 105
24 495 67.0 W
9160 lm
DALI
320
75
465
185 × 105
Asymmetrical light distribution · BEGA BugSaver® · Colour temperature can be switched
LED
Controllable
A
B
C
D
24 783 33.1 W
3570 lm
DALI DT8, TW
240
60
400
170 × 105
Asymmetrical flat beam light distribution · BEGA BugSaver® · Colour temperature can be switched
LED
Controllable
A
B
C
D
24 784 33.2 W
3330 lm
DALI DT8, TW
240
60
400
170 × 105
Page 13
Illumination
diagrams
104
