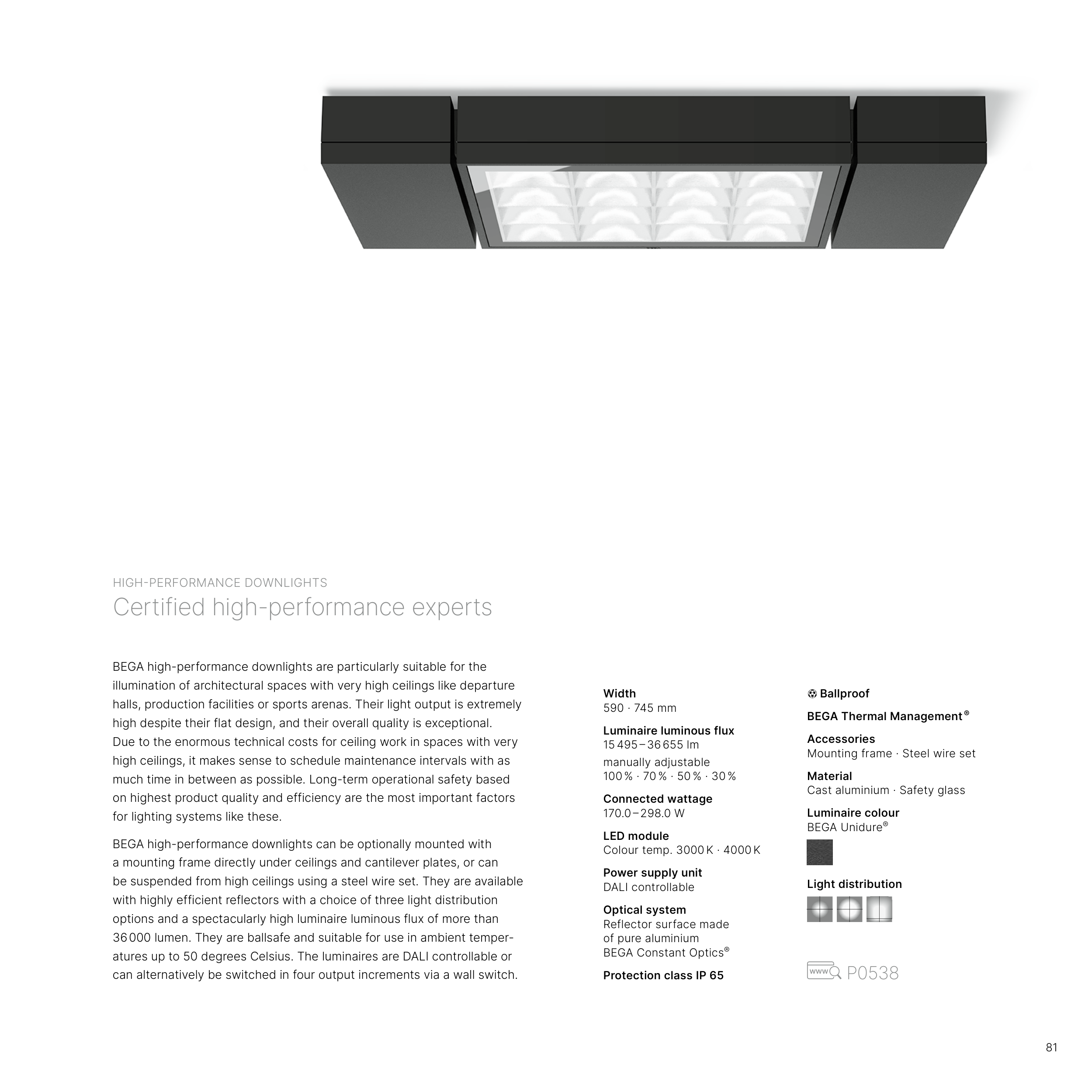

BEGA high-performance downlights are particularly suitable for the
illumination of architectural spaces with very high ceilings like departure
halls, production facilities or sports arenas. Their light output is extremely
high despite their flat design, and their overall quality is exceptional.
Due to the enormous technical costs for ceiling work in spaces with very
high ceilings, it makes sense to schedule maintenance intervals with as
much time in between as possible. Long-term operational safety based
on highest product quality and efficiency are the most important factors
for lighting systems like these.
BEGA high-performance downlights can be optionally mounted with
a mounting frame directly under ceilings and cantilever plates, or can
be suspended from high ceilings using a steel wire set. They are available
with highly efficient reflectors with a choice of three light distribution
options and a spectacularly high luminaire luminous flux of more than
36 000 lumen. They are ballsafe and suitable for use in ambient temper-
atures up to 50 degrees Celsius. The luminaires are DALI controllable or
can alternatively be switched in four output increments via a wall switch.
Width
590 · 745 mm
Luminaire luminous flux
15 495 – 36 655 lm
manually adjustable
100 % · 70 % · 50 % · 30 %
Connected wattage
170.0 – 298.0 W
LED module
Colour temp. 3000 K · 4000 K
Power supply unit
DALI controllable
Optical system
Reflector surface made
of pure aluminium
BEGA Constant Optics®
Protection class IP 65
Ballproof
BEGA Thermal Management ®
Accessories
Mounting frame · Steel wire set
Material
Cast aluminium · Safety glass
Luminaire colour
BEGA Unidure®
Light distribution
HIGH-PERFORMANCE DOWNLIGHTS
Certified high-performance experts
P0538
