Size
Ø 130 · 150 · 190 mm
Luminaire luminous flux
1080 – 4310 lm
Connected wattage
16.5 – 44.0 W
LED module
Colour temperature 3000 K · 4000 K
Power supply unit
DALI controllable
Optical system
Polymer lenses
Internal louvres
Ultra-black nano coating
for maximum light absorption
BEGA Ultradark Optics®
Protection class IP 65
BEGA Thermal Management ®
Material
Cast aluminium · Safety glass
Luminaire colour
BEGA Unidure®
Light distribution
Page 25
There are some lighting situations, where diffuse light is
perceived as particularly irritating. For example, where
light from the ceiling is meant to ensure the targeted
illumination of the area directly below the luminaires, while
the surrounding are should remain dark. For use cases like
these, we developed our downlights with BEGA Ultradark
Optics®. These are luminaires with symmetrically focused
light distribution with minimal glare and a maximum of light
output.
As a supplement to our downlight series, we created three
sizes with symmetrically focused, wide beam or very
wide beam light distribution that reduce the diffuse light
percentage to a minimum. The glare suppression louvres of
the multi-lens optics ensure a maximum of glare suppression
due to their ultra black coating.
The luminaires furthermore feature a compact design, state-
of-the-art technology and excellent component quality,
designed for long-term operational safety.

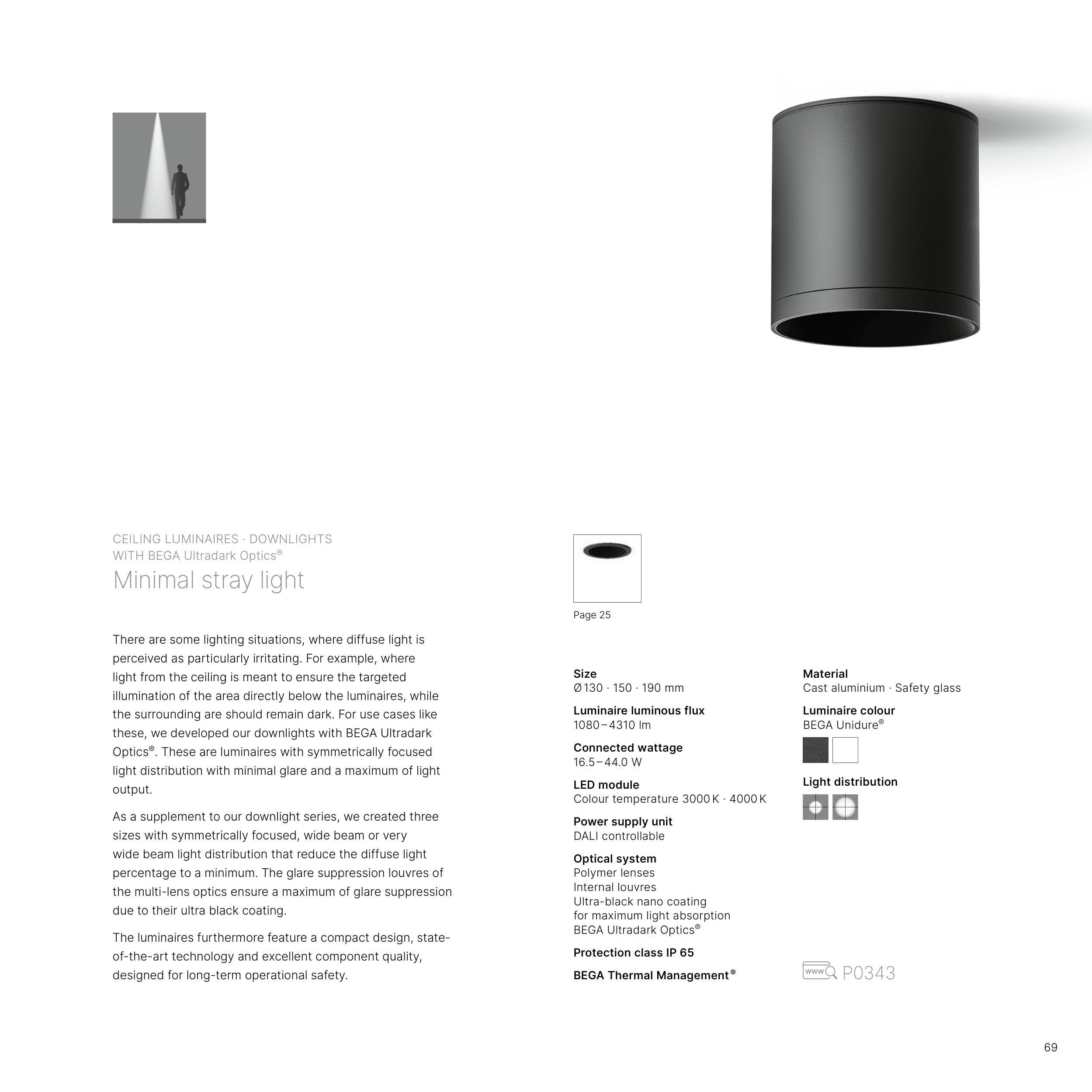

CEILING LUMINAIRES · DOWNLIGHTS
WITH BEGA Ultradark Optics®
Minimal stray light
P0343
69
