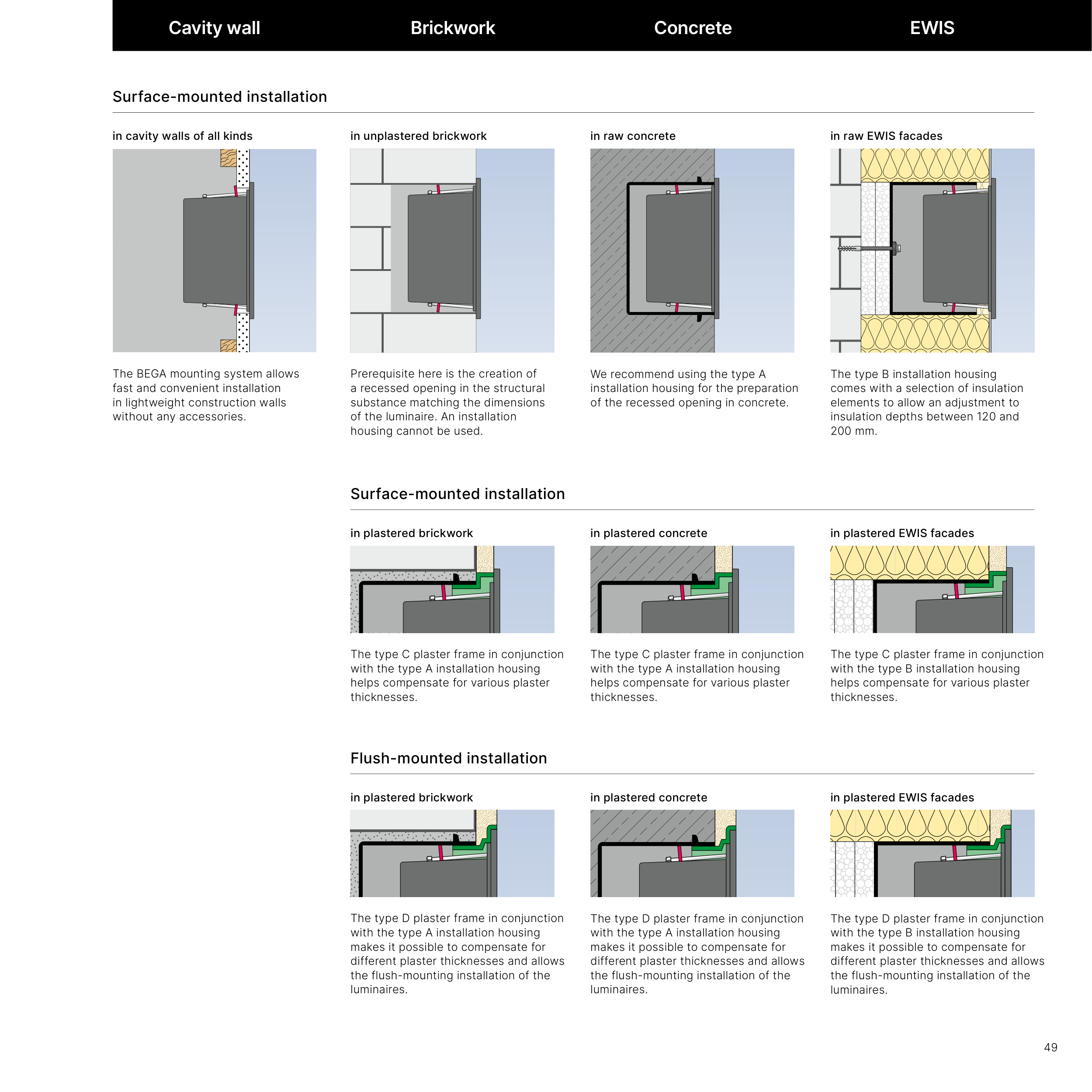

Surface-mounted installation
Surface-mounted installation
Flush-mounted installation
The BEGA mounting system allows
fast and convenient installation
in lightweight construction walls
without any accessories.
Prerequisite here is the creation of
a recessed opening in the structural
substance matching the dimensions
of the luminaire. An installation
housing cannot be used.
The type C plaster frame in conjunction
with the type A installation housing
helps compensate for various plaster
thicknesses.
The type D plaster frame in conjunction
with the type A installation housing
makes it possible to compensate for
different plaster thicknesses and allows
the flush-mounting installation of the
luminaires.
We recommend using the type A
installation housing for the preparation
of the recessed opening in concrete.
The type C plaster frame in conjunction
with the type A installation housing
helps compensate for various plaster
thicknesses.
The type D plaster frame in conjunction
with the type A installation housing
makes it possible to compensate for
different plaster thicknesses and allows
the flush-mounting installation of the
luminaires.
The type B installation housing
comes with a selection of insulation
elements to allow an adjustment to
insulation depths between 120 and
200 mm.
The type C plaster frame in conjunction
with the type B installation housing
helps compensate for various plaster
thicknesses.
The type D plaster frame in conjunction
with the type B installation housing
makes it possible to compensate for
different plaster thicknesses and allows
the flush-mounting installation of the
luminaires.
Cavity wall
Brickwork
Concrete
EWIS
in cavity walls of all kinds
in unplastered brickwork
in plastered brickwork
in plastered brickwork
in raw concrete
in plastered concrete
in plastered concrete
in raw EWIS facades
in plastered EWIS facades
in plastered EWIS facades
