Aluminium luminaire poles
according to DIN EN 40
Pole top diameter
Ø 48 · 60 · 82 · 100 · 120 mm
Pole height
600 - 4500 mm
Installation option
• Base plate or
• Anchorage unit
Material
Aluminium, cast aluminium
Surface lacquered
Colour
BEGA Unidure®
Pole top diameter
Ø 60 · 76 · 82 mm
Pole height
2000 – 5000 mm
Installation option
• Base plate or
• Anchorage unit
Material
Aluminium, cast aluminium
Surface lacquered
Colour
BEGA Unidure®
Group 11
Group 12
Group 32
Group 31
P0948
P0824

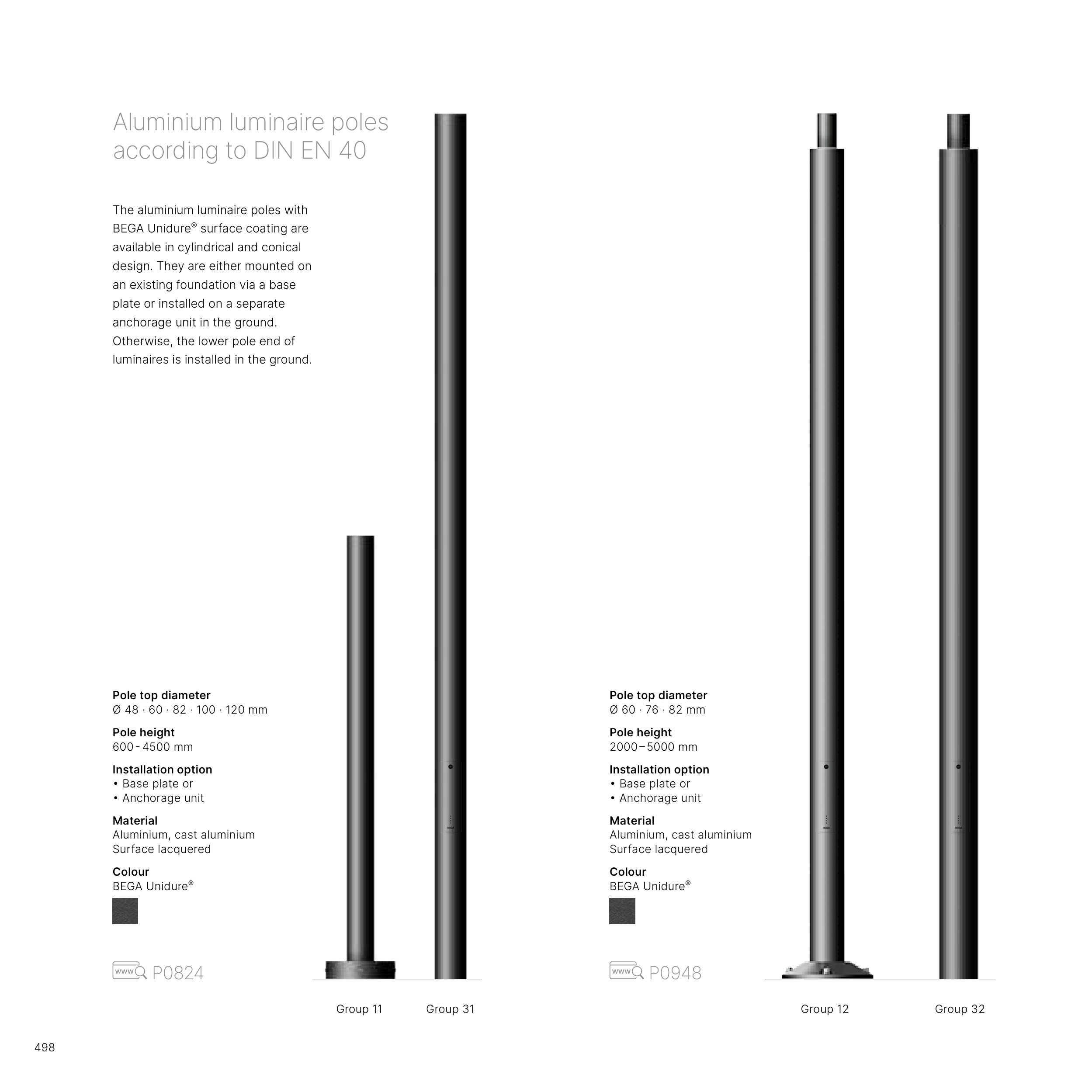

The aluminium luminaire poles with
BEGA Unidure® surface coating are
available in cylindrical and conical
design. They are either mounted on
an existing foundation via a base
plate or installed on a separate
anchorage unit in the ground.
Otherwise, the lower pole end of
luminaires is installed in the ground.
498
