For decades, BEGA luminaires with this design have featured as
exemplary luminous architectural details on numerous buildings
around the world. They are and have always been characteristic
of a whole series of luminaires in our range of products and
became models for outdoor luminaires in general.
The current versions of the recessed luminaires on Pages 50 to
63 are designed specifically for our LED technology, have the
same installation dimensions as their predecessors. A retrofit
replacement is therefore easy, and will not require any changes
to the installation.
All luminaires are characterised by a narrow luminaire frame
without screws. The extremely low maintenance requirements
of our LED technology enables a new product concept with
a much simpler and faster installation. The electrical connection
of all luminaires is done quickly and easily before installation in
the structure.
We have a range of perfectly matched accessories available
for various installation situations. During the planning phase,
please pay attention to the instructions for use for the installation
housings and plaster frames available on our website.
Installation in cavity walls
All recessed luminaires come with the BEGA mounting system and
can be flush-mounted in cavity walls of all kinds without any need
for additional accessories.
Installation in brickwork or concrete
Use the type A installation housing to create the perfect recessed
opening for installations in brickwork or concrete. Two plaster
frames are available if brickwork or concrete is to be subsequently
plastered, both of which allow for various plaster thicknesses.
The type C plaster frame allows a surface-mounted installation of
the luminaires. The type D plaster frame allows a flush-mounted
installation of the luminaires.
Installation in external wall insulation systems (EWIS)
We offer a system solution certified by the independent German
Passive House Institute (PHI) for installation in external wall
insulation systems. In conjunction with the included insulation
elements and the modular design, the type B installation housing
can be flexibly adjusted for insulation depths between 120 and
200 mm. The luminaires can be either surface-mounted or
flush-mounted in plastered EWIS façades. The type C plaster
frame allows the surface-mounted installation of the luminaires.
With the type D plaster frame, the luminaires are installed flush.

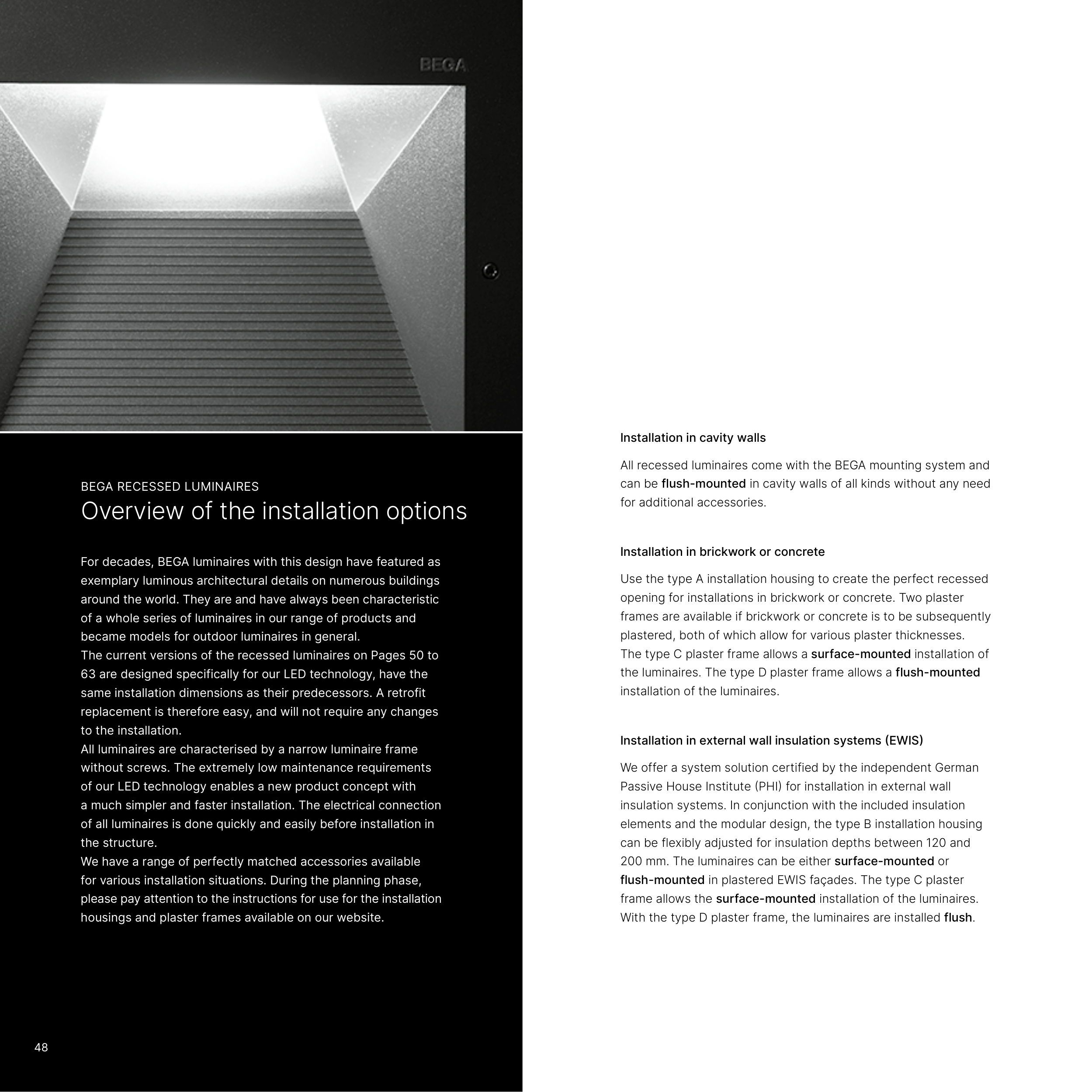

BEGA RECESSED LUMINAIRES
Overview of the installation options
