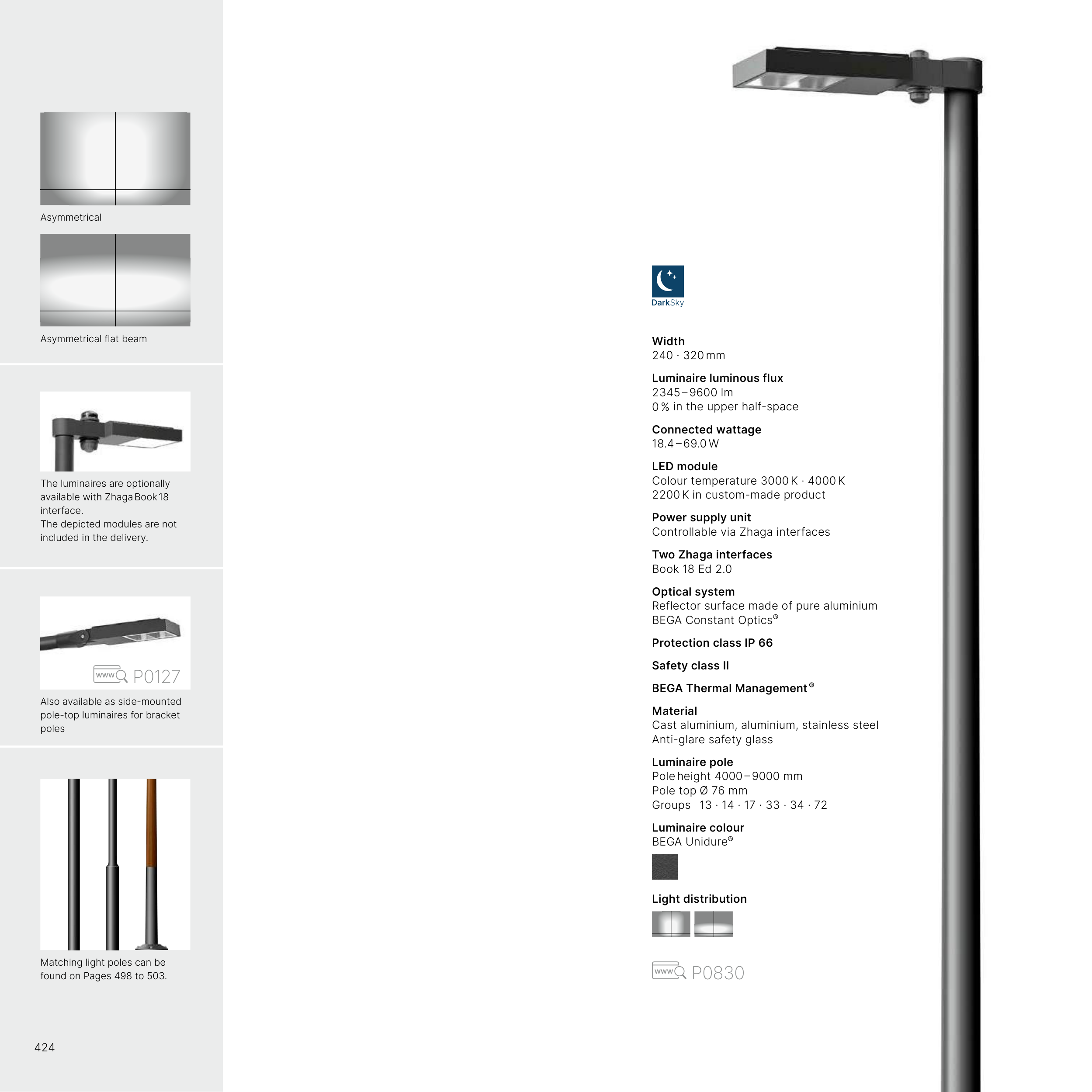

DarkSky
Width
240 · 320 mm
Luminaire luminous flux
2345 – 9600 lm
0 % in the upper half-space
Connected wattage
18.4 – 69.0 W
LED module
Colour temperature 3000 K · 4000 K
2200 K in custom-made product
Power supply unit
Controllable via Zhaga interfaces
Two Zhaga interfaces
Book 18 Ed 2.0
Optical system
Reflector surface made of pure aluminium
BEGA Constant Optics®
Protection class IP 66
Safety class II
BEGA Thermal Management ®
Material
Cast aluminium, aluminium, stainless steel
Anti-glare safety glass
Luminaire pole
Pole height 4000 – 9000 mm
Pole top Ø 76 mm
Groups 13 · 14 · 17 · 33 · 34 · 72
Luminaire colour
BEGA Unidure®
Light distribution
Also available as side-mounted
pole-top luminaires for bracket
poles
Asymmetrical flat beam
Asymmetrical
P0830
The luminaires are optionally
available with Zhaga Book 18
interface.
The depicted modules are not
included in the delivery.
Matching light poles can be
found on Pages 498 to 503.
P0127
424
