Size
Ø 510 mm, for luminaire tube: Ø 135 mm
Height
550 mm
For pole height of
3590 mm
Luminaire luminous flux
2515 – 2705 lm
Connected wattage
25.8 W
LED module
Colour temperature 3000 K · 4000 K
2200 K in custom-made product
Power supply unit
BEGA Ultimate Driver ®
DALI controllable
Optical system
Pure anodised aluminium
reflector
Protection class IP 65
Safety class II
BEGA Thermal Management ®
Material
Cast aluminium, aluminium,
stainless steel · Translucent
white synthetic cover or clear
synthetic cover
Luminaire colour
BEGA Unidure®
P0627
Light distribution

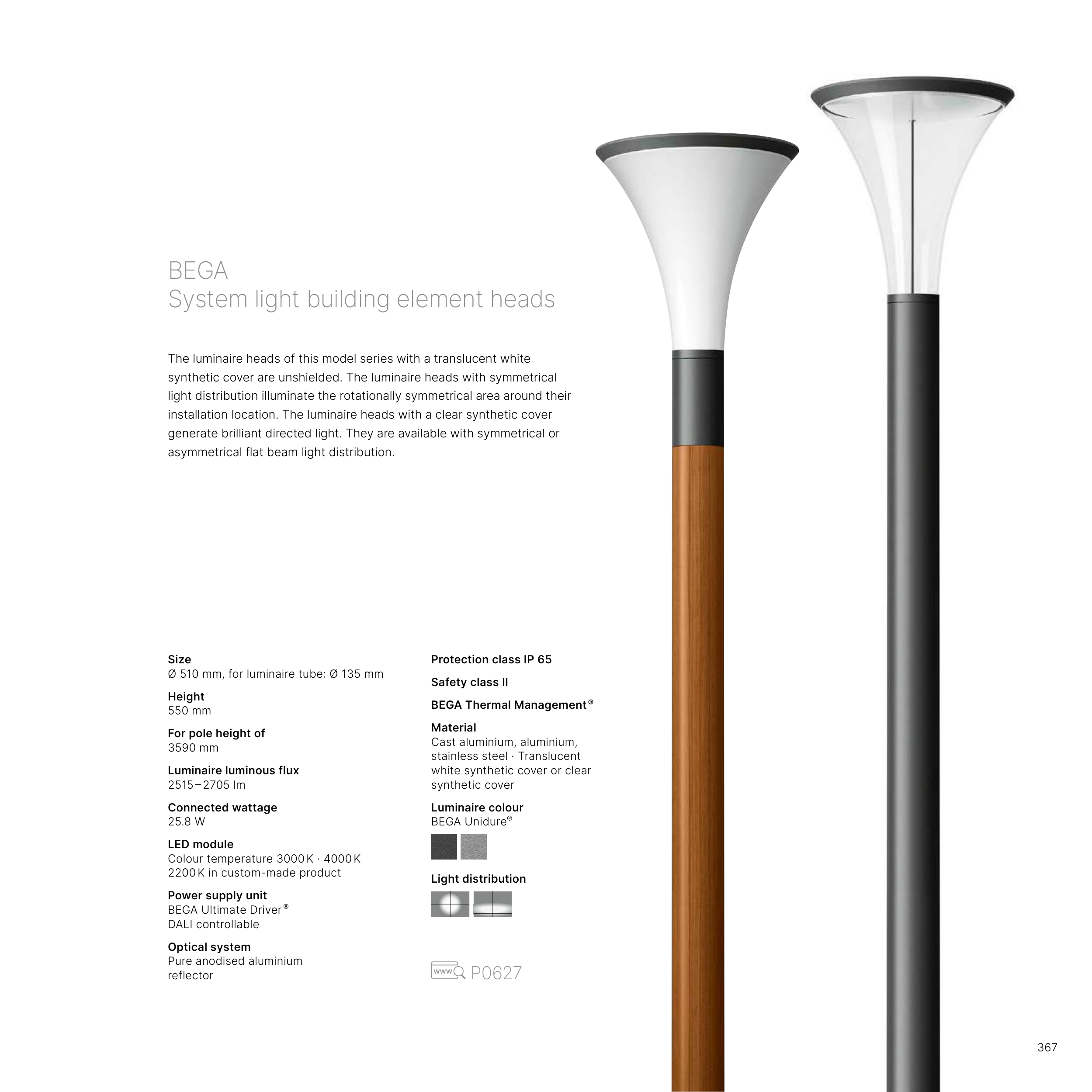

BEGA
System light building element heads
The luminaire heads of this model series with a translucent white
synthetic cover are unshielded. The luminaire heads with symmetrical
light distribution illuminate the rotationally symmetrical area around their
installation location. The luminaire heads with a clear synthetic cover
generate brilliant directed light. They are available with symmetrical or
asymmetrical flat beam light distribution.
367
