Ø

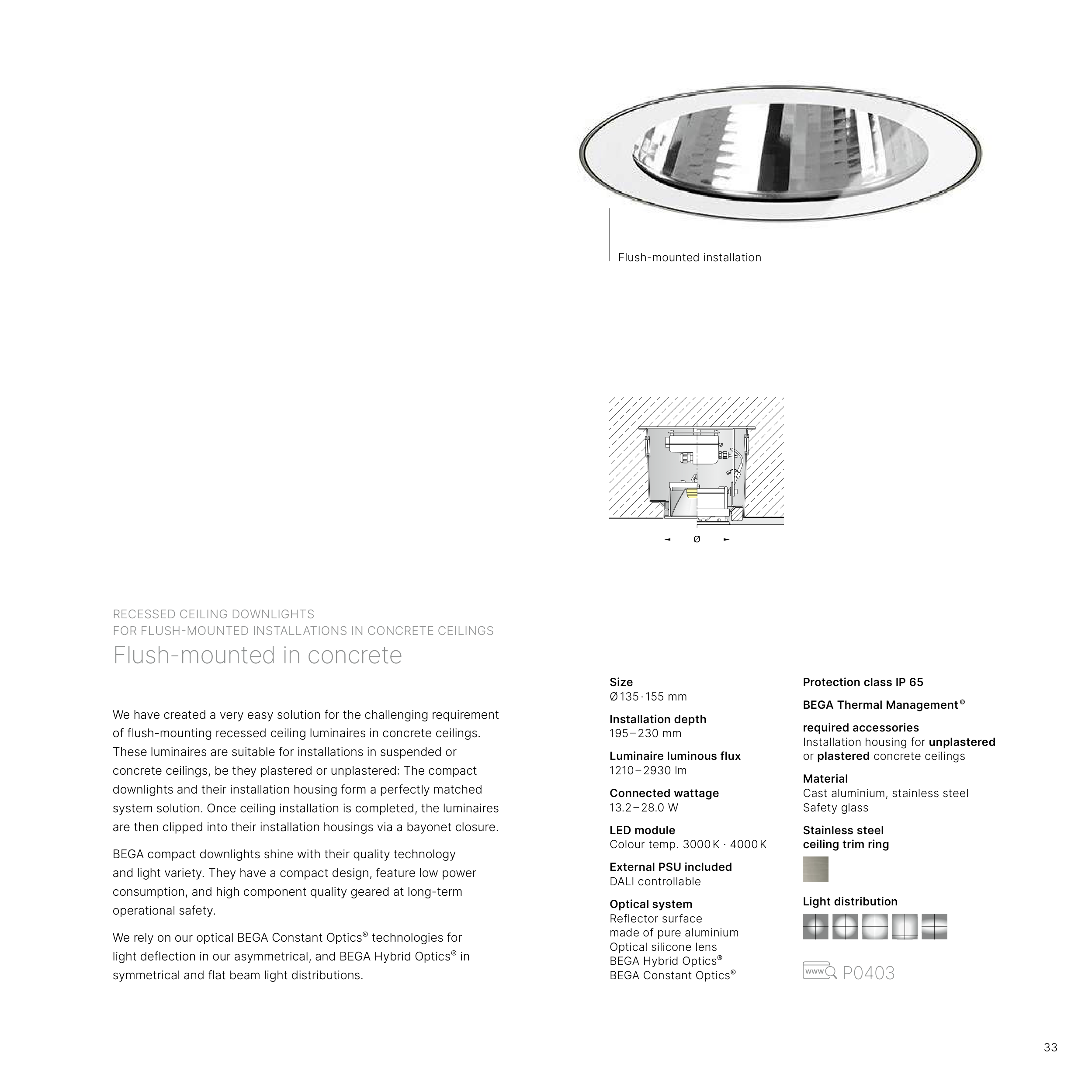

We have created a very easy solution for the challenging requirement
of flush-mounting recessed ceiling luminaires in concrete ceilings.
These luminaires are suitable for installations in suspended or
concrete ceilings, be they plastered or unplastered: The compact
downlights and their installation housing form a perfectly matched
system solution. Once ceiling installation is completed, the luminaires
are then clipped into their installation housings via a bayonet closure.
BEGA compact downlights shine with their quality technology
and light variety. They have a compact design, feature low power
consumption, and high component quality geared at long-term
operational safety.
We rely on our optical BEGA Constant Optics® technologies for
light deflection in our asymmetrical, and BEGA Hybrid Optics® in
symmetrical and flat beam light distributions.
Size
Ø 135 · 155 mm
Installation depth
195 – 230 mm
Luminaire luminous flux
1210 – 2930 lm
Connected wattage
13.2 – 28.0 W
LED module
Colour temp. 3000 K · 4000 K
External PSU included
DALI controllable
Optical system
Reflector surface
made of pure aluminium
Optical silicone lens
BEGA Hybrid Optics®
BEGA Constant Optics®
Protection class IP 65
BEGA Thermal Management ®
required accessories
Installation housing for unplastered
or plastered concrete ceilings
Material
Cast aluminium, stainless steel
Safety glass
Stainless steel
ceiling trim ring
Light distribution
RECESSED CEILING DOWNLIGHTS
FOR FLUSH-MOUNTED INSTALLATIONS IN CONCRETE CEILINGS
Flush-mounted in concrete
Flush-mounted installation
P0403
33
