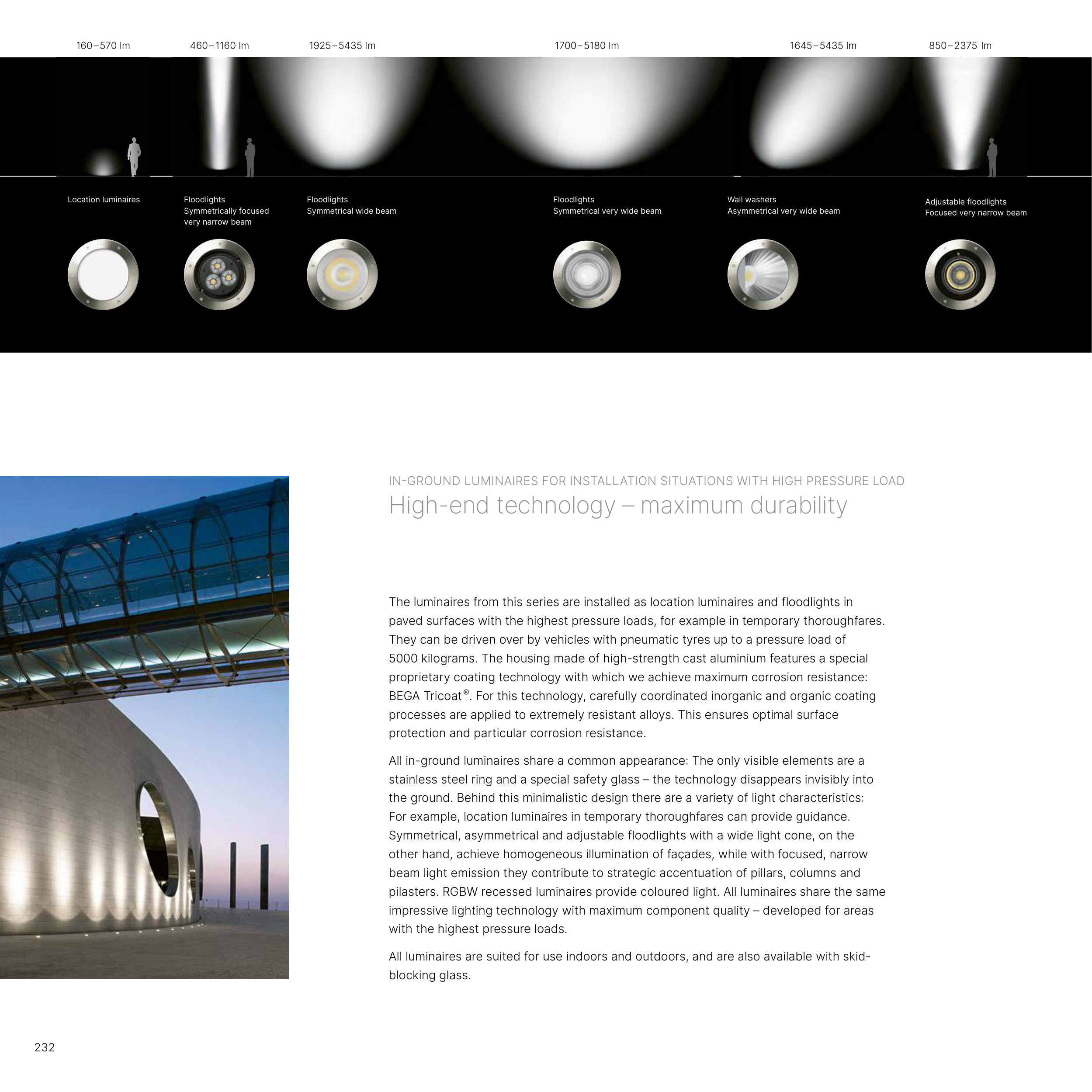

IN-GROUND LUMINAIRES FOR INSTALLATION SITUATIONS WITH HIGH PRESSURE LOAD
High-end technology – maximum durability
The luminaires from this series are installed as location luminaires and floodlights in
paved surfaces with the highest pressure loads, for example in temporary thoroughfares.
They can be driven over by vehicles with pneumatic tyres up to a pressure load of
5000 kilograms. The housing made of high-strength cast aluminium features a special
proprietary coating technology with which we achieve maximum corrosion resistance:
BEGA Tricoat ®. For this technology, carefully coordinated inorganic and organic coating
processes are applied to extremely resistant alloys. This ensures optimal surface
protection and particular corrosion resistance.
All in-ground luminaires share a common appearance: The only visible elements are a
stainless steel ring and a special safety glass – the technology disappears invisibly into
the ground. Behind this minimalistic design there are a variety of light characteristics:
For example, location luminaires in temporary thoroughfares can provide guidance.
Symmetrical, asymmetrical and adjustable floodlights with a wide light cone, on the
other hand, achieve homogeneous illumination of façades, while with focused, narrow
beam light emission they contribute to strategic accentuation of pillars, columns and
pilasters. RGBW recessed luminaires provide coloured light. All luminaires share the same
impressive lighting technology with maximum component quality – developed for areas
with the highest pressure loads.
All luminaires are suited for use indoors and outdoors, and are also available with skid-
blocking glass.
1925 – 5435 lm
160 – 570 lm
460 – 1160 lm
850 – 2375 lm
1645 – 5435 lm
1700 – 5180 lm
Floodlights
Symmetrically focused
very narrow beam
Location luminaires
Floodlights
Symmetrical wide beam
Floodlights
Symmetrical very wide beam
Wall washers
Asymmetrical very wide beam
Adjustable floodlights
Focused very narrow beam
232
