193
195
207
191
209
Performance floodlights
on/off · DALI controllable
3000 K · 4000 K
380 – 8270 lm
Ø 145 · 175 · 210 · 250 mm
· with mounting box
· with outrigger arm and mount. box
· with G ½ threaded connection
· with BEGA UniLink ® conn. adapter
· with BEGA UniLink ® earth spike
· with adapter for profile poles
5 – 64°
Façade floodlights
On-ground floodlights
DALI controllable
3000 K · 4000 K
485 – 2815 lm
Width: 520 · 1000 mm
· with mounting plate
· with wall outrigger arm
DALI controllable
3000 K · 4000 K
2555 · 2810 lm
Ø 205 mm
· with mounting plate
28°
Gobo floodlight
DALI controllable
3000 K · 4000 K
Ø 145 · 175 mm
· with mounting box
· with G ½ threaded connection
· with adapter for profile poles
10 – 30°
Compact floodlights
on/off · DALI controllable
3000 K · 4000 K
495 – 8990 lm
Ø 100 · 120 · 150 · 180 · 255 mm
· with mounting box
· with G ½ threaded connection
· with BEGA UniLink ® conn. adapter
· with BEGA UniLink ® earth spike
· with adapter for profile poles
8 – 61°
14 – 59°
Mounting box
For permanent installations
on walls, ceilings and existing
foundations.
Outrigger arm and mounting box
For the illumination of the areas
below and above the actual
installation point.
G ½ threaded connection · ISO 228
For the installation in existing G ½
threaded holes and the combination
with BEGA accessories.
Connection adapter
For combinations with BEGA
accessories for non-permanent
installations. The power supply is
connected via the BEGA UniLink ®
system.
Earth spike
For portable in-ground installation.
The power supply is connected via
the BEGA UniLink ® system.
Adapter for profile pole
BEGA profile poles provide the
perfect solution for a wide range of
lighting applications with directed
light from a single location with up
to eight floodlights.
More information on BEGA UniLink ® can be found from Page 326.

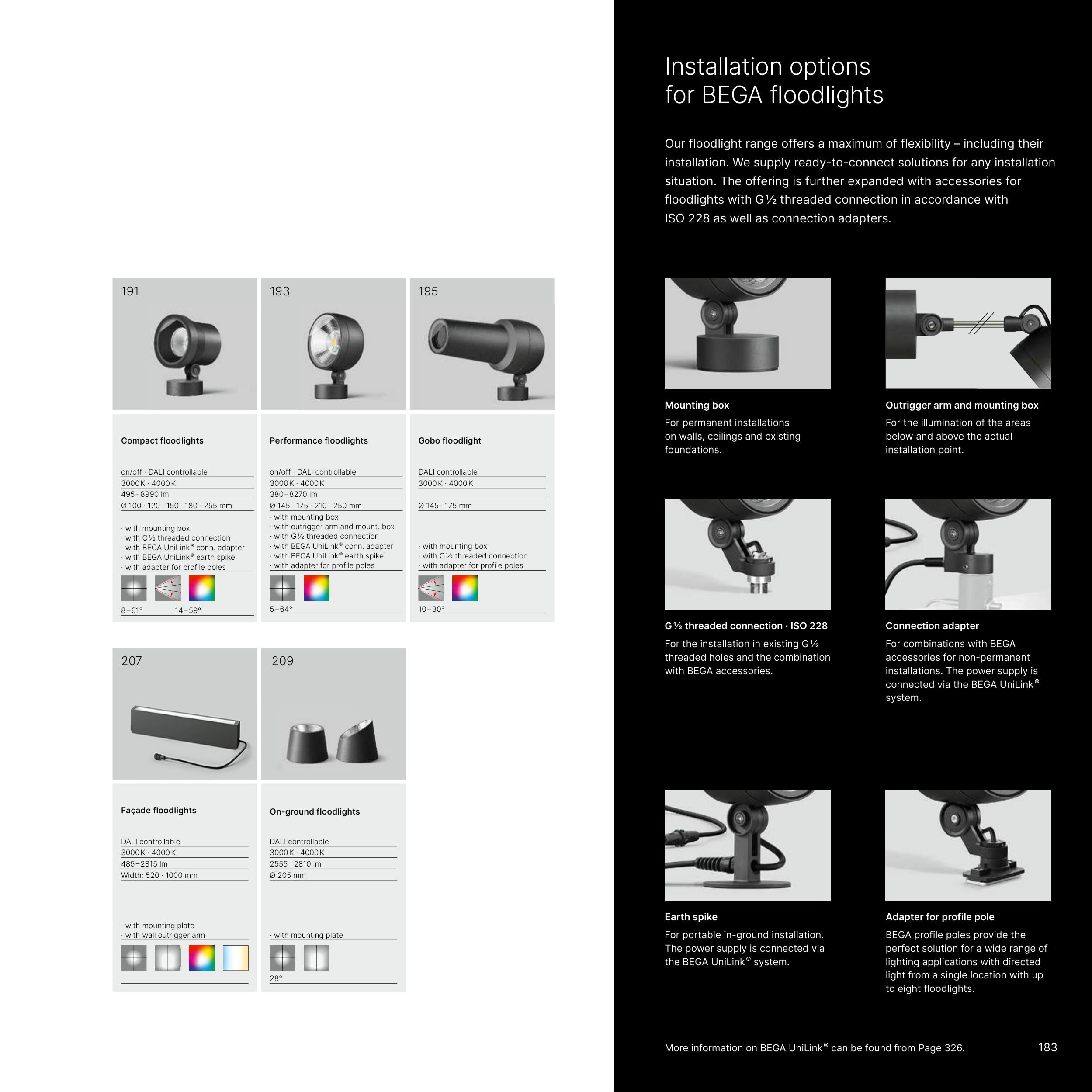

Installation options
for BEGA floodlights
Our floodlight range offers a maximum of flexibility – including their
installation. We supply ready-to-connect solutions for any installation
situation. The offering is further expanded with accessories for
floodlights with G ½ threaded connection in accordance with
ISO 228 as well as connection adapters.
183
