DarkSky
A
B
C

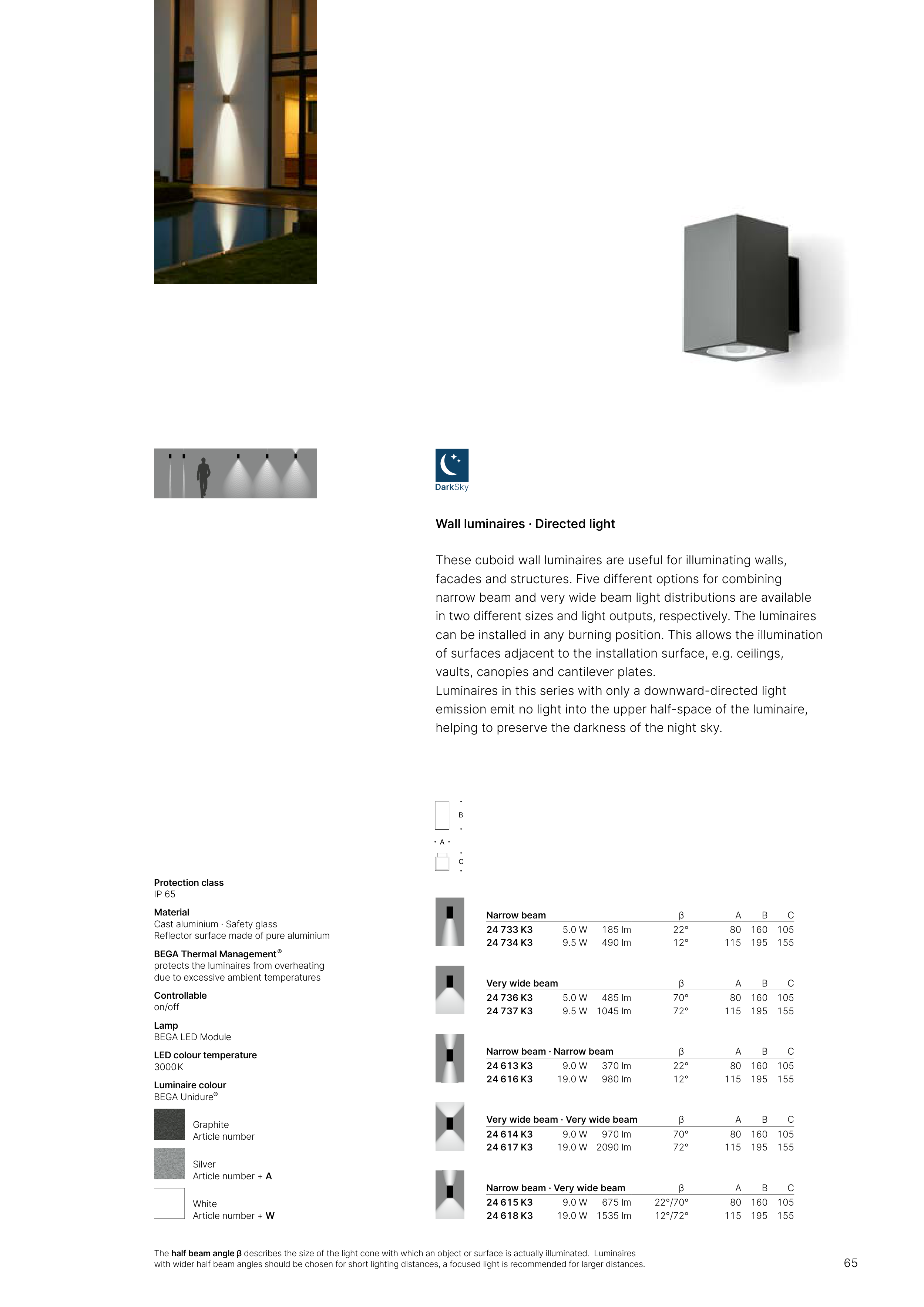

Wall luminaires · Directed light
These cuboid wall luminaires are useful for illuminating walls,
facades and structures. Five different options for combining
narrow beam and very wide beam light distributions are available
in two different sizes and light outputs, respectively. The luminaires
can be installed in any burning position. This allows the illumination
of surfaces adjacent to the installation surface, e.g. ceilings,
vaults, canopies and cantilever plates.
Luminaires in this series with only a downward-directed light
emission emit no light into the upper half-space of the luminaire,
helping to preserve the darkness of the night sky.
Protection class
IP 65
Material
Cast aluminium · Safety glass
Reflector surface made of pure aluminium
BEGA Thermal Management ®
protects the luminaires from overheating
due to excessive ambient temperatures
Controllable
on/off
Lamp
BEGA LED Module
LED colour temperature
3000 K
Luminaire colour
BEGA Unidure®
Graphite
Article number
Silver
Article number + A
White
Article number + W
The half beam angle β describes the size of the light cone with which an object or surface is actually illuminated. Luminaires
with wider half beam angles should be chosen for short lighting distances, a focused light is recommended for larger distances.
Narrow beam
β
A
B
C
24 733 K3
5.0 W
185 lm
22°
80
160
105
24 734 K3
9.5 W
490 lm
12°
115
195
155
Very wide beam
β
A
B
C
24 736 K3
5.0 W
485 lm
70°
80
160
105
24 737 K3
9.5 W
1045 lm
72°
115
195
155
Narrow beam · Narrow beam
β
A
B
C
24 613 K3
9.0 W
370 lm
22°
80
160
105
24 616 K3
19.0 W
980 lm
12°
115
195
155
Very wide beam · Very wide beam
β
A
B
C
24 614 K3
9.0 W
970 lm
70°
80
160
105
24 617 K3
19.0 W
2090 lm
72°
115
195
155
Narrow beam · Very wide beam
β
A
B
C
24 615 K3
9.0 W
675 lm
22°/70°
80
160
105
24 618 K3
19.0 W
1535 lm
12°/72°
115
195
155
65
