A
B
Protection class
IP 65
Material
Cast aluminium · Safety glass
Pure aluminium reflector surface
Optical silicone lens
BEGA Thermal Management®
protects the luminaires from overheating
due to excessive ambient temperatures
Controllable
on/off · DALI
Lamps
BEGA LED module
LED colour temperature
3000 K
Luminaire colour
BEGA Unidure®

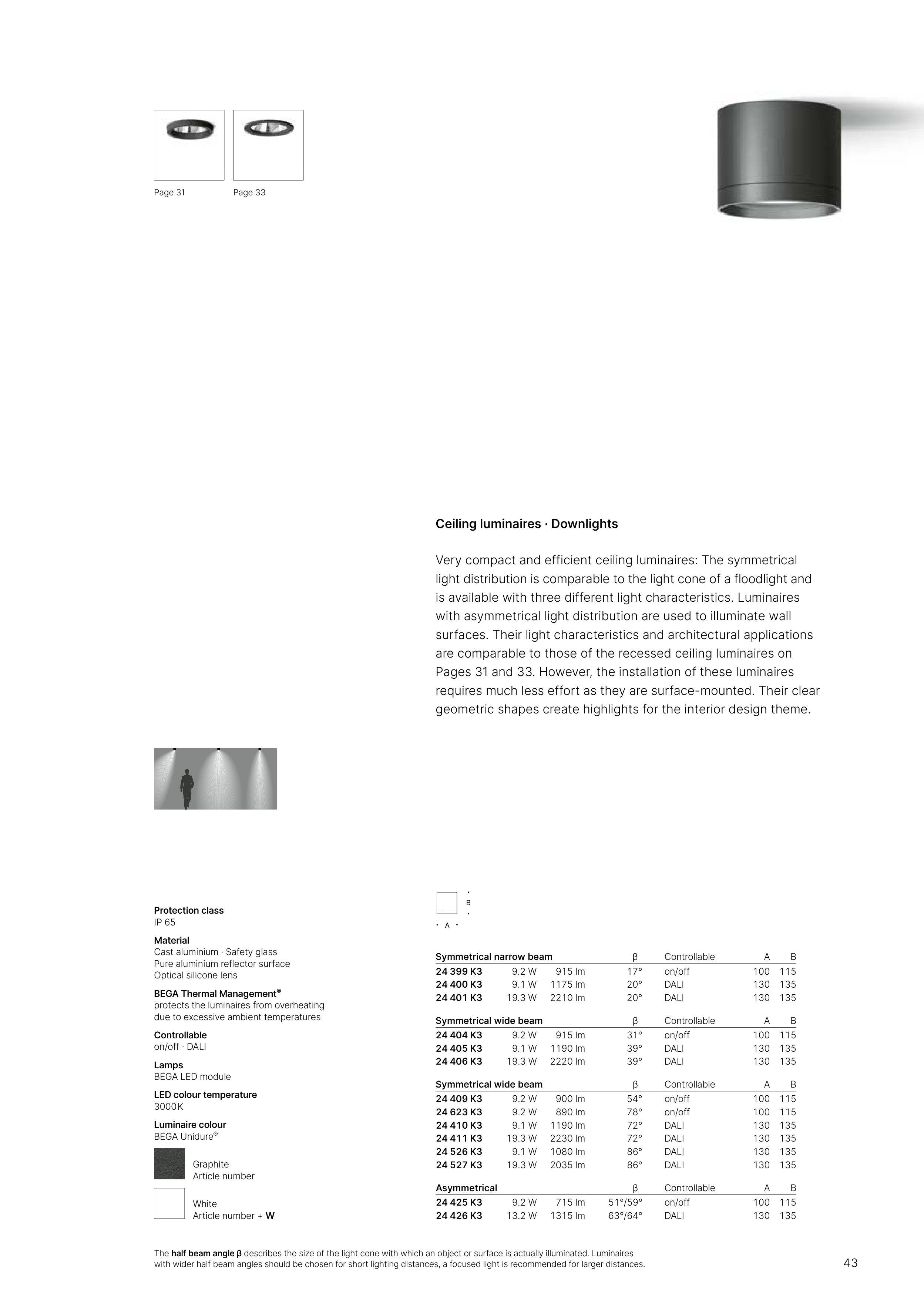

Ceiling luminaires · Downlights
Very compact and efficient ceiling luminaires: The symmetrical
light distribution is comparable to the light cone of a floodlight and
is available with three different light characteristics. Luminaires
with asymmetrical light distribution are used to illuminate wall
surfaces. Their light characteristics and architectural applications
are comparable to those of the recessed ceiling luminaires on
Pages 31 and 33. However, the installation of these luminaires
requires much less effort as they are surface-mounted. Their clear
geometric shapes create highlights for the interior design theme.
Graphite
Article number
White
Article number + W
Page 31
Page 33
The half beam angle β describes the size of the light cone with which an object or surface is actually illuminated. Luminaires
with wider half beam angles should be chosen for short lighting distances, a focused light is recommended for larger distances.
Symmetrical narrow beam
β
Controllable
A
B
24 399 K3
9.2 W
915 lm
17°
on/off
100
115
24 400 K3
9.1 W
1175 lm
20°
DALI
130
135
24 401 K3
19.3 W
2210 lm
20°
DALI
130
135
Symmetrical wide beam
β
Controllable
A
B
24 404 K3
9.2 W
915 lm
31°
on/off
100
115
24 405 K3
9.1 W
1190 lm
39°
DALI
130
135
24 406 K3
19.3 W
2220 lm
39°
DALI
130
135
Symmetrical wide beam
β
Controllable
A
B
24 409 K3
9.2 W
900 lm
54°
on/off
100
115
24 623 K3
9.2 W
890 lm
78°
on/off
100
115
24 410 K3
9.1 W
1190 lm
72°
DALI
130
135
24 411 K3
19.3 W
2230 lm
72°
DALI
130
135
24 526 K3
9.1 W
1080 lm
86°
DALI
130
135
24 527 K3
19.3 W
2035 lm
86°
DALI
130
135
Asymmetrical
β
Controllable
A
B
24 425 K3
9.2 W
715 lm
51°/59°
on/off
100
115
24 426 K3
13.2 W
1315 lm
63°/64°
DALI
130
135
43
