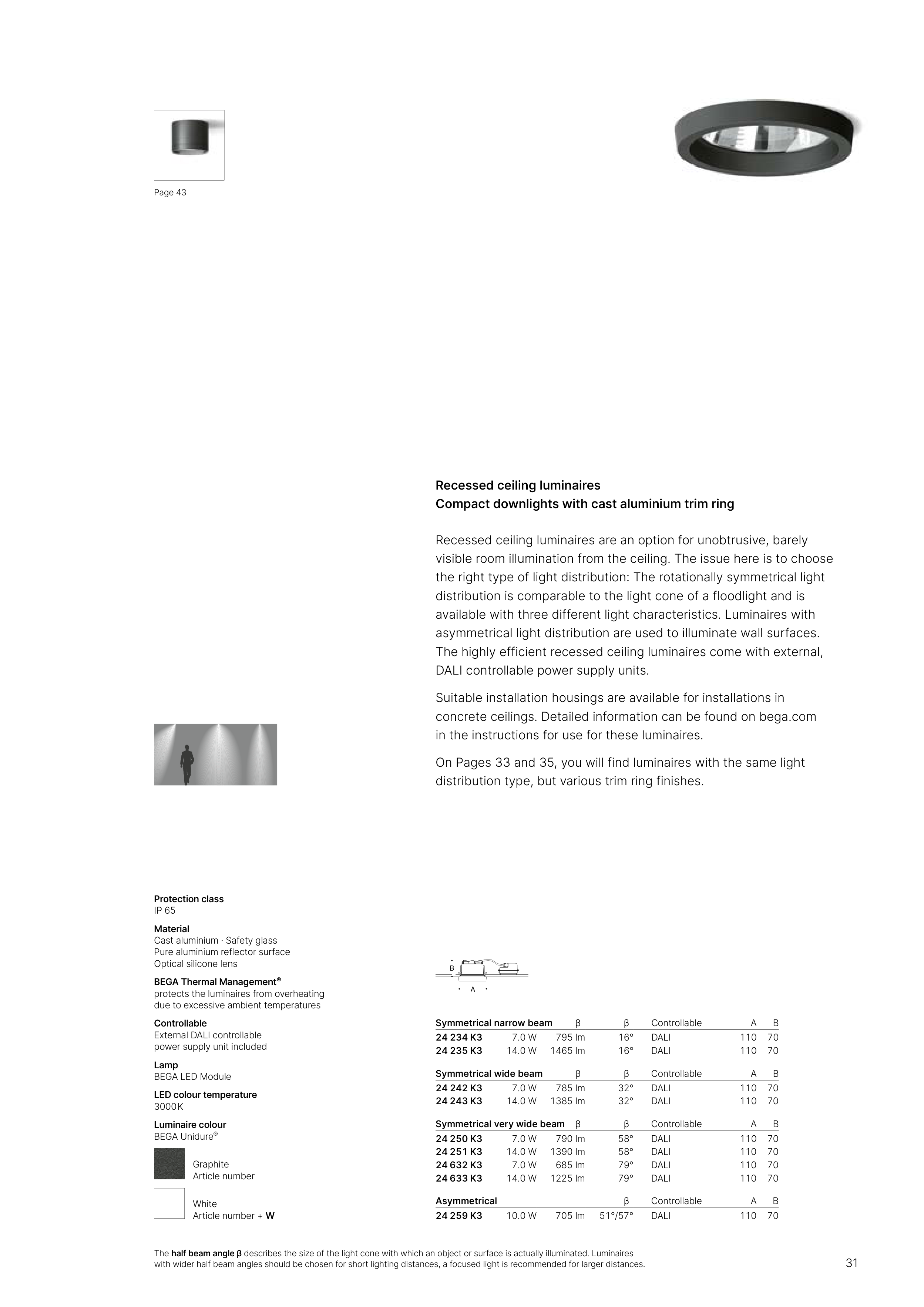

Recessed ceiling luminaires
Compact downlights with cast aluminium trim ring
Recessed ceiling luminaires are an option for unobtrusive, barely
visible room illumination from the ceiling. The issue here is to choose
the right type of light distribution: The rotationally symmetrical light
distribution is comparable to the light cone of a floodlight and is
available with three different light characteristics. Luminaires with
asymmetrical light distribution are used to illuminate wall surfaces.
The highly efficient recessed ceiling luminaires come with external,
DALI controllable power supply units.
Suitable installation housings are available for installations in
concrete ceilings. Detailed information can be found on bega.com
in the instructions for use for these luminaires.
On Pages 33 and 35, you will find luminaires with the same light
distribution type, but various trim ring finishes.
Protection class
IP 65
Material
Cast aluminium · Safety glass
Pure aluminium reflector surface
Optical silicone lens
BEGA Thermal Management®
protects the luminaires from overheating
due to excessive ambient temperatures
Controllable
External DALI controllable
power supply unit included
Lamp
BEGA LED Module
LED colour temperature
3000 K
Luminaire colour
BEGA Unidure®
Graphite
Article number
White
Article number + W
Page 43
The half beam angle β describes the size of the light cone with which an object or surface is actually illuminated. Luminaires
with wider half beam angles should be chosen for short lighting distances, a focused light is recommended for larger distances.
Symmetrical narrow beam
β
β
Controllable
A
B
24 234 K3
7.0 W
795 lm
16°
DALI
110
70
24 235 K3
14.0 W
1465 lm
16°
DALI
110
70
Symmetrical wide beam
β
β
Controllable
A
B
24 242 K3
7.0 W
785 lm
32°
DALI
110
70
24 243 K3
14.0 W
1385 lm
32°
DALI
110
70
Symmetrical very wide beam
β
β
Controllable
A
B
24 250 K3
7.0 W
790 lm
58°
DALI
110
70
24 251 K3
14.0 W
1390 lm
58°
DALI
110
70
24 632 K3
7.0 W
685 lm
79°
DALI
110
70
24 633 K3
14.0 W
1225 lm
79°
DALI
110
70
Asymmetrical
β
Controllable
A
B
24 259 K3
10.0 W
705 lm
51°/57°
DALI
110
70
