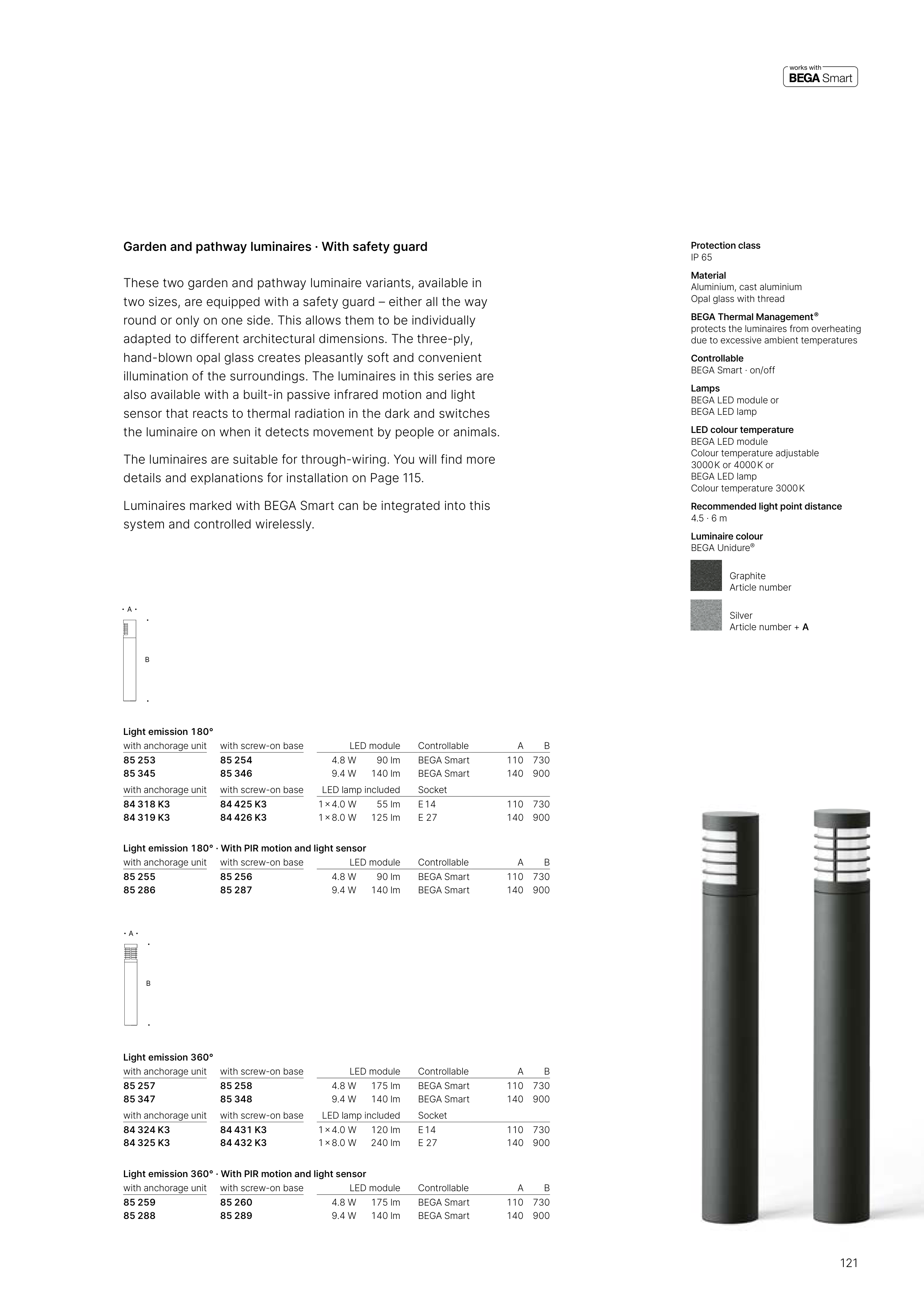

Garden and pathway luminaires · With safety guard
These two garden and pathway luminaire variants, available in
two sizes, are equipped with a safety guard – either all the way
round or only on one side. This allows them to be individually
adapted to different architectural dimensions. The three-ply,
hand-blown opal glass creates pleasantly soft and convenient
illumination of the surroundings. The luminaires in this series are
also available with a built-in passive infrared motion and light
sensor that reacts to thermal radiation in the dark and switches
the luminaire on when it detects movement by people or animals.
The luminaires are suitable for through-wiring. You will find more
details and explanations for installation on Page 115.
Luminaires marked with BEGA Smart can be integrated into this
system and controlled wirelessly.
Protection class
IP 65
Material
Aluminium, cast aluminium
Opal glass with thread
BEGA Thermal Management ®
protects the luminaires from overheating
due to excessive ambient temperatures
Controllable
BEGA Smart · on/off
Lamps
BEGA LED module or
BEGA LED lamp
LED colour temperature
BEGA LED module
Colour temperature adjustable
3000 K or 4000 K or
BEGA LED lamp
Colour temperature 3000 K
Recommended light point distance
4.5 · 6 m
Luminaire colour
BEGA Unidure®
Graphite
Article number
Silver
Article number + A
Light emission 360°
with anchorage unit
with screw-on base
LED module
Controllable
A
B
85 257
85 258
4.8 W
175 lm
BEGA Smart
110
730
85 347
85 348
9.4 W
140 lm
BEGA Smart
140
900
with anchorage unit
with screw-on base
LED lamp included
Socket
84 324 K3
84 431 K3
1 × 4.0 W
120 lm
E 14
110
730
84 325 K3
84 432 K3
1 × 8.0 W
240 lm
E 27
140
900
Light emission 360° · With PIR motion and light sensor
with anchorage unit
with screw-on base
LED module
Controllable
A
B
85 259
85 260
4.8 W
175 lm
BEGA Smart
110
730
85 288
85 289
9.4 W
140 lm
BEGA Smart
140
900
Light emission 180°
with anchorage unit
with screw-on base
LED module
Controllable
A
B
85 253
85 254
4.8 W
90 lm
BEGA Smart
110
730
85 345
85 346
9.4 W
140 lm
BEGA Smart
140
900
with anchorage unit
with screw-on base
LED lamp included
Socket
84 318 K3
84 425 K3
1 × 4.0 W
55 lm
E 14
110
730
84 319 K3
84 426 K3
1 × 8.0 W
125 lm
E 27
140
900
Light emission 180° · With PIR motion and light sensor
with anchorage unit
with screw-on base
LED module
Controllable
A
B
85 255
85 256
4.8 W
90 lm
BEGA Smart
110
730
85 286
85 287
9.4 W
140 lm
BEGA Smart
140
900
121
