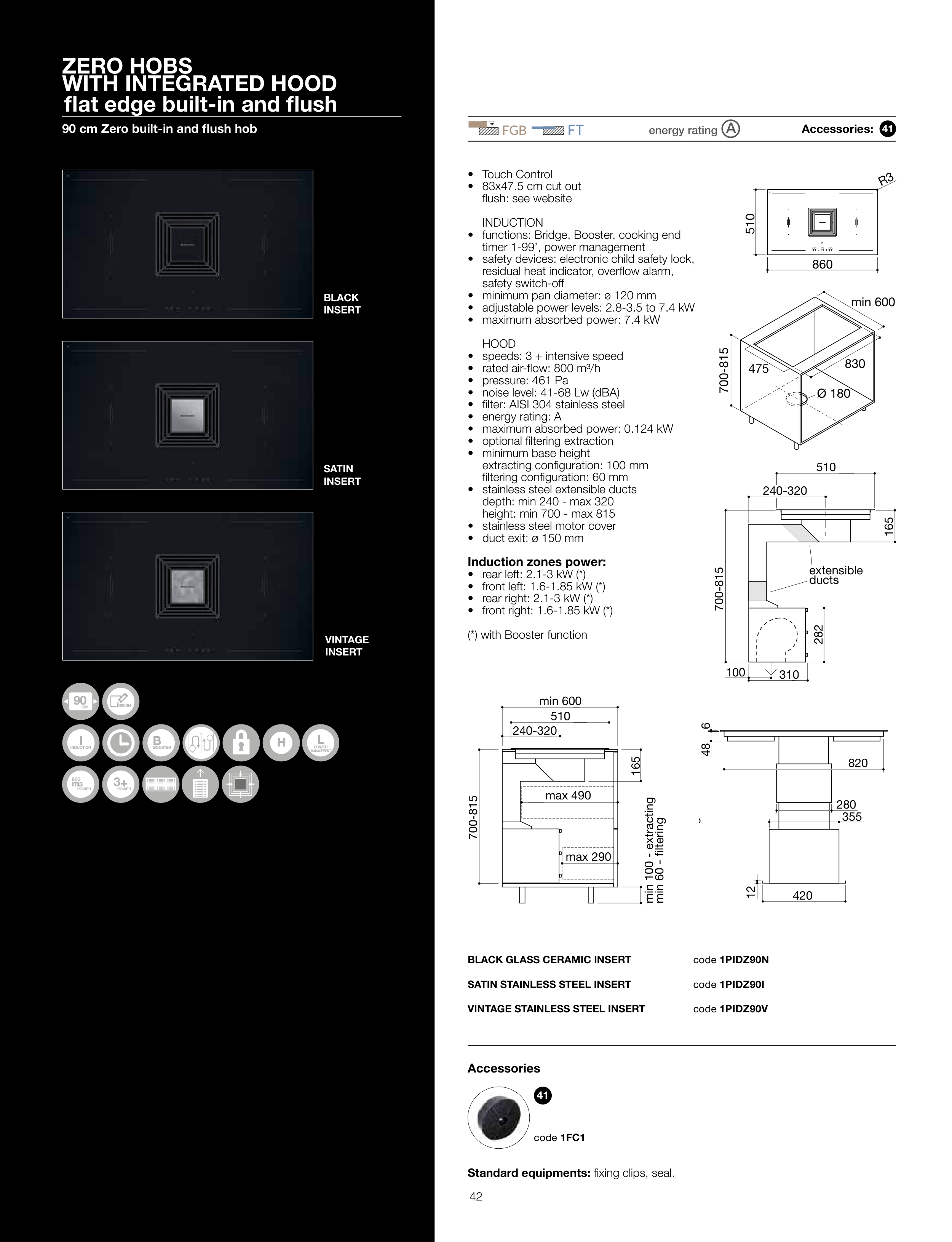

ZERO HOBS
WITH INTEGRATED HOOD
flat edge built-in and flush
90 cm Zero built-in and flush hob
code 1FC1
Standard equipments: fixing clips, seal.
SATIN
INSERT
VINTAGE
INSERT
BLACK
INSERT
Accessories
code 1PIDZ90N
code 1PIDZ90I
code 1PIDZ90V
BLACK GLASS CERAMIC INSERT
SATIN STAINLESS STEEL INSERT
VINTAGE STAINLESS STEEL INSERT
Accessories:
energy rating A
510
R3
860
min 60 - filtering
48
6
820
420
12
355
280
Ø 180
475
830
min 600
700-815
min 600
max 490
165
min 100 - extracting
min 60 - filtering
max 290
700-815
510
240-320
48
6
310
700-815
165
510
240-320
extensible
ducts
282
100
• Touch Control
• 83x47.5 cm cut out
flush: see website
INDUCTION
• functions: Bridge, Booster, cooking end
timer 1-99’, power management
• safety devices: electronic child safety lock,
residual heat indicator, overflow alarm,
safety switch-off
• minimum pan diameter: ø 120 mm
• adjustable power levels: 2.8-3.5 to 7.4 kW
• maximum absorbed power: 7.4 kW
HOOD
• speeds: 3 + intensive speed
• rated air-flow: 800 m³/h
• pressure: 461 Pa
• noise level: 41-68 Lw (dBA)
• filter: AISI 304 stainless steel
• energy rating: A
• maximum absorbed power: 0.124 kW
• optional filtering extraction
• minimum base height
extracting configuration: 100 mm
filtering configuration: 60 mm
• stainless steel extensible ducts
depth: min 240 - max 320
height: min 700 - max 815
• stainless steel motor cover
• duct exit: ø 150 mm
Induction zones power:
• rear left: 2.1-3 kW (*)
• front left: 1.6-1.85 kW (*)
• rear right: 2.1-3 kW (*)
• front right: 1.6-1.85 kW (*)
(*) with Booster function
