HTB-S3 / push side UL 30 S
HTB-S3 INVERSO / pull side UL 30 S
HTB-S8 / push side UL 20 S
HTB-S7 / push side
HTB-S9 / push side
**Guarnizione termoespandente | VI2001A000063 Patent
Barausse ha brevettato l’applicazione di guarnizioni
termoespandenti nascoste sotto l’impiallacciatura del telaio che
conferiscono pulizia estetica e non richiedono manutenzione.
**Thermo-expanding gasket | VI2001A000063 Patent
Barausse patented the application of intumescent strips hidden
under the frame veneer, confering an aesthetic elegance which
do not require any maintenance.
Coverage
Europe
Switzerland*
UNI EN 1634-1: 2014
UNI EN 1363-1: 2012
UNI EN ISO 717-1:2013
* VKF
Door model
HTB - S3
Technical specification
EI130
Resistance
30 min
Soundproof
30 / 37 dB
Smoke
Sa/Sm
Max. Dimensions (mm)
1200 X 2400
Door model
HTB - S4*
Technical specification
EI130
EI245
Resistance
30 min
45 min
Soundproof
30 / 37 dB
30 / 37 dB
Smoke
Sa/Sm
Sa/Sm
Max. Dimensions (mm)
1000 X 2700
900 X 2400
Door model
HTB - S7*
Technical specification
EI130
EI245
Resistance
30 min
45 min
Soundproof
41 dB
41 dB
Smoke
Sa/Sm
Sa/Sm
Max. Dimensions (mm)
1150 X 2700
1000 X 2700
Door model
HTB - S8
Technical specification
EI160
Resistance
60 min
Soundproof
30 / 38 dB
Smoke
Sa
Max. Dimensions (mm)
1100 X 2400
1100 + 1100 X 2400
Door model
HTB - S9
Technical specification
EI160
Resistance
60 min
Soundproof
41 dB
Smoke
Sa/Sm
Max. Dimensions (mm)
1250 X 2400
1250 X 2760
Coverage
USA
Canada
UL 10C
UL 1784
NFPA 252
ASTM E84
Door model
HTB - S8
Technical specification
UL 20 S
Resistance
20 min
Soundproof
30 / 38 dB
Smoke
Smoke & Draft
control
Max. Dimensions (mm)
900 X 2400
Door model
HTB - S3
Technical specification
UL 30 S
Resistance
30 min
Soundproof
30 / 37 dB
Smoke
Smoke & Draft
control
Max. Dimensions (mm)
1200 X 2400
Door model
HTB - S5
Technical specification
UL 45 S
Resistance
45 min
Soundproof
30 dB
Smoke
Smoke & Draft
control
Max. Dimensions (mm)
1000 X 2400
HTB-S5 INVERSO / push side UL 45 S
HTB-S4 INVERSO / push side
HTB-S4 / pull side
HTB-S5 / pull side UL 45 S
Telaio legno**
Wooden frame
Telaio alluminio
Aluminum frame
247
246
BARAUSSE
BARAUSSE | Doors | Wall Paneling | Partitions
Le porte tagliafuoco Barausse sono soluzioni
progettuali certificate e omologate secondo le
normative vigenti in Europa, in Svizzera e USA.

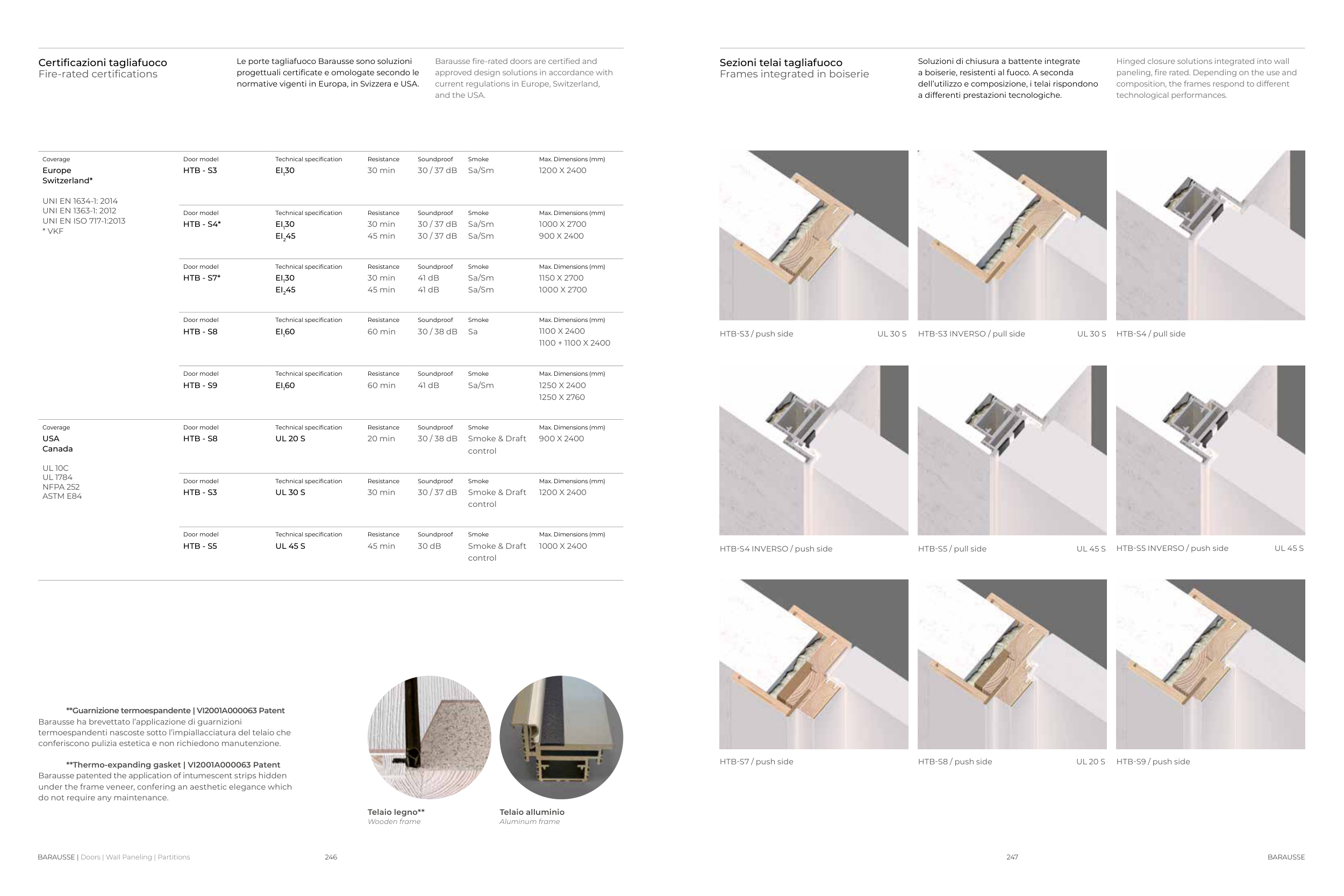

Certificazioni tagliafuoco
Fire-rated certifications
Barausse fire-rated doors are certified and
approved design solutions in accordance with
current regulations in Europe, Switzerland,
and the USA.
Soluzioni di chiusura a battente integrate
a boiserie, resistenti al fuoco. A seconda
dell’utilizzo e composizione, i telai rispondono
a differenti prestazioni tecnologiche.
Sezioni telai tagliafuoco
Frames integrated in boiserie
Hinged closure solutions integrated into wall
paneling, fire rated. Depending on the use and
composition, the frames respond to different
technological performances.
