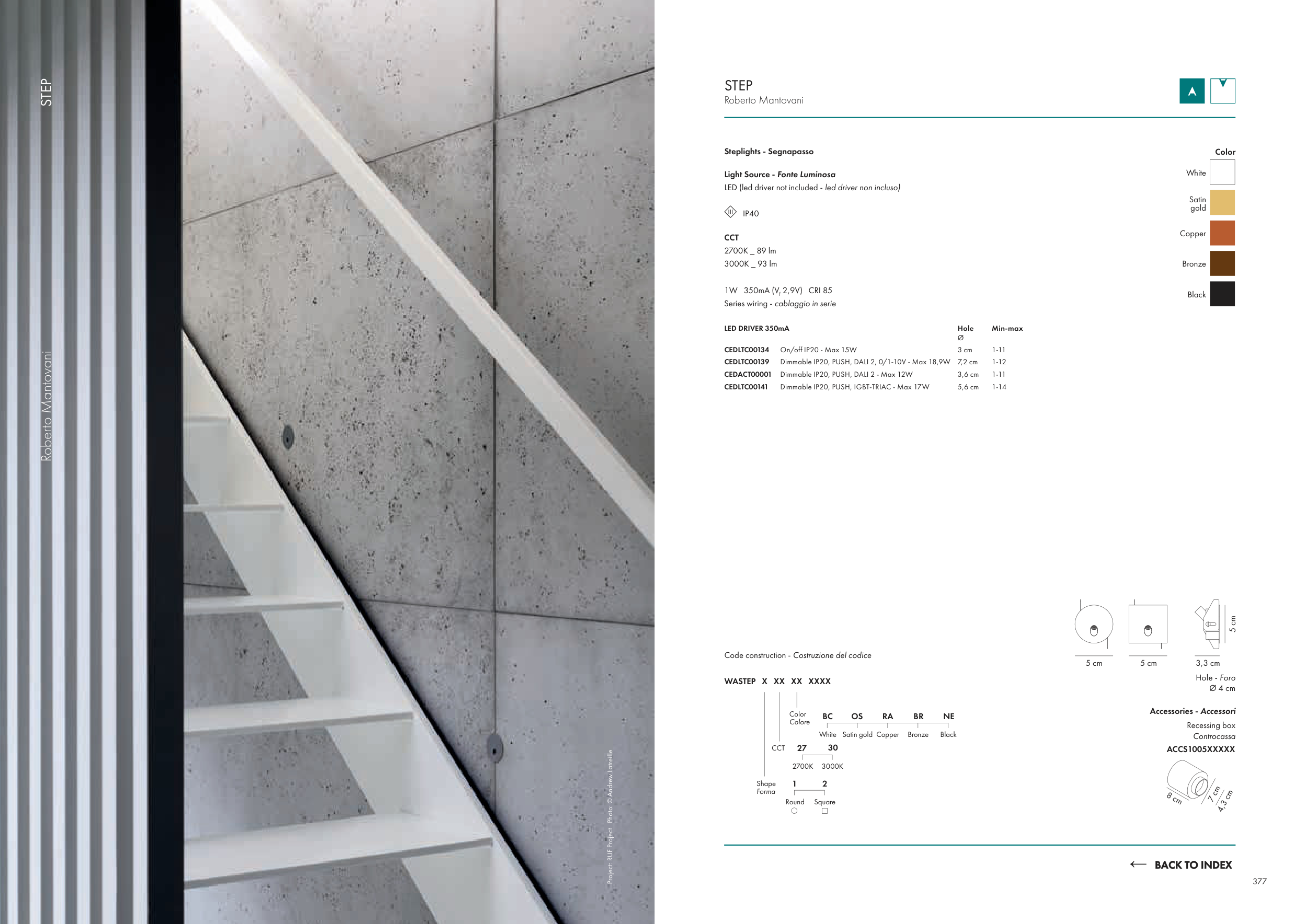

STEP
Roberto Mantovani
Project: RUF Project Photo: © Andrew Latreille
STEP
Roberto Mantovani
5 cm
5 cm
5 cm
3,3 cm
Hole - Foro
Ø 4 cm
Light Source - Fonte Luminosa
LED (led driver not included - led driver non incluso)
IP40
CCT
2700K _ 89 lm
3000K _ 93 lm
1W 350mA (Vf 2,9V) CRI 85
Series wiring - cablaggio in serie
LED DRIVER 350mA
Hole
Ø
Min-max
CEDLTC00134
On/off IP20 - Max 15W
3 cm
1-11
CEDLTC00139
Dimmable IP20, PUSH, DALI 2, 0/1-10V - Max 18,9W
7,2 cm
1-12
CEDACT00001
Dimmable IP20, PUSH, DALI 2 - Max 12W
3,6 cm
1-11
CEDLTC00141
Dimmable IP20, PUSH, IGBT-TRIAC - Max 17W
5,6 cm
1-14
Code construction - Costruzione del codice
WASTEP X XX XX XXXX
ACCS1005XXXXX
27
2700K
3000K
30
CCT
1
Round
Square
2
Shape
Forma
Color
Colore
7 cm
4,3 cm
8 cm
Accessories - Accessori
Recessing box
Controcassa
BC
White Satin gold Copper
Bronze
Black
OS
RA
BR
NE
Color
Satin
gold
White
Copper
Bronze
Black
Steplights - Segnapasso
377
