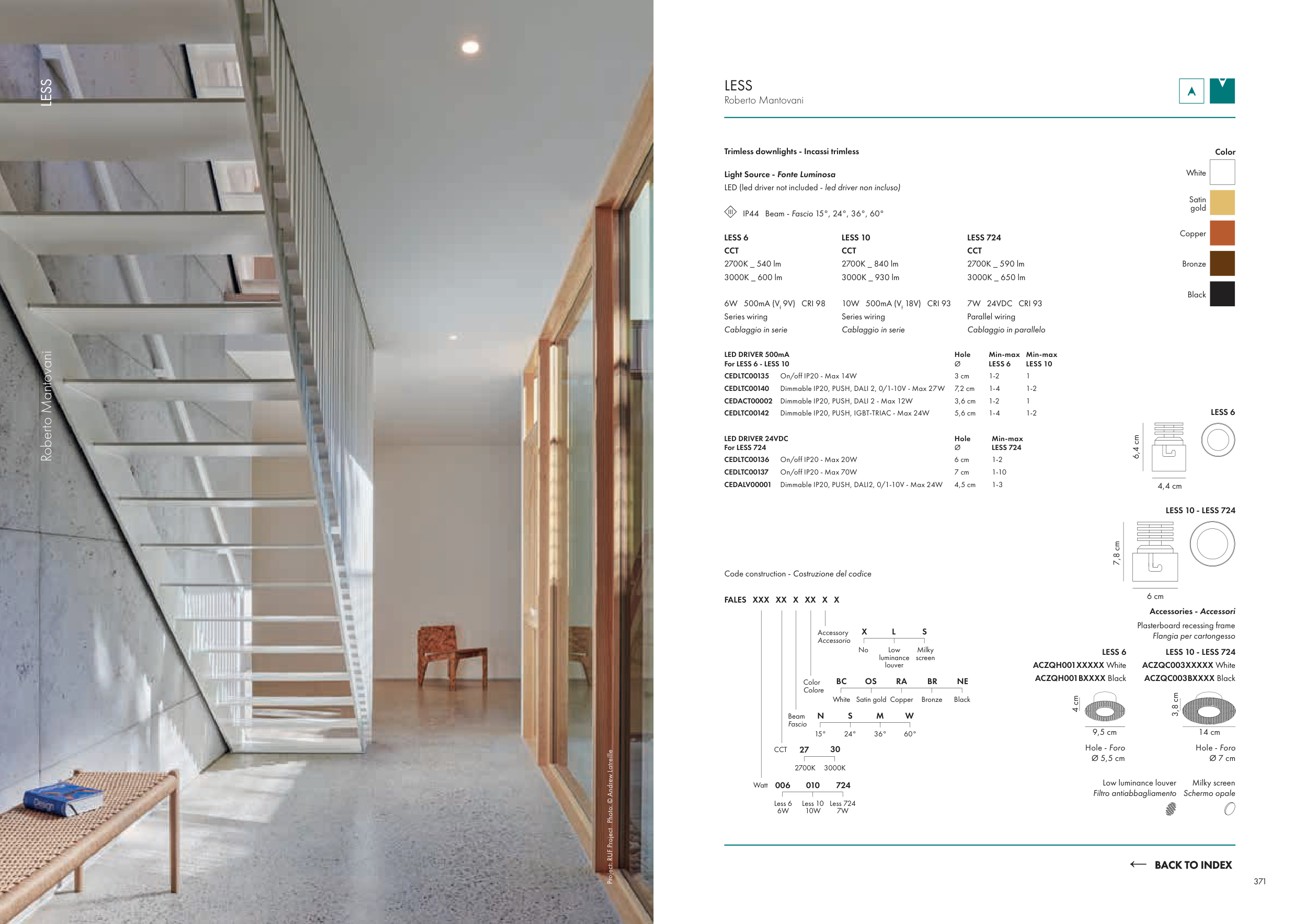

LESS
Roberto Mantovani
Project: RUF Project Photo: © Andrew Latreille
LESS
Roberto Mantovani
LESS 10
CCT
2700K _ 840 lm
3000K _ 930 lm
10W 500mA (Vf 18V) CRI 93
Series wiring
Cablaggio in serie
LESS 724
CCT
2700K _ 590 lm
3000K _ 650 lm
7W 24VDC CRI 93
Parallel wiring
Cablaggio in parallelo
Light Source - Fonte Luminosa
LED (led driver not included - led driver non incluso)
IP44 Beam - Fascio 15°, 24°, 36°, 60°
LESS 6
CCT
2700K _ 540 lm
3000K _ 600 lm
6W 500mA (Vf 9V) CRI 98
Series wiring
Cablaggio in serie
LED DRIVER 500mA
For LESS 6 - LESS 10
Hole
Ø
Min-max
LESS 6
Min-max
LESS 10
CEDLTC00135
On/off IP20 - Max 14W
3 cm
1-2
1
CEDLTC00140
Dimmable IP20, PUSH, DALI 2, 0/1-10V - Max 27W
7,2 cm
1-4
1-2
CEDACT00002
Dimmable IP20, PUSH, DALI 2 - Max 12W
3,6 cm
1-2
1
CEDLTC00142
Dimmable IP20, PUSH, IGBT-TRIAC - Max 24W
5,6 cm
1-4
1-2
LED DRIVER 24VDC
For LESS 724
Hole
Ø
Min-max
LESS 724
CEDLTC00136
On/off IP20 - Max 20W
6 cm
1-2
CEDLTC00137
On/off IP20 - Max 70W
7 cm
1-10
CEDALV00001
Dimmable IP20, PUSH, DALI2, 0/1-10V - Max 24W
4,5 cm
1-3
Code construction - Costruzione del codice
FALES XXX XX X XX X X
Beam
Fascio
N
24°
36°
60°
15°
S
M
W
27
2700K
3000K
30
CCT
006
Less 6
6W
Less 10
10W
Less 724
7W
010
724
Watt
Color
Colore
Accessory
Accessorio
X
No
Low
luminance
louver
Milky
screen
L
S
Accessories - Accessori
LESS 6
LESS 10 - LESS 724
4 cm
9,5 cm
Hole - Foro
Ø 5,5 cm
Foro
Foro
Hole - Foro
Ø 7 cm
14 cm
3,8 cm
Plasterboard recessing frame
Flangia per cartongesso
Milky screen
Schermo opale
Low luminance louver
Filtro antiabbagliamento
4,4 cm
6,4 cm
6 cm
7,8 cm
LESS 10 - LESS 724
ACZQC003XXXXX White
ACZQC003BXXXX Black
LESS 6
ACZQH001XXXXX White
ACZQH001BXXXX Black
BC
White Satin gold Copper
Bronze
Black
OS
RA
BR
NE
Color
Satin
gold
White
Copper
Bronze
Black
Trimless downlights - Incassi trimless
371
