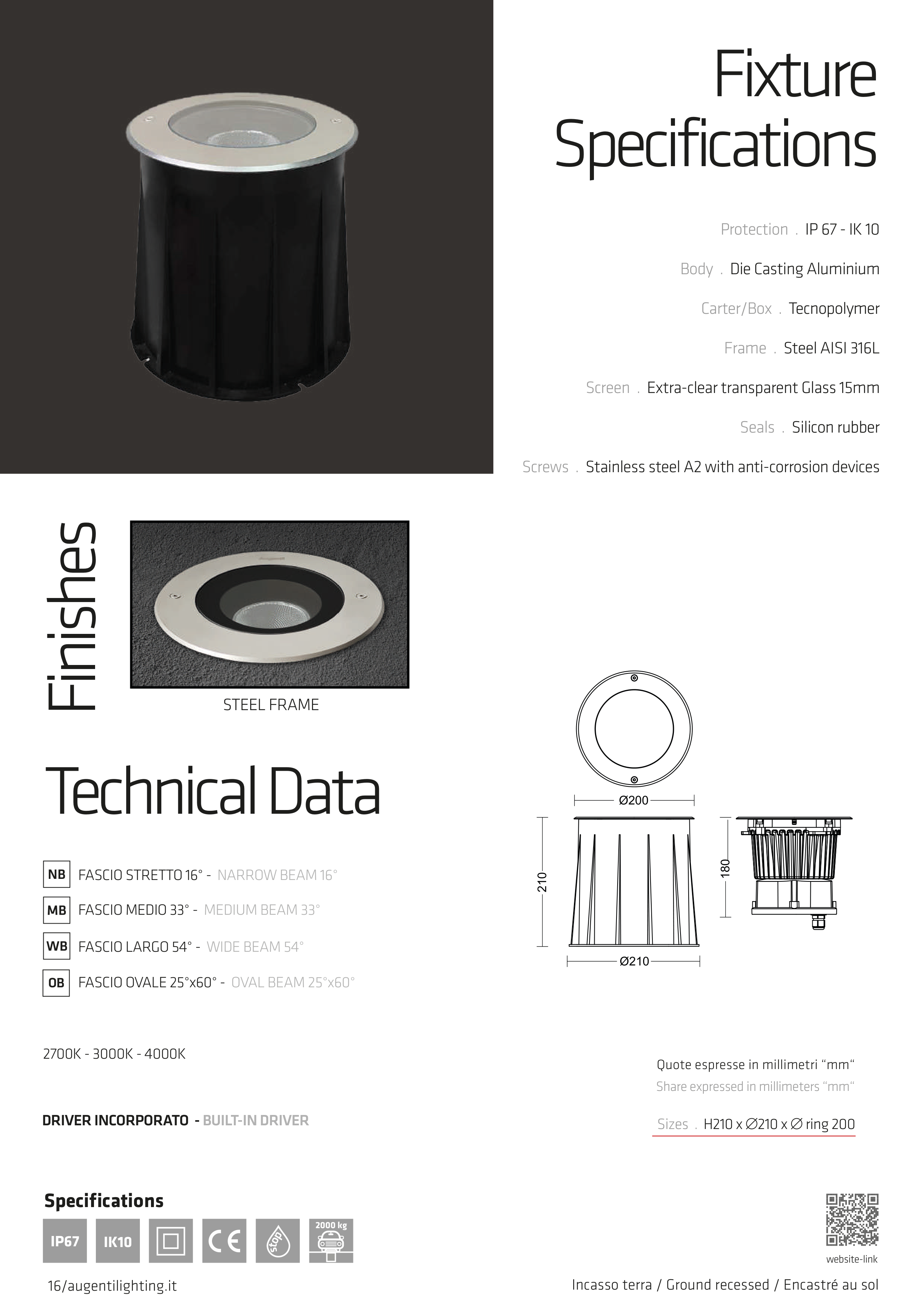

Fixture
Specifications
Finishes
Technical Data
Protection . IP 67 - IK 10
Body . Die Casting Aluminium
Carter/Box . Tecnopolymer
Frame . Steel AISI 316L
Screen . Extra-clear transparent Glass 15mm
Seals . Silicon rubber
Screws . Stainless steel A2 with anti-corrosion devices
Quote espresse in millimetri “mm“
Share expressed in millimeters “mm“
STEEL FRAME
FASCIO STRETTO 16° - NARROW BEAM 16°
FASCIO MEDIO 33° - MEDIUM BEAM 33°
FASCIO LARGO 54° - WIDE BEAM 54°
FASCIO OVALE 25°x60° - OVAL BEAM 25°x60°
DRIVER INCORPORATO - BUILT-IN DRIVER
Ø210
210
180
Ø200
Sizes . H210 x ∅210 x ∅ ring 200
O
2700K - 3000K - 4000K
website-link
Specifications
IP67
IK10
16/augentilighting.it
Incasso terra / Ground recessed / Encastré au sol
2000 kg
